Specifications
Asphalt Mixersoutput40-480t/h
oil burner;5.5-7kg/t
Asphalt Mixers over 20 years
ISO9001,ISO14001,CE,Gost
Asphalt Mixers
Zhengzhou Dayu Machinery Co.,Ltd is a professional construction machinery manufacturer for Asphalt Mixers over 20 years.Top 10 of China.
Dayu Asphalt Mixers have three main groups
Batch Asphalt Mixers
Drum Asphalt Mixers

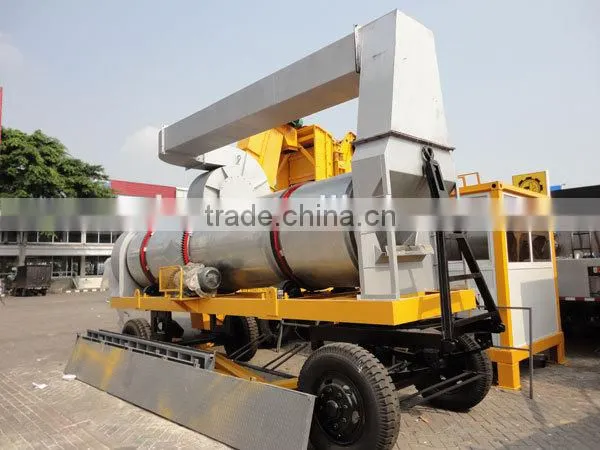

Mobile Asphalt Mixers

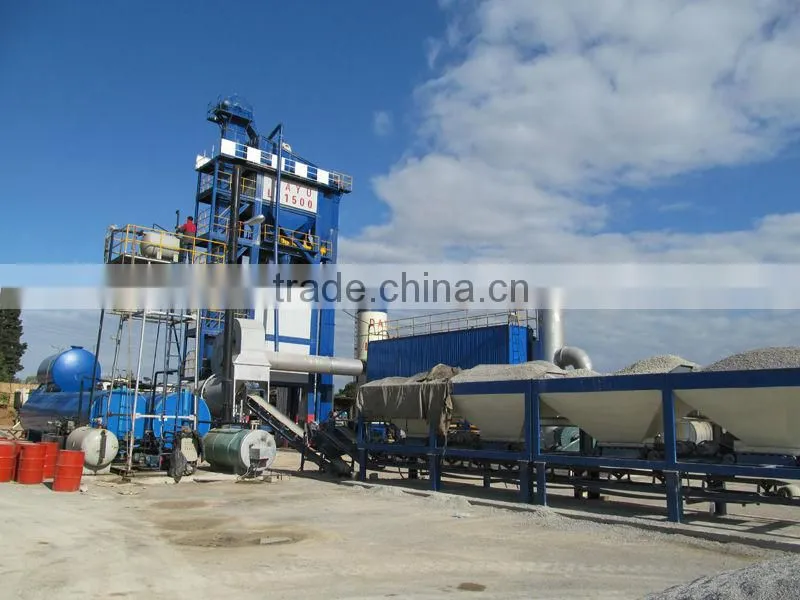

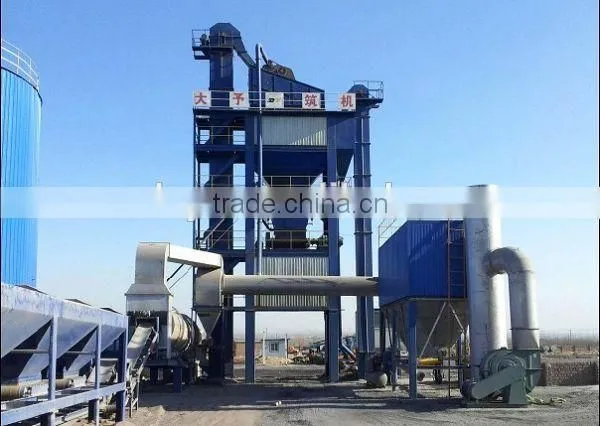

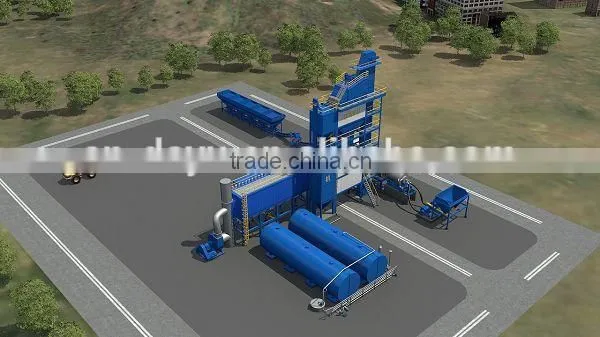

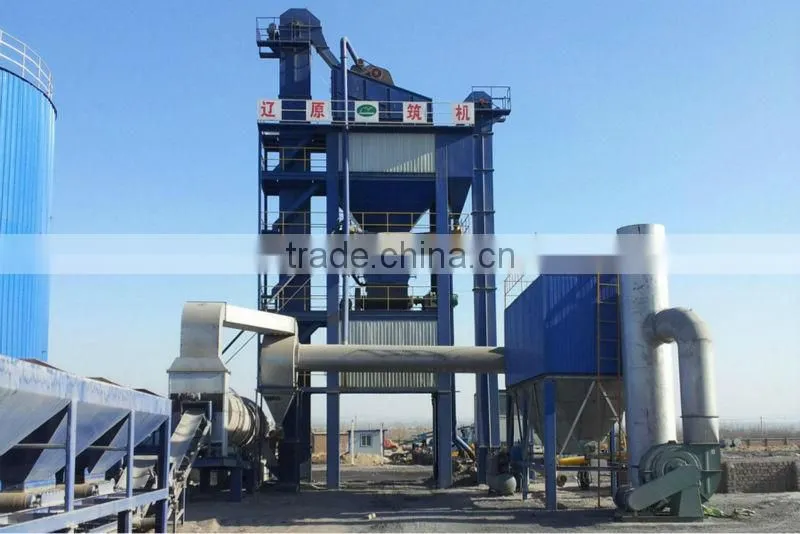

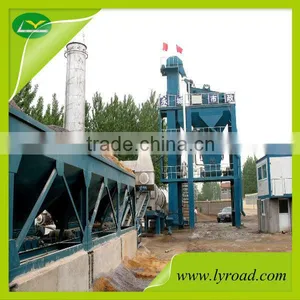

Batch Asphalt Mixers
Batch Asphalt Mixers mainly including burning system, vibrating screen system, cold aggregate supply system, electric control system and drying drum.
Batch Asphalt Mixers is one of the most popular products of Dayu for the high efficiency and excellent quality.

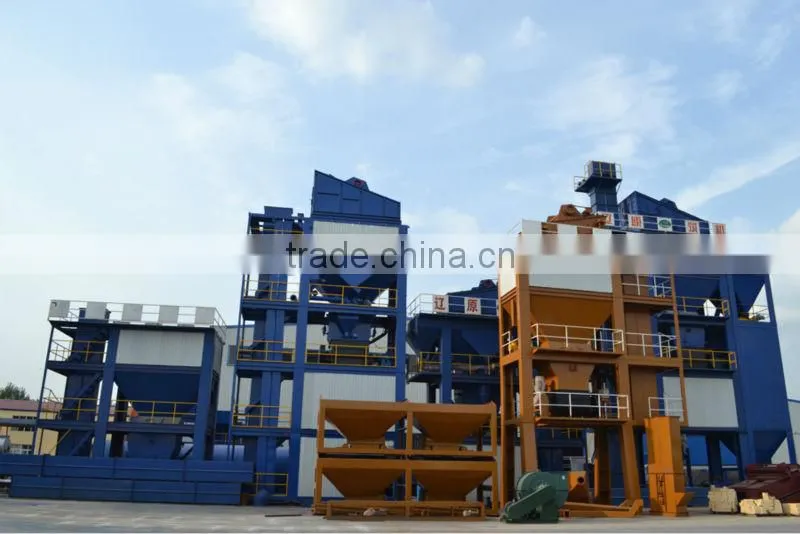

Both the integrated storage bins (HLB Series) and separated storage bins (LB Series) fall into the general category of large asphalt plants for the different location of the finished storage bins. Production capacity ranges at 40~480T/H.
| Type | Plant Capacity (standard conditions): |
Mixer Capacity: |
Consumption (standard conditions): |
Measurement accuracy | |
| Fuel Oil | Fuel Coal | ||||
| LB500 | 40 t/h | 500 kg | 5.5-7 kg/t | 10kg/t | Aggregate: ±0.5% Powder: ±0.5% Asphalt: ±0.25% |
| LB700 | 56 t/h | 700 kg | 5.5-7 kg/t | 10kg/t | |
| LB800 | 64 t/h | 800 kg | 5.5-7 kg/t | 10kg/t | |
| LB1000 | 80 t/h | 1000 kg | 5.5-7 kg/t | 10kg/t | |
| LB1100 | 90 t/h | 1100 kg | 5.5-7 kg/t | 10kg/t | |
| LB1200 | 100 t/h | 1200 kg | 5.5-7 kg/t | 10kg/t | |
| LB1250 | 105 t/h | 1250 kg | 5.5-7 kg/t | 10kg/t | |
| LB1500 | 120 t/h | 1500 kg | 5.5-7 kg/t | 10kg/t | |
| LB1600 | 130 t/h | 1600 kg | 5.5-7 kg/t | 10kg/t | |
| LB2000 | 160 t/h | 2000 kg | 5.5-7 kg/t | 10kg/t | |
| LB2200 | 175 t/h | 2200 kg | 5.5-7 kg/t | 10kg/t | |
| LB2500 | 200 t/h | 2500 kg | 5.5-7 kg/t | 10kg/t | |
| LB3000 | 240 t/h | 3000 kg | 5.5-7 kg/t | 10kg/t | |

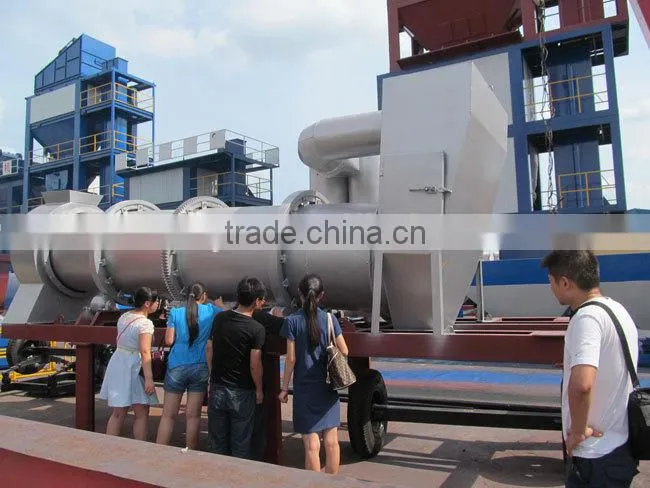

Drum Asphalt Mixers

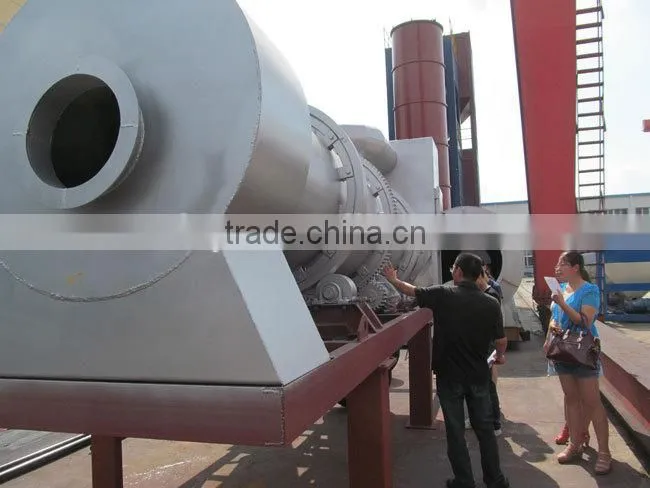

DHB asphalt drum mixing plant mainly including: cold aggregate supply system, burner, drying and mixing drum, water dust catcher, bitumen supply system, electrical control system.
Drum mixing type asphalt plant, to continuously produce asphalt mixture.
Burning System: I. Oil burner; II. Gas burner; III. Coal burner; IV. Oil & Gas dual purpose burner.
Main Parameters of Drum Asphalt Mixers DHB Series
| Model | Productivity(t/h) | Weighing Accuracy | Total Power(kW) | Coal Consumption(kg/t) | |
| Aggregate | Asphalt | ||||
| DHB-20 | 20 | ±1.5% | ±1% | 40 | 10 |
| DHB-40 | 40 | ±1.5% | ±1% | 75 | 10-13 |
| DHB-60 | 60 | ±1.5% | ±1% | 128 | 10-13 |
| DHB-80 | 80 | ±1.5% | ±1% | 165 | 10-13 |
| DHB-100 | 100 | ±1.5% | ±1% | 200 | 10-13 |
Warranty Period : 12 months since delivery the machine .
More information can be get by contact with Zhengzhou Dayu Machinery Co.,Ltd.
