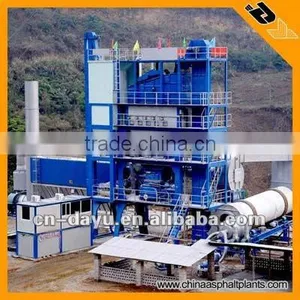

Dayu-LB Series Asphalt Batch Mix Plant (40-480t/h)
US$ 60,000 - 600,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
Dayu
Model Number:
LB
Payment & Shipping
Payment Methods:
Port of Shipment:
China Main Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Top 10 Asphalt Batch Mix Plant With Good FeedbackUS$ 60,000 - 600,000MOQ: 1 Set -
Asphalt Batch Mix PlantUS$ 1 - 2MOQ: 1 Set
-
Asphalt Plant Foundation MachineryUS$ 60,000 - 200,000MOQ: 1 Set
-
Bitumen Mix Plant In ChinaUS$ 60,000 - 600,000MOQ: 1 Set
-
Dayu Asphalt Plant For SaleUS$ 60,000 - 600,000MOQ: 1 Set
Place of Origin
Henan, China
Brand Name
Dayu
Model Number
LB
Warranty
12 months
Specifications
Asphalt Batch Mix plantcap;40-480t/h
oil burner;5.5-7kg/t
Asphalt Batch Mix Plant over 20 years
ISO9001, ISO14001 ,CE,Gost
Dayu-LB Series Asphalt Batch Mix plant (40-480t/h)
Zhengzhou Dayu Machinery Co.,Ltd is a professional construction machinery manufacturer for asphalt plant over 20 years.
Dayu products range:
1,Asphalt Batch Mix plant
2,Asphalt Drum Mix plant
3,Mobile Asphalt Plant
Main Parameters of LB Asphalt Batch Mix Plant
| Type | Plant Capacity (standard conditions): |
Mixer Capacity: |
Consumption (standard conditions): |
Measurement accuracy | |
| Fuel Oil | Fuel Coal | ||||
| LB500 | 40 t/h | 500 kg | 5.5-7 kg/t | 10kg/t | Aggregate: ±0.5% Powder: ±0.5% Asphalt: ±0.25% |
| LB700 | 56 t/h | 700 kg | 5.5-7 kg/t | 10kg/t | |
| LB800 | 64 t/h | 800 kg | 5.5-7 kg/t | 10kg/t | |
| LB1000 | 80 t/h | 1000 kg | 5.5-7 kg/t | 10kg/t | |
| LB1100 | 90 t/h | 1100 kg | 5.5-7 kg/t | 10kg/t | |
| LB1200 | 100 t/h | 1200 kg | 5.5-7 kg/t | 10kg/t | |
| LB1250 | 105 t/h | 1250 kg | 5.5-7 kg/t | 10kg/t | |
| LB1500 | 120 t/h | 1500 kg | 5.5-7 kg/t | 10kg/t | |
| LB1600 | 130 t/h | 1600 kg | 5.5-7 kg/t | 10kg/t | |
| LB2000 | 160 t/h | 2000 kg | 5.5-7 kg/t | 10kg/t | |
| LB2200 | 175 t/h | 2200 kg | 5.5-7 kg/t | 10kg/t | |
| LB2500 | 200 t/h | 2500 kg | 5.5-7 kg/t | 10kg/t | |
| LB3000 | 240 t/h | 3000 kg | 5.5-7 kg/t | 10kg/t | |

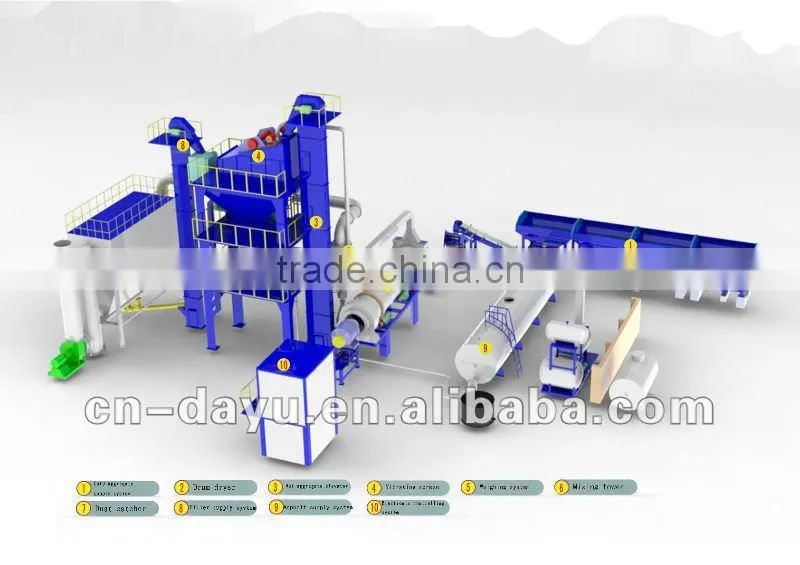

Stucture of Dayu LB Series Asphalt Batch Mix Plant
Burning system |
| 1.International brand oil burner (could use both diesel and heavy oil), full automatic control. 2.The coal burning system which possesses independent intellectual property rights, help the customers reduce the production cost. |
| Vibrating screen system |
| 1.The screen mesh is made from manganese steel with high strength; convenient for replace and maintenance; 2.Driven by two motors which are installed onto the screen, exciting force will be coupling automatically; |
Cold aggregate supply system |
| 1.Aggregate supply system adopts 3+2 modularization structure and frequency conversion timing, making material delivery smooth. Without phenomenon such as block, obstruct and so on. 2.Frequency conversion timing with credible capability; modulerized design will be convenient for transport. |
Electrical control system |
| The advanced control interface, industrial monitoring system and international famous brand electrical elements compose the operation system, can realize data management, input or store recipe, adjust time, material weighing correcting, failure self-diagnosis; failure alarming, interlock protection, store and print production reports etc. |
Drying drum |
| 1.Outside the drying drum is covered with a 50mm heat preservation structure, 2.Professional designed lifting blades inside the drum, which can promote thermal efficiency. 3.Temperature detecting device is equipment beside the outlet of the drum |
Dayu DHB series asphalt drum mix plant
| Model | Productivity(t/h) | Weighing Accuracy | Total Power(kW) | Coal Consumption(kg/t) | |
| Aggregate | Asphalt | ||||
| DHB-20 | 20 | ±1.5% | ±1% | 40 | 10 |
| DHB-40 | 40 | ±1.5% | ±1% | 75 | 10-13 |
| DHB-60 | 60 | ±1.5% | ±1% | 128 | 10-13 |
| DHB-80 | 80 | ±1.5% | ±1% | 165 | 10-13 |
| DHB-100 | 100 | ±1.5% | ±1% | 200 | 10-13 |

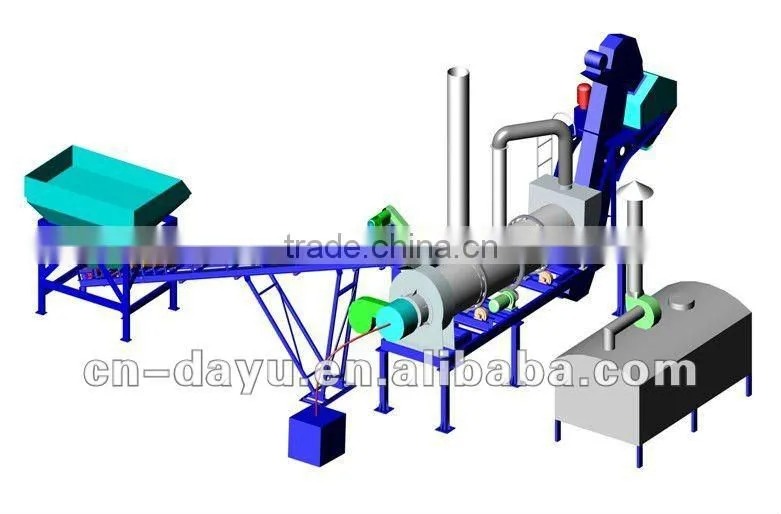

Mobile Type DHB series asphalt drum mix plant
Stationary type DHB series asphalt drum mix plant
Warranty Period : 12 months since delivery the machine .
More information can be get by contact with Zhengzhou Dayu Machinery Co.,Ltd.
