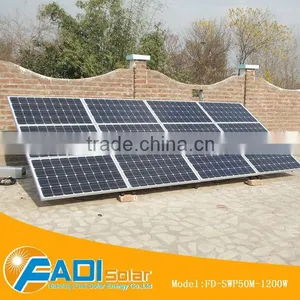

DC Solar Pump System for Drinking (1200W,50M Head)

Name: DC Solar Pump System for Drinking (1200W,50M Head)
Brand: Solar Pump System,FADI,OEM
SKU: 134510059

US$ 500 - 5,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Solar Pump System,FADI,OEM

Model Number:

FD-SWP50M-1200W

Haining Fadi Solar Energy Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Solar Pump System,FADI,OEM

Model Number FD-SWP50M-1200W

Theory Centrifugal Pump

Structure Multistage Pump

Usage Water

Power Electric

Standard or Nonstandard Standard

Fuel Other, solar

Pressure High Pressure

Application Submersible

Solar pump system

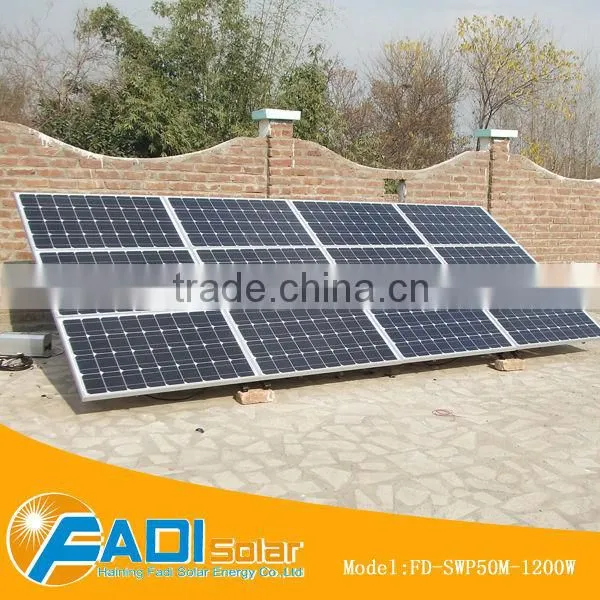

Model:FD-SWP50M-1200W.

Solar pump system features:

.Structure, high-lift, noiseless, pollution-free;

.Complete electrical protecting controller device, against under-voltage, over-voltage, over-flow, over-load, waterless, etc;

.Automatically recovery;

.Control water height;

.Easy installation, maintenance-free, safe, reliable, energy-saving, efficient;

.Photovoltaic water pump, Permanent magnet brushless motor, Maximum power point tracking(MPPT)

.Ambient temperature -20°C-50°C

.Service life over 10 years

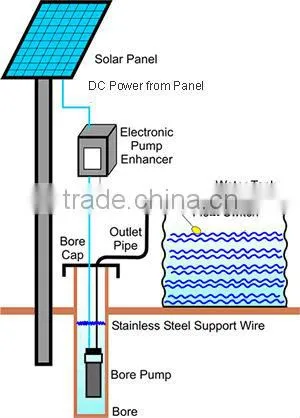

Solar water pump system working principle:

Solar pump system data

Model	FD-SWP50M-1200W
Max flow	3.4M³/h (340L/h)
Max head	50M
Voltage	96V
Power	1200W mono panel (12pcsx100w)
Pump diameter	4inch
Outlet	1/2 inch
G.W.	16kgs
warranty	Two years
Solar pump system material
Pump casing	Stainless steel
Screw	Stainless steel
Shaft core	Stainless steel
Coupling	Stainless steel
Connecting	Copper alloy
Base	Copper alloy
Cable	Rubber
Water level sensor	Rubber + Plastic
Solar pump system compents
Solar pump	1pc
Controller box	1pc MPPT
Screw	1pc
Cable connector	4pcs
Water level sensor	4pcs
Rope	1pc
Manual	1pc
Solar pump system working condition
Liquid	Non-corrosive water
Volume ration of sand content	Less than 0.1%
Size of sand content	Less than 0.2mm
Max medium temperature	Less than 40°C
PH	6.5-8.5
Situation	Be immersed in water
Application	Pumping water from deep well, gardening, fountain and etc
