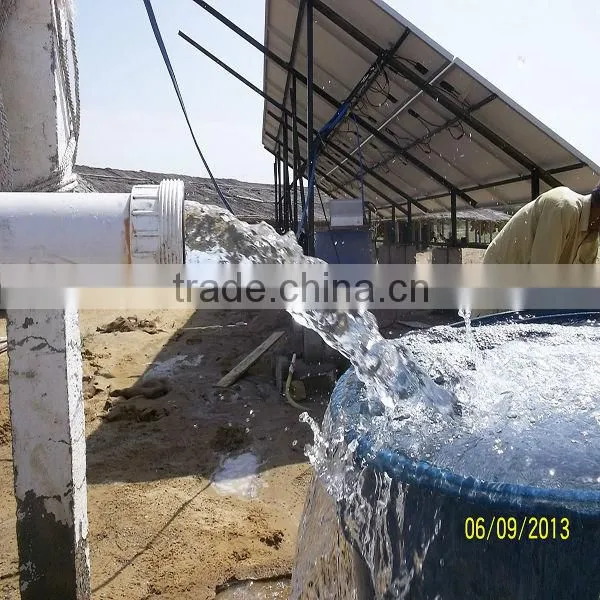

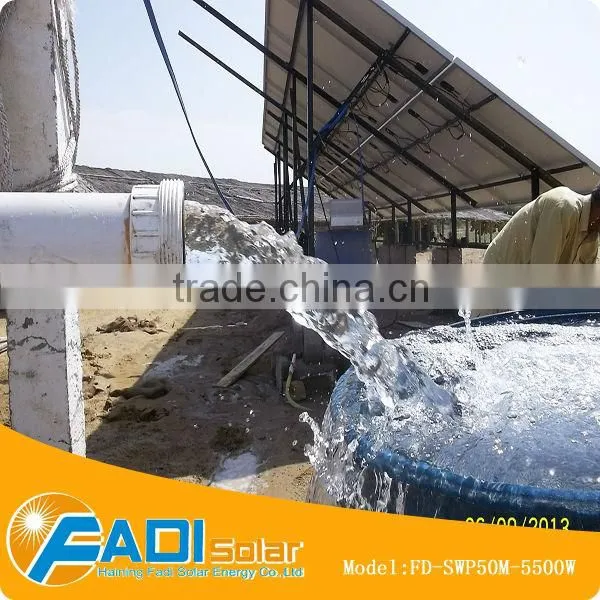

DC Solar Pump for Irrigation (5500W,50M Head)

Name: DC Solar Pump for Irrigation (5500W,50M Head)
Brand: Solar Pump,FADI,OEM
SKU: 134510065

US$ 500 - 2,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Solar Pump,FADI,OEM

Model Number:

FD-SWP50M-5500W

Haining Fadi Solar Energy Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Solar Pump,FADI,OEM

Model Number FD-SWP50M-5500W

Theory Centrifugal Pump

Structure Multistage Pump

Usage Water

Power Electric

Standard or Nonstandard Standard

Fuel Other, solar

Pressure High Pressure

Application Submersible

DC solar water pump system

Model:FD-SWP50M-5500W.

DC solar water pump system features:

.Structure, high-lift, noiseless, pollution-free;

.Complete electrical protecting controller device, against under-voltage, over-voltage, over-flow, over-load, waterless, etc;

.Automatically recovery;

.Control water height;

.Easy installation, maintenance-free, safe, reliable, energy-saving, efficient;

.Photovoltaic water pump, Permanent magnet brushless motor, Maximum power point tracking(MPPT)

.Ambient temperature -20°C-50°C

.Service life over 10 years

Solar water pump working principle:

DC Solar water pump system data

Model	FD-SWP50M-5500W
Max flow	18M³/h
Max head	50M
Voltage	96V

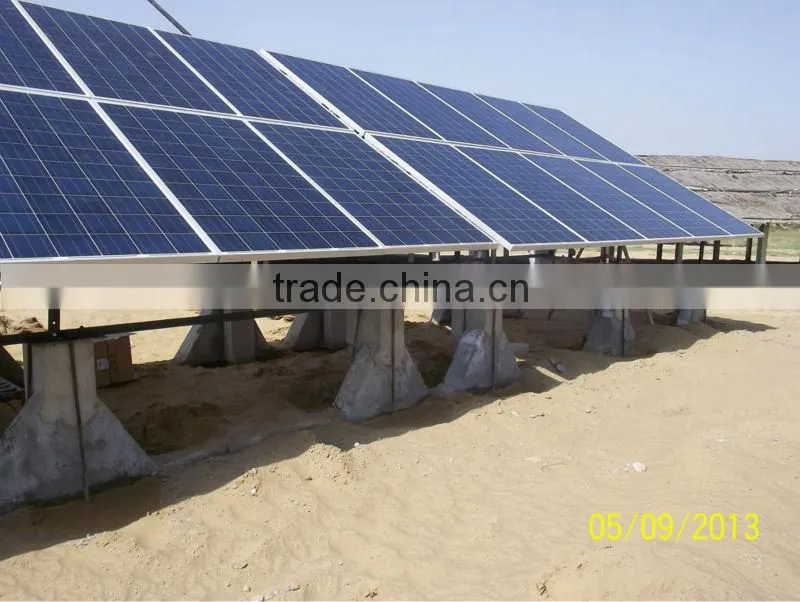

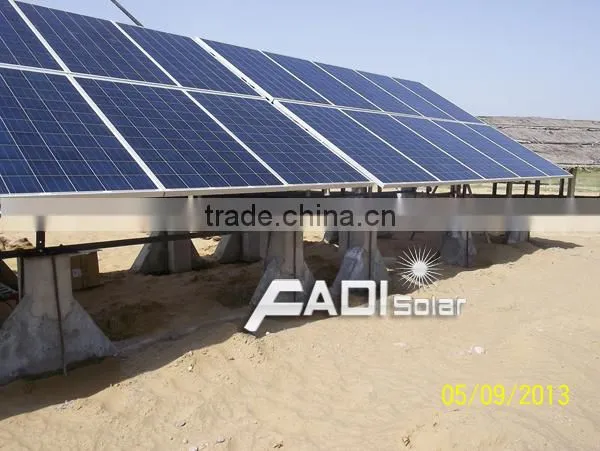

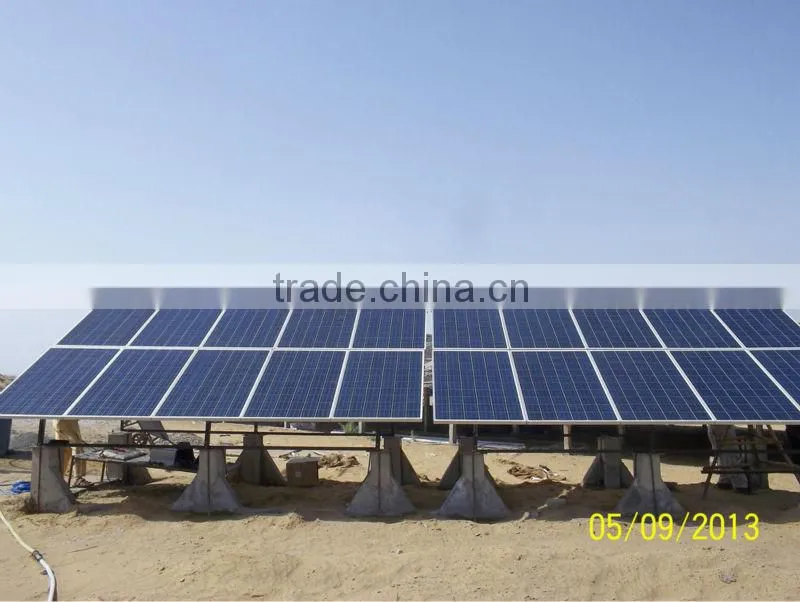

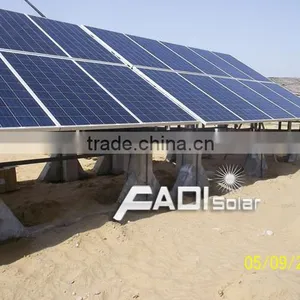

Power	5500W poly-crystalline panel (20pcsx275w)
Pump diameter	4 inch
Outlet	2 inch
G.W.	20 kgs
warranty	Two years
Solar pump
Pump casing	Stainless steel
Screw	Stainless steel
Shaft core	Stainless steel
Coupling	Stainless steel
Connecting	Copper alloy
Base	Copper alloy
Cable	Rubber
Water level sensor	Rubber + Plastic
Solar water pump compents
Solar pump	1pc
Controller box	1pc MPPT
Screw	1pc
Cable connector	4pcs
Water level sensor	4pcs
Rope	1pc
Manual	1pc
Submersible solar water pump working condition
Liquid	Non-corrosive water
Volume ration of sand content	Less than 0.1%
Size of sand content	Less than 0.2mm
Max medium temperature	Less than 40°C
PH	6.5-8.5
Situation	Be immersed in water

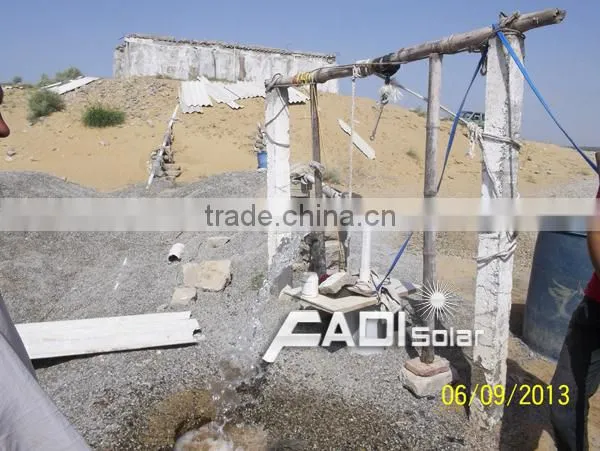

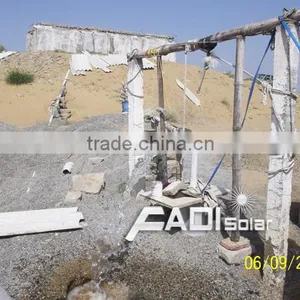

Application	Pumping water from deep well, gardening, fountain and etc
