Water Pump,Solar Power Submersible Water Pumps (5500W,20M Head)

Name: Water Pump,Solar Power Submersible Water Pumps (5500W,20M Head)
Brand: water pump,FADI,OEM
SKU: 134510067

US$ 2,000 - 3,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

water pump,FADI,OEM

Model Number:

FD-SWP20M-5500W

Haining Fadi Solar Energy Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name water pump,FADI,OEM

Model Number FD-SWP20M-5500W

Theory Centrifugal Pump

Structure Multistage Pump

Usage Water

Power Electric

Standard or Nonstandard Standard

Fuel Other, solar

Pressure High Pressure

Application Submersible

Water Pump

Model:FD-SWP20M-5500W.

Water pumps features

.Structure, high-lift, noiseless, pollution-free;

.Complete electrical protecting controller device, against under-voltage, over-voltage, over-flow, over-load, waterless, etc;

.Automatically recovery;

.Control water height;

.Easy installation, maintenance-free, safe, reliable, energy-saving, efficient;

.Photovoltaic water pump, Permanent magnet brushless motor, Maximum power point tracking(MPPT)

.Ambient temperature -20°C-50°C

.Service life over 10 years

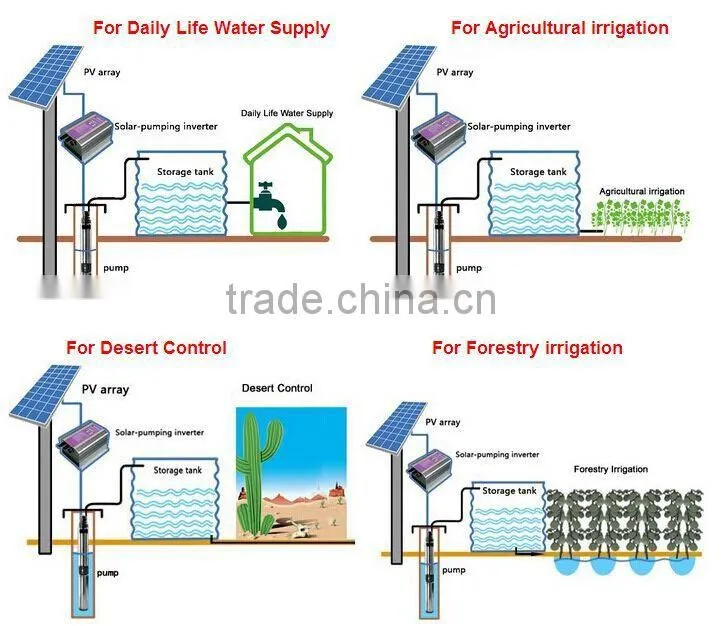

Solar water pump working principle:

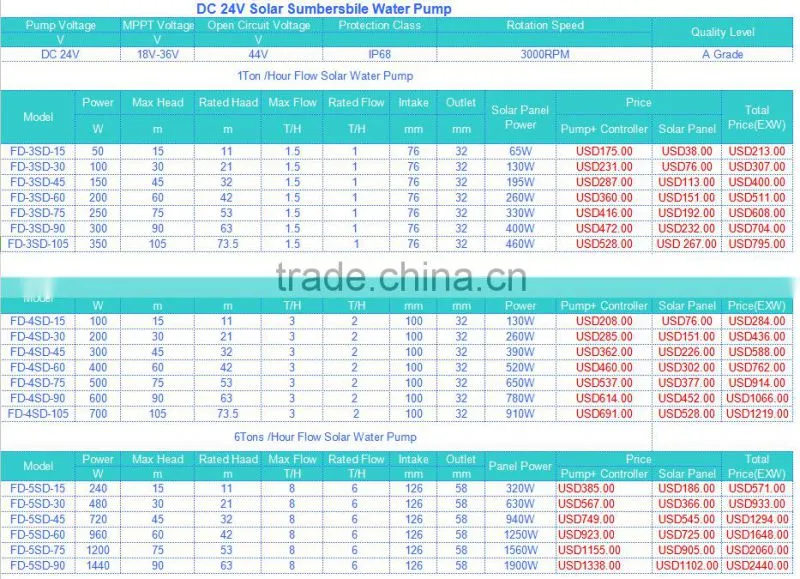

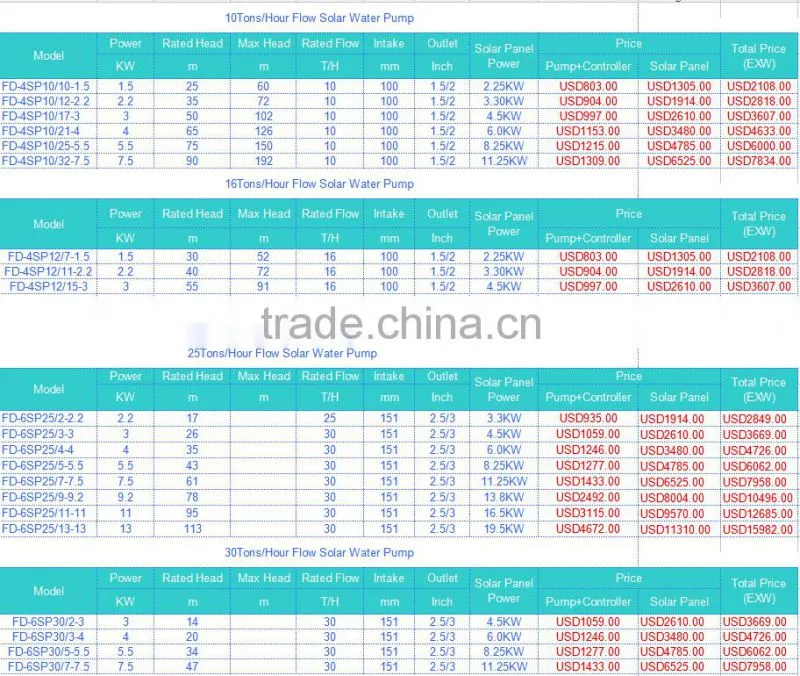

Water pumps data

Model	FD-SWP20M-5500W
Max flow	55M³/h (55000L/h)
Max head	20m
Voltage	540V

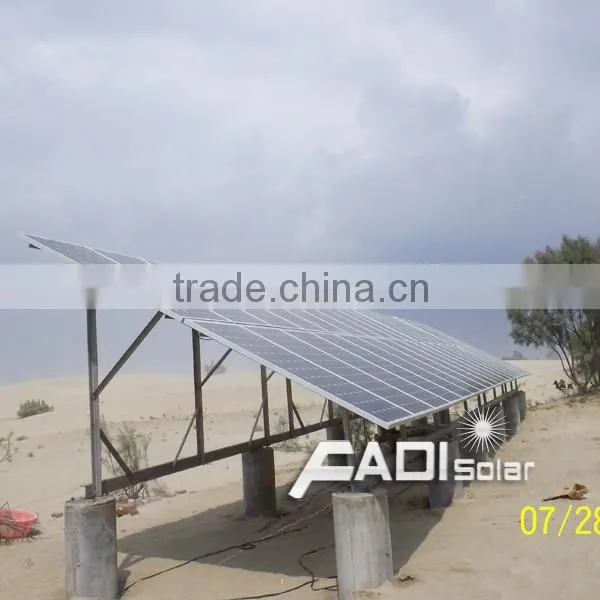

Power	8000W poly panel (40pcsx200w) mono crystalline panel
Pump diameter	4inch
Outlet	3inch
G.W.	48kgs
warranty	Two years
Solar pump material
Pump casing	Stainless steel
Screw	Stainless steel
Shaft core	Stainless steel
Coupling	Stainless steel
Connecting	Copper alloy
Base	Copper alloy
Cable	Rubber
Water level sensor	Rubber + Plastic
DC Solar water pump system compents
Solar pump	1pc
Controller box	1pc
Screw	1pc
Cable connector	4pcs
Water level sensor	4pcs
Rope	1pc
Manual	1pc
Solar pump working condition
Liquid	Non-corrosive water
Volume ration of sand content	Less than 0.1%
Size of sand content	Less than 0.2mm
Max medium temperature	Less than 40°C
PH	6.5-8.5
Situation	Be immersed in water

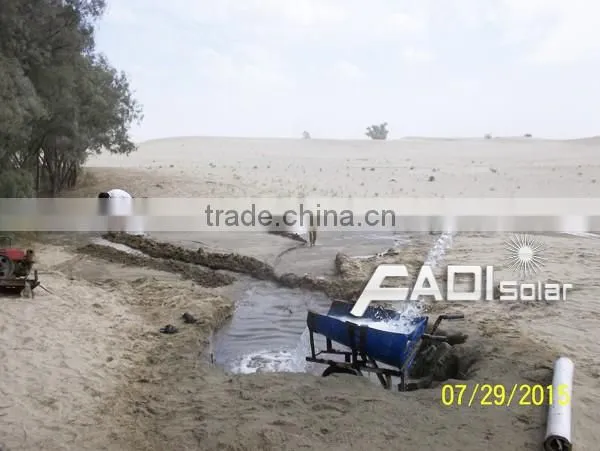

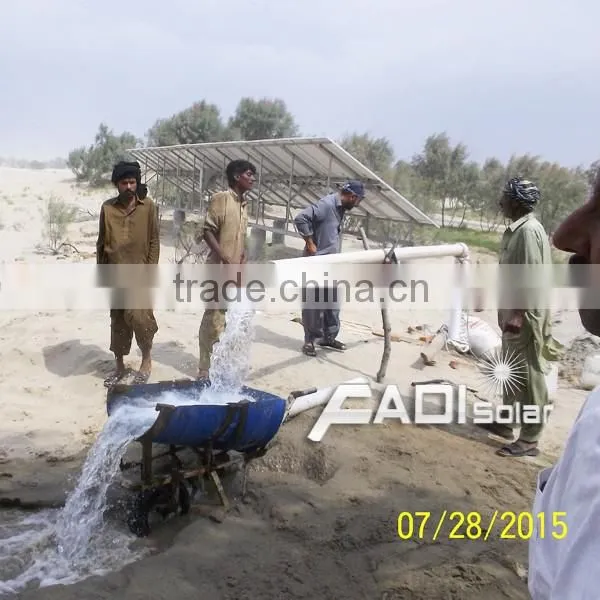

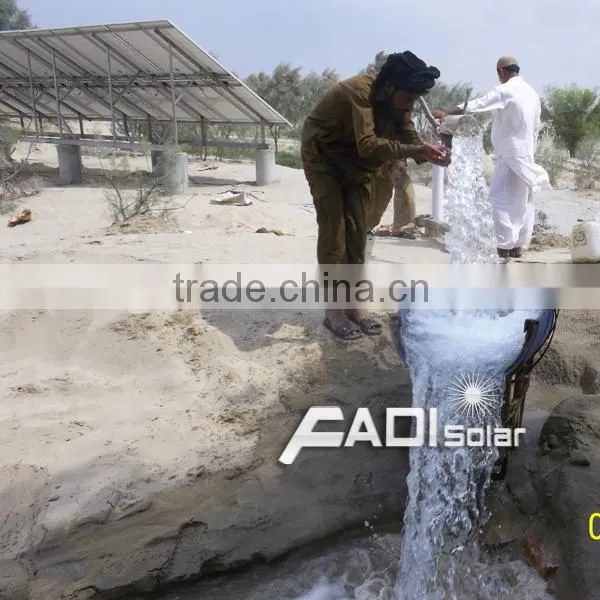

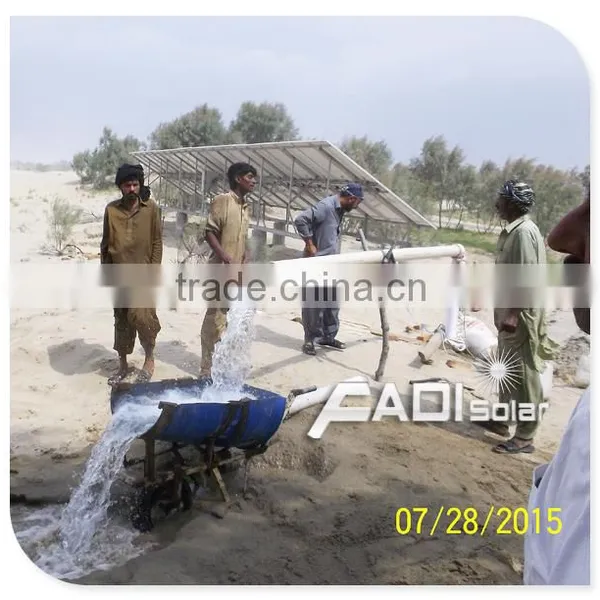

Application	Pumping water from deep well,gardening,fountain and etc
