Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > CE Approved NES-120-12 Over Load Protection 230v Input 12V 10A Power Supply

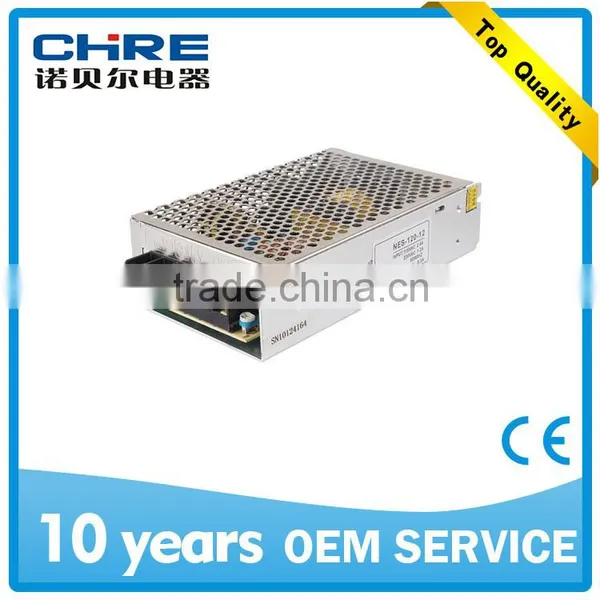

CE Approved NES-120-12 Over Load Protection 230v Input 12V 10A Power Supply

Name: CE Approved NES-120-12 Over Load Protection 230v Input 12V 10A Power Supply
Brand: Chre
SKU: 134468685
Availability: InStock

CE Approved NES-120-12 Over Load Protection 230v Input 12V 10A Power Supply thumbnail-1

CE Approved NES-120-12 Over Load Protection 230v Input 12V 10A Power Supply photo-1

US$ 14.32 - 14.32 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Chre

Model Number:

NES-120-12

Contact Supplier Request Quote Chat Now

Yueqing Nobel Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Chre

Model Number NES-120-12

Output Power 101 - 200W

Output Type Other, Single, Single

Input Voltage 220V

Output Voltage 12V

Output Frequency 47~63Hz

Output Current 10A

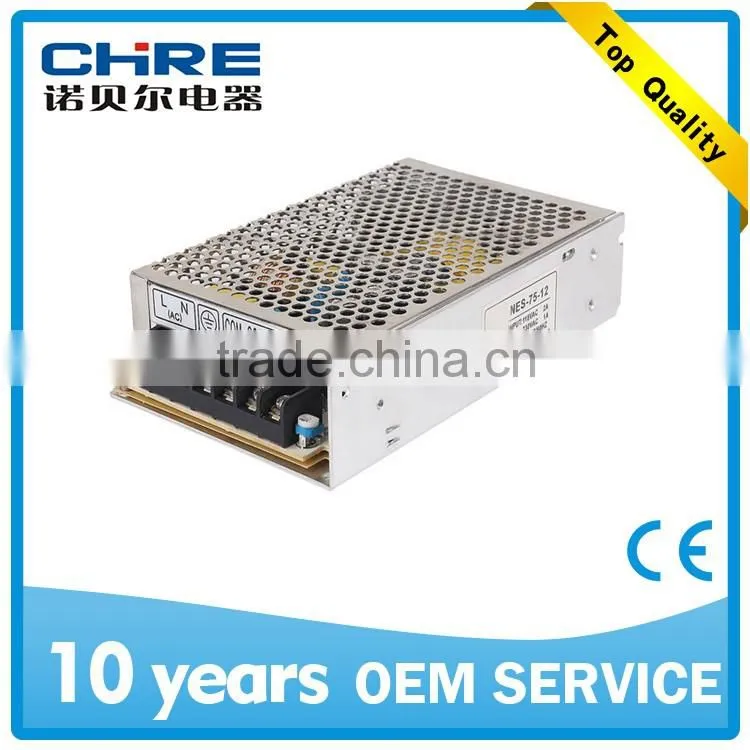

CHRE CE Approved NES-120-12 over load protection 230v input 12V 10A power supply

Product Description

· 1. Universal AC input/Full range

· 2. Small Volume,low weight,high efficiency

· 3. Protections:Short circuit/over load/over voltage/over temp

· 4. Cooling by free air convection
· 5. Can be installed on DIN RAIL:TS-35/7.5 or TS-35/15

· 6. 100% full load burn-in test

· 7. 2 years warranty

MODEL		NES-120-12
OUTPUT	DC VOLTAGE	12V
	RATED CURRENT	10A
	CURRENT RANGE	0~10A
	RATED POWER	120W
	RIPPLE & NOISE(max).Note.2	120mVp-p
	VOLTAGE ADJ.RANGE	10~14V
	VOLTAGE TOLERANCE Note.3	±1.0%
	LINE REGULATION Note.4	±0.5%
	LOAD REGULATION Note.5	±0.5%
	SETUP,RISE TIME	500ms,20ms/230VAC 500ms,20ms/115VAC at full load
	HOLD UP TIME(Typ.)	30ms/230VAC 25ms/115VAC at full load
INPUT	VOLTAGE RANGE	90 ~ 132VAC / 180 ~ 264VAC selected by switch 254 ~ 373VDC
	FREQUENCY RANGE	47~63HZ
	EFFICIENCY(Typ.)	86%
	AC CURRENT(Typ.)	2A/115VAC 1.2A/230VAC
	INRUSH CURRENT(Typ.)	COLD START 36A
	LEAKAGE CURENT	<2mA/240VAC
PROTECTION	OVERLOAD	110~150% rated output power
	OVERLOAD	Protection type: C an be con tinued, recovers automatically after fault condition is removed
	OVER VOLTAGE	16~18V
	OVER VOLTAGE	Protection type : Shut down, recovers automatically after temperature goes down
ENVIRONMENT	WORKING TEMP.	-20~+60°C (Refer to "Derating Curve")
	WORKING HUMIDITY	20~90% RH non-condensing
	STORAGE TEMP HUMIDITY	-40~+85°C 10~95%RH
	TEMPCOEFFICIENT	±0.03% /°C(0~50 °C )
	VIBRATION	10~500HZ,2G10min/1cycle,60min.each alongX,Y,Zaxes
SAFETY & EMC(Note 7)	SAFETY STANDARDS	UL60950-1, CB(IE60950-1),CCC GB4943.1:2011 approved
	WITHSTAND VOLTAGE	l/P-o/P:3KVAC; l/P-FG:2KVAC; O/P-FG:0.5KVAC
	ISOLATIONRESISTANCE	I/P-O/P, I/P-FG, O/P-FG :100M Ohms / 500VDC / 25°C/ 70% RH
	EMC EMISSION	Compliance to EN55015, FCC part 15 class B
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,6,8, light industry level, criteria A
OTHERS	MTBF	320.7Khrs min MIL-HDBK-217F(25°C)
	DIMENSION	1599838mm(LWH)
	PACKING	0.55Kg; 30pcs/17.5Kg/0.97CUFT
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 °C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3.Tolerance : includes set up tolerance, line regulation and load regulation. 4.Constant current operation region is within 60% ~100% rated output voltage, and the output power must be more than 60% rated output power.This is the suitable operation region for LED related applications, but please reconfirm special electrical requirements for some specific system design. 5.Derating may be needed under low input voltages. Please check the static characteristics for more details. 6.Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time. 7.The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
