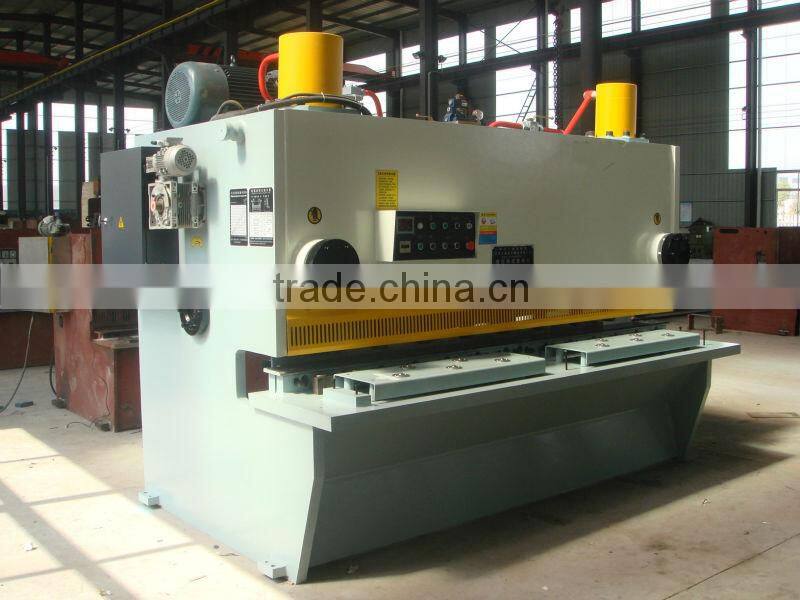

Hydraulic Guillotine Iron Steel Stainless Plates Sheet Shearing and Cutting Machine

Hydraulic guillotine iron steel stainless plates sheet shearing and cutting machine

♦BRIEF INTRODUCTION:

1.All steel welded structure,vibrating treatment of ageing for removal of internal stress,with good rigidity and stability.

2.Intergrated hydraulic transmission system,with good reliability.

3.Triple support rolling guide raikl to eliminate gaps of support and enhance shearing quality.

4.Mechanical rear stopper with manual fine tuning,and digital indication.

5.Clearance in between shearing blades adjusted by hand wheel to be quickly.accurate and convenient.

6.Rectangular blades with four cutting edges to prolon working life,adjustable shearing angle to reduce deformation of the sheet.

7.Upper blade holder has inward tilting struction to facilitate material feed in and also enhance of the work piecision.

8.Function of shearing in section,function of aligning with light

9.Optional:rear material holding device( or for other choice)

♦ HYDRAULIC SYSTEM:

• Adopt integrated hydraulic control system, more reliable and easy for maintenance.Main hydraulic valves is fron BOSCH(GERMANY)

•  All pipes, flange and joint with vibrations proof and leakage proof design and setting .

•  Main seals in cylinder is Valqua from Japan,the most famous brand,good quality and high performance

•  Overload overflow protection is outfitted to hydraulic system,which can assure  no leakage.

• The hydraulic system is made in compliance with current regulations.

 ♦ ELECTRICAL SYSTEM:

•  Electrical Cabinet under theinternational Standard, safe and reliable, strong anti interference capability.

• Protective fence to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.

•  Main electrical elements choose from Siemens .Germany.

                                                                                                                                    ♦BLADE ADJUST AND CUTTING PRECISION

 • Shearing angle is Variable, which can reduce the shearing deformation of sheet metal and can shear muchthicker sheet metal. function of aligning with light.

•  Upper blade holder has inward tiling structure to facilitate material feed in and also enhance accuracy of thework piece.

 •  Rectangular blades with four cutting edges to prolong working life, can adjustable shearing angle to reducedeformation of the sheet.

♦COMPONENTS :

Operation System: ESTUN /DELEM (HOLAND)

Oil pump(Gear Pump): Chengjie(Shanghai)

Blade:Jinshang (Shanghai)  Material: 6crw2si /9crsi

Hydraulic elements: Rexroth (Germany)/Omega(U.S.A.)/Hongwei(China)

Electric parts: Siemens Germany)

Motor: Siemens(Germany) /Hengli (Nantong)

Main Seal:VALQUA(Japan)/NOK(Japan)

All components also can supply according to client's requirement.

♦SPECIFICATION:

More specification you need please contact with me. We can supply the shearing machine :

Cutting thickness :4mm    Min - 40mm  Max

Cutting length     : 1.5m    Min -  8  m   Max

♦AFTER SERVICE :

1.Seller canarrange people go abroad for installation and test .The cost at home is paid by seller ,but cost a broad include the round-trip ticket should be paid by buyer .

2.Seller offers the operation manual (English).

3.Seller offers one set of wearing parts and one set tools for installation and maintenance .

4.Length of warranty : one year as from the date of acceptance.

  one year as from the date of installation and acceptance. Within the 1 year ,if the accessory is demaged exce pt the human factor of your parts, we will express a new related accessory (free) and instruct you how to repair. exceed 1 year.,if the accessory is demaged  we can express a new related accessory (changed) and instruct you how to repair

5.Buyer can arrange people here to examine and verify the machine, buyer also can send people here to learn how to use the machine (it’s free of charge to learn )

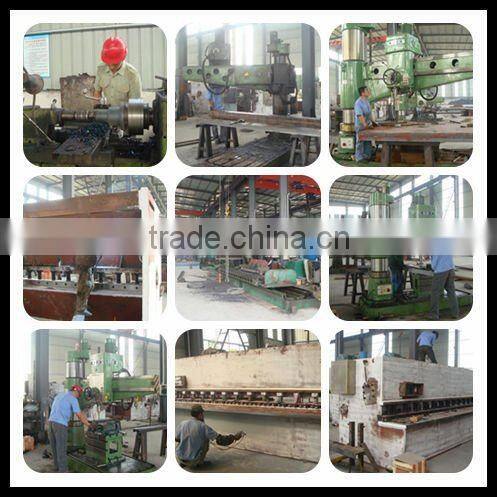

PRODUCING:

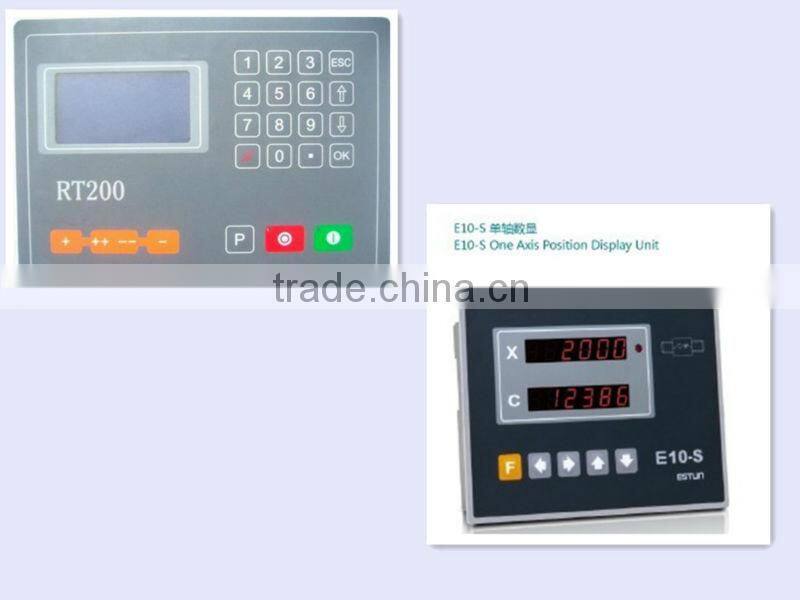

NC SYSTEM( FOR OPTIONAL):

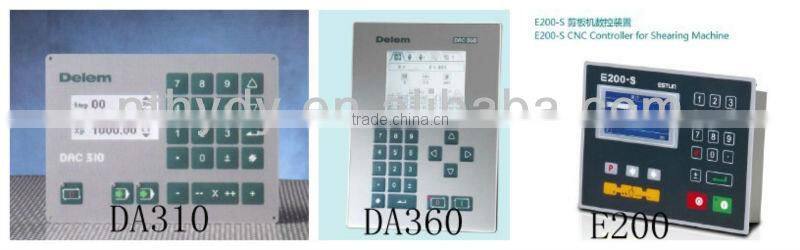

 MAIN CNC SYSTEM(FOR OPTIONAL):

We can supply series , diffierence CNC system. if you are interested in others cnc system , please contact with me.

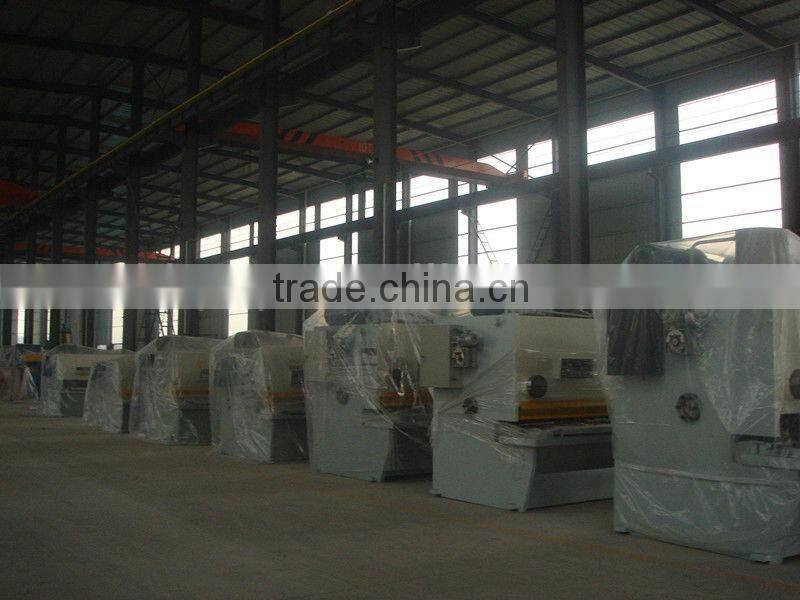

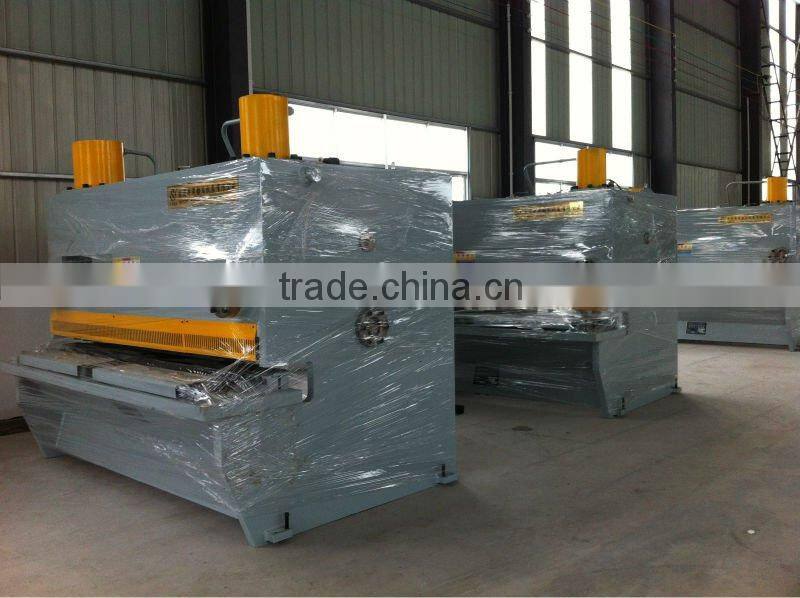

FINISHED PRODUCTS:

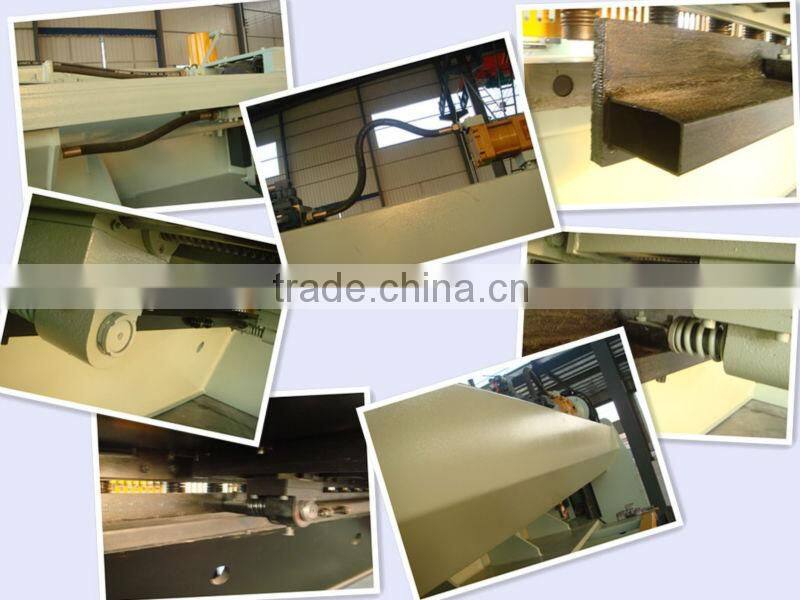

DETAILS:

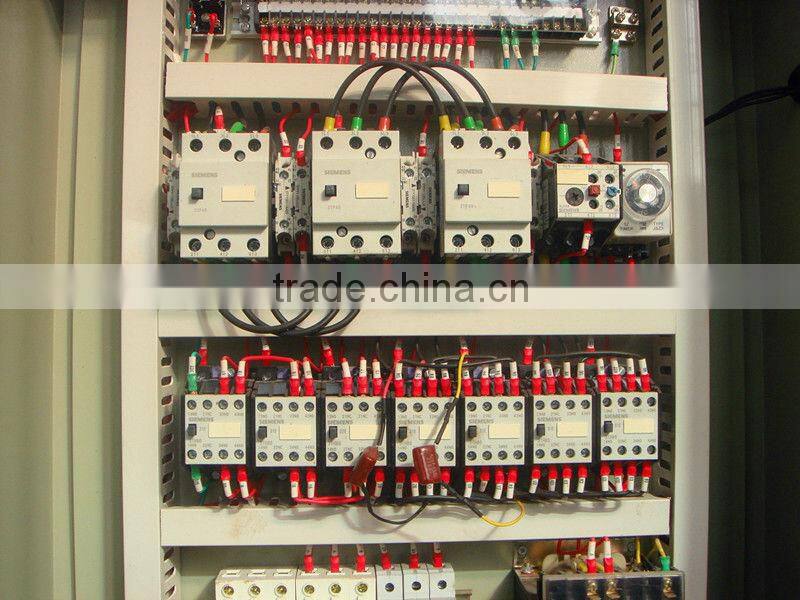

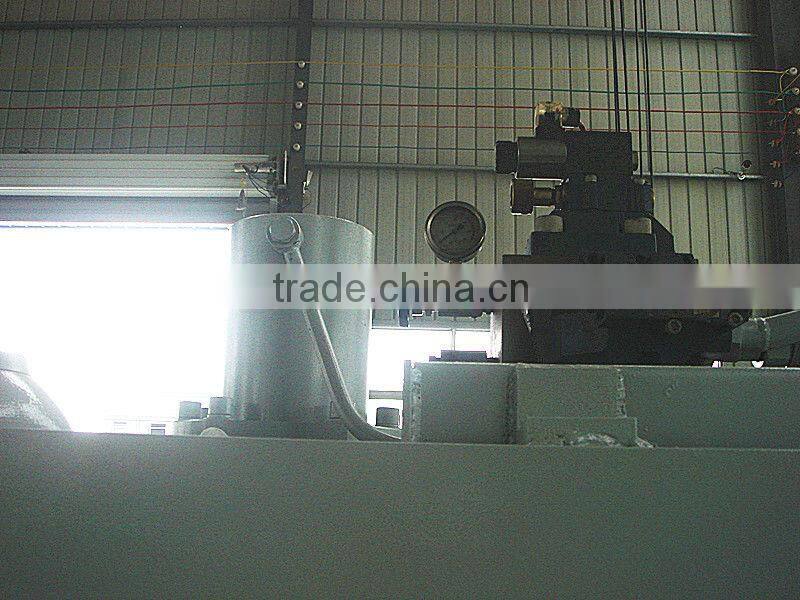

Electrical Parts                                                                Hydraulic System

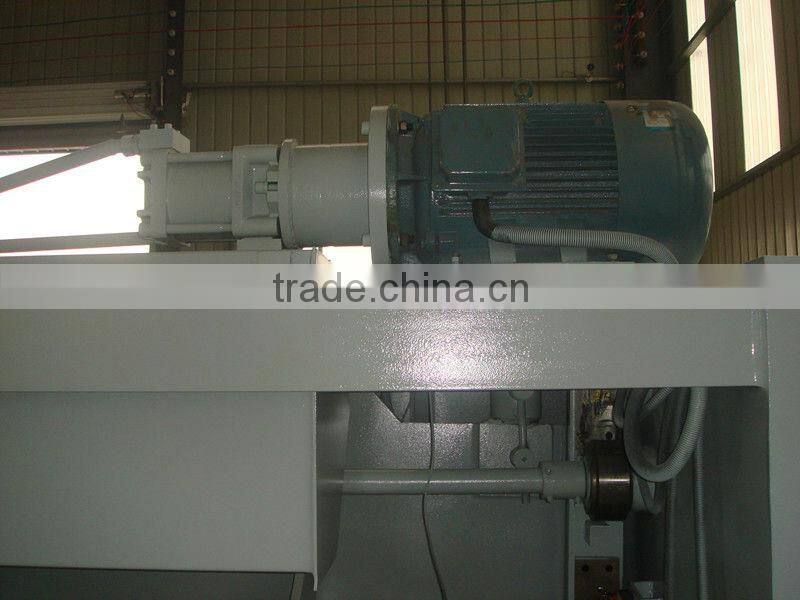

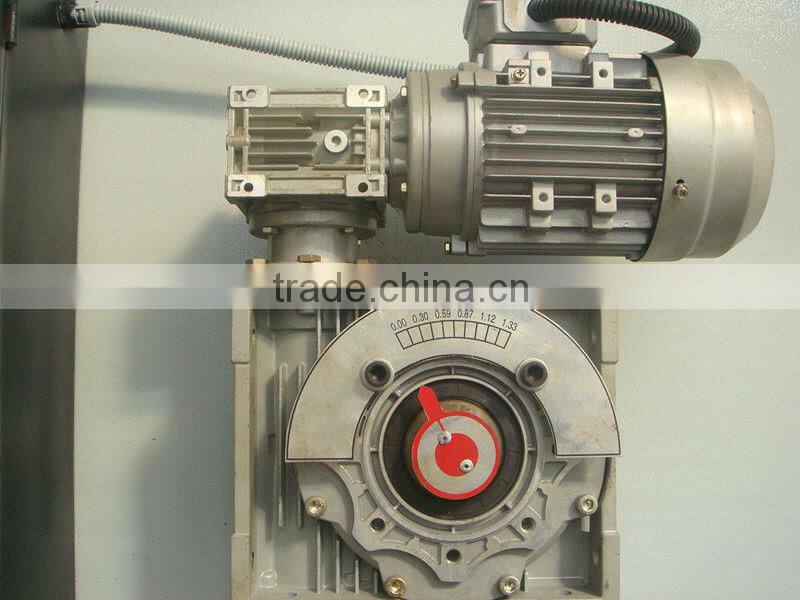

Motor For Adjusting Blade                                              Main Motor

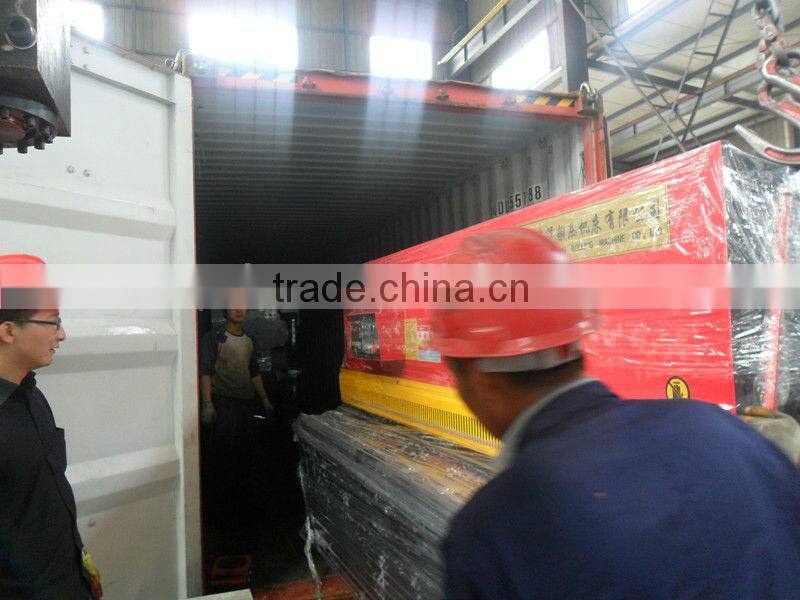

LOADING CONTAINER:

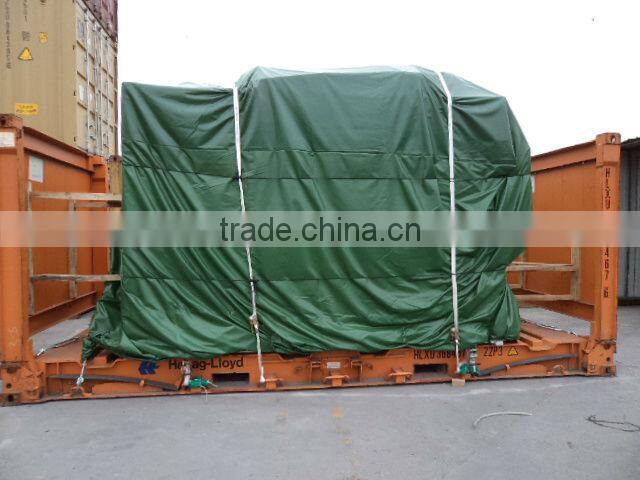

Flat Rack Container Loading:

20"container or 40"Container Loading:
