Home > Products > Refrigeration Pressure Switch > Multipurpose LF08 pressure switch for Fuel pressure monitoring/Engine controls/Refrigeration/Air conditioning

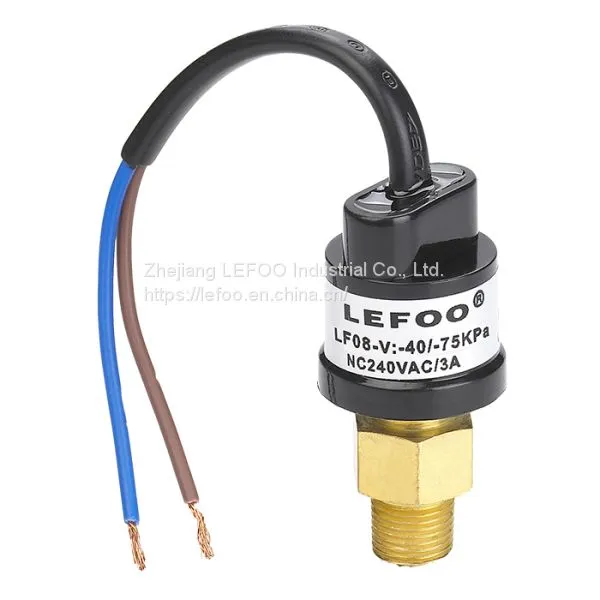

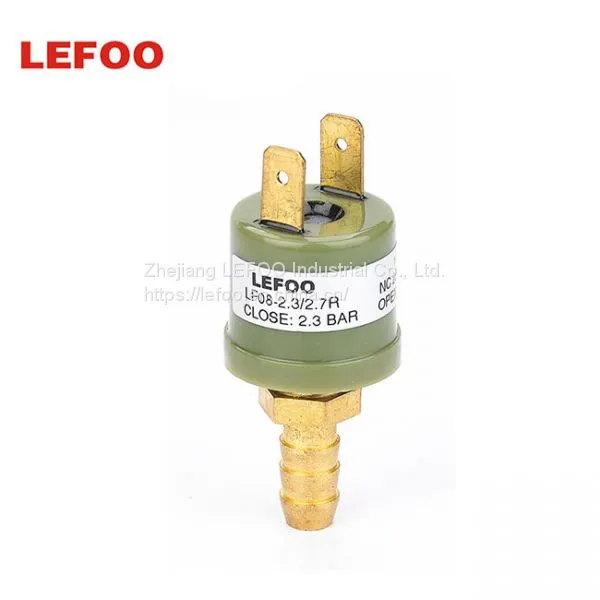

Multipurpose LF08 pressure switch for Fuel pressure monitoring/Engine controls/Refrigeration/Air conditioning
USD $4 - $7
/ Piece
10 Pieces(Min.Order)
- 50000 Piece / Pieces per Month
- ShangHai or NingBo
- T/T L/C D/P D/A PayPal
You May Like
-
LF08 Air water hydraulic vacuum pump pressure controller, hvac, air conditioning , refrigeration pressure switch
-
LEFOO LF08 Multipurpose pressure switch with wide pressure range for heat system,pressure control switch for water gas oil
-
LF08 UL approved air conditioning pressure control
-
LF58 Dual Adjustable Refrigeration Pressure Control Switches
-
LEFOO LF58 refrigeration system dual pressure switch for water pump control/compressor
-
LF5D Differential Pressure Switch
Product Details
| Brand Name | LEFOO | Place of Origin | China | |
| Model Number | LF08PS | Max. Voltage | 240VAC | |
| Max. Current | 72A | Max. Working Pressure | 45BAR |
Product Description
Automatic Reset Pressure switch designed.
Wide range of pressure settings & meet a board variety of application.
Used: Pressure controlling of Air, Water, Internal wiring of electric refrigerating equipment or room cooler units or remote outdoor condensing units for domestic cooling systems.
Typical Applications: safety controls / air conditioning / refrigeration.
- ModelLF08PSMediaAir, Water, motor oils, transmission oils, Hydrocarbon Media, Refrigeration fluidPressure Set Pointactuation from 0.1 to 45 BarMax Operating Pressure25 Bar for actuation up to 10 Bar35 Bar for actuation from 10-20 Bar45 Bar for actuation from 20- 45 BarProof Pressure35 Bar for actuation up to 10 Bar55 Bar for actuation from 10-20 Bar85 Bar for actuation from 20- 45 BarBurst Pressure
5000 psi (345 bar) Operating Temperature Range-30° C to ~ 80° CSwitch TypeDirect action, blade contact, SPST NC, NOElectric Rating120/240VAC, 375VA
24VAC/DC, 2A
Dielectric Strength750 Vrms across open contacts
1550 Vrms terminals to fittingTerminals#8-32 screws, 1/4 bladeLife at Related Load 100,000 cycles Connection1/8NPT, G1/8", 1/4NPT, G1/4" Options various connector thread sizes; wire leads (potted & sealed); protective cover.
