Home > Electrical & Electronics > Switch > Pressure Switch > LFS-03 Industrial Vacuum Cleaner Air Pressure Switch

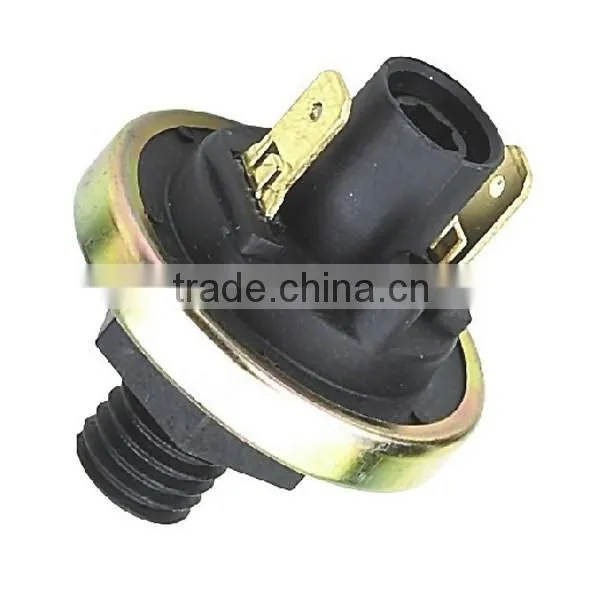

LFS-03 Industrial Vacuum Cleaner Air Pressure Switch

Name: LFS-03 Industrial Vacuum Cleaner Air Pressure Switch
Brand: LEFOO
SKU: 134420577
Availability: InStock

Zhejiang LEFOO Industrial Co., Ltd.

LFS-03 Industrial Vacuum Cleaner Air Pressure Switch thumbnail-1

LFS-03 Industrial Vacuum Cleaner Air Pressure Switch photo-1

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Brand Name:

LEFOO

Model Number:

LFS-03

Max. Current:

2.5A

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name LEFOO

Model Number LFS-03

Max. Current 2.5A

Max. Voltage 250VAC

Max. Working Pressure 2500mBar

Specifications

1.Impact size, low cost pressure switch.
2.application such as industrial vacuum cleaner,auto door operating system.

LFS-03 air pressure switch can be is applied to detection positive or negative pressure. It can be used as a gauge or differential pressure switch with almost no hysteresis. If 2 switch points are required, 2 pressure switches with different calibrations should be employed. The method of fixing the tab terminals to the switch body does not allow for absolute air sealing. The switch is therefore not recommended for applications where static vacuum has to be maintained. However, special models with additional pressure spring which allow for the vacuum to be connected to the pressure inlet side are available on request.

Model	LFS-03
Electrical Function	1 pole NO 1 pole NC
Switch Rating	1 pole NO: 2.5(0.5) A 250V~1E4 1 A 250 V~5E4(max 800 mbar) 20 mA 250 V~5E4(max 800 mbar) 1 Pole NC: 2.5(0.5) A 250V~1E4 0.5 A 250 V~5E4(max 800 mbar) 20 mA 250 V~5E4
Temperature	Ambient: -10 to +85
Electrical Connections	Tab terminals 6.4 x 0.8 mm Tab terminals 4.8 x 0.8 mm(1 pole NO only)
Pressure Range	Pressure: +15 to +2500 mbar Tolerance: +/- 10% NO; +/- 15% NC Vacuum: -600 to -15 mbar Tolerance: +/- 15%
Sample Line Connections	Pressure and vacuum: Inlet 4.0 or 5.5 mm (up to 500 mbar) Threaded inlet M10 x 1 mm or 1/4 gas
Switch hysteresis	Almost no hysteresis
Max. working pressure	3000 mbar
Medium	Non hazardous gas only
Fixing Methods	Plastics clips (version with inlet only)
Materials	Lower body: PA 66
	Upper body: PA 66
	Adjust. screw: PA 66
	Contact carrying parts: Brass Silver plated (gold plating on request) Membrane: Nitrile, EPDM, (Silicone, Perbunan on request) according to application
