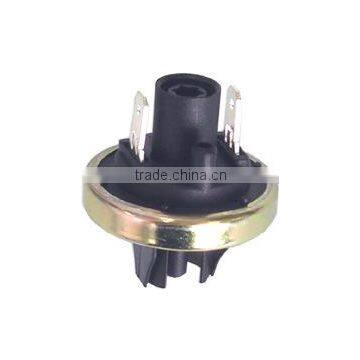

LFS-03 automatic sliding door vacuum air switch
- 100000 Piece / Pieces per Month
- T/T
You May Like
-
LFS-01 UL approved PCB Mounting Vacuum and Pressure Switch
-
LF17 water pump pressure switch
-
LF16 automatic water level pressure switch for water pump
-
LF17 2 phases water pump flow pressure switch
-
LEFOO LF16 automatic water pump pressure switch 15-150 PSI,20~80PSI and 40~100PSI
-
LEFOO LF16 blue cover Water pump automatic pressure switch,water pump mechanical pressure controller
Product Details
| Brand Name | LEFOO | Model Number | LFS-03 | |
| Max. Voltage | 250VAC | Max. Working Pressure | 2500mBar |
Product Description
LFS-03 vacuum air switch can be is applied to detection positive or negative pressure. It can be used as a gauge or differential pressure switch with almost no hysteresis. If 2 switch points are required, 2 pressure switches with different calibrations should be employed. The method of fixing the tab terminals to the switch body does not allow for absolute air sealing. The switch is therefore not recommended for applications where static vacuum has to be maintained. However, special models with additional pressure spring which allow for the vacuum to be connected to the pressure inlet side are available on request.
Model | LFS-03 |
Electrical Function | 1 pole NO |
Switch Rating | 1 pole NO: |
Temperature | Ambient: -10 to +85 |
Electrical Connections | Tab terminals 6.4 x 0.8 mm |
Pressure Range | Pressure: +15 to +2500 mbar |
Sample Line Connections | Pressure and vacuum: Inlet 4.0 or 5.5 mm (up to 500 mbar) |
Switch hysteresis | Almost no hysteresis |
Max. working pressure | 3000 mbar |
Medium | Non hazardous gas only |
Fixing Methods | Plastics clips (version with inlet only) |
Materials | Lower body: PA 66 |
Upper body: PA 66 | |
Adjust. screw: PA 66 | |
Contact carrying parts: Brass Silver plated (gold plating on request) |
