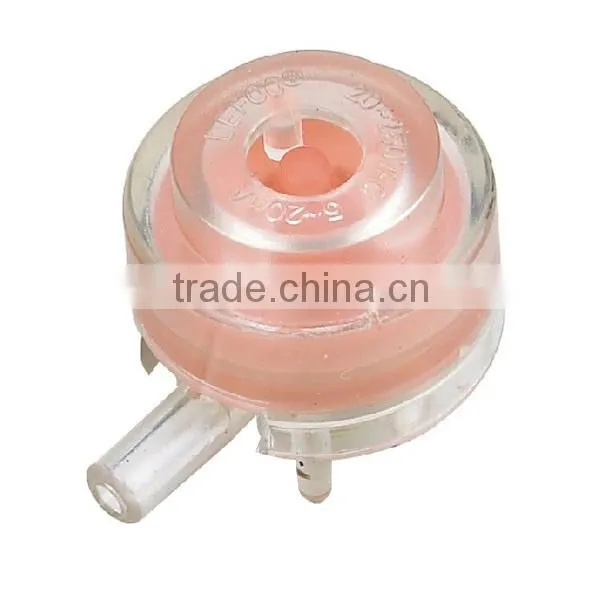

Help CenterLFS-01 Vacuum Pressure Sensor for Vacuum Cleaner
Related Products
-
LEFOO LF31 Hvac Air Differential Pressure Switch for Gas Boiler and Water HeatersUS$ 6 - 11MOQ: 20 Pieces -
LFS-02 UL Approved Vacuum & Pressure Switch for Vacuum CleanerNegotiableMOQ: 500 Pieces
-
LFS-03 Industrial Vacuum Cleaner Air Pressure SwitchNegotiableMOQ: 100 Pieces
-
LFS-03 Automatic Sliding Door Vacuum Air SwitchNegotiableMOQ: 200 Pieces
-
LFS-01 UL Approved PCB Mounting Vacuum and Pressure SwitchNegotiableMOQ: 500 Pieces
LFS-01 pressure sensor is applied to detection of both negative and
positive pressure, such as the family vacuum cleaner. It is provided with solder
pin connections and is especially designed for mounting on "Printed Circuit Boards",
but can also be provided with different wire leads, terminals and socket. It is
designed as an economical interface between pressure systems and Printed
Circuit Boards with almost no hysteresis.
Features:
Model |
LFS-01 |
|
Electrical Function |
1 pole NO |
|
Switch Rating |
20 mA, 250 V [c UL us ] |
|
Temperature |
-10~95°C |
|
Electrical Connections |
Solder pins 1.0 mm, 10mm between away from each other; or wire leads with different insulation, diameter and length, socket |
|
Pressure Range |
Vacuum: 10mbar to 800mbar Pressure: 10mbar to 500mbar (1mbar=100Pa) |
|
Sample Line Connections |
Inlet 4.0 mm for tube connection |
|
Medium |
Non hazardous gas only |
|
Fixing Methods |
Soldering on PCB |
|
