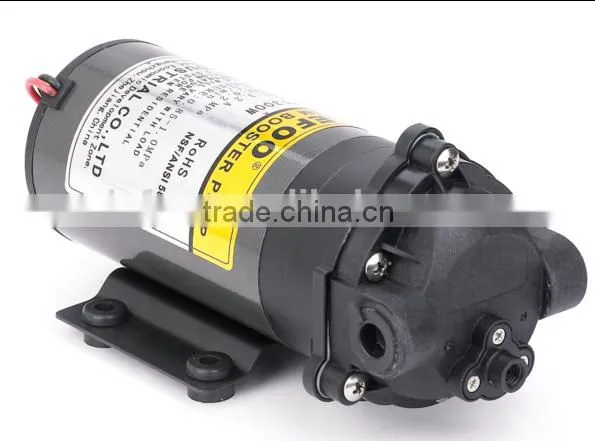

LFP2500-2600W Stabilized Booster Pump
Compliant with ROSH & CE certification;
The wet parts complies food grade requirements;
The pressure-containing member adopts high strength plastic and metal materials;
The materials of sealing parts are all imported;
Equipped with high power DC motor with low noise, low vibration;
Totally inspection control in production process for electrical, sealing and water system;
PRODUCT PARAMETERS
LFP2500W SERIES |
Parameter |
LFP2600.W SERIES |
Parameter |
Model |
LFP2500W |
Model |
LFP2600W |
Voltage |
36VDC |
Voltage |
36VDC |
Connection Thread |
3/8"NPT(general) |
Connection Thread |
3/8"NPT(general) |
Inlet water pressure |
0.2MPa |
Inlet water pressure |
0.2MPa |
Operating pressure |
0.6MPa |
Operating pressure |
0.6MPa |
Current |
≤1.6A |
Current |
≤1.9A |
Work flow |
≥2750mL/min |
Work flow |
≥3250mL/min |
Open flow |
≥5000mL/min |
Open flow |
≥6000mL/min |
Max Pressure |
0.85-1.0MPa |
Max Pressure |
0.85-1.0MPa |
Max Current |
2.5A |
Max Current |
2.8A |
Pure water/ condensed water |
1:1 |
Pure water/ condensed water |
1:1 |
Compliant with ROHS & CE certification
