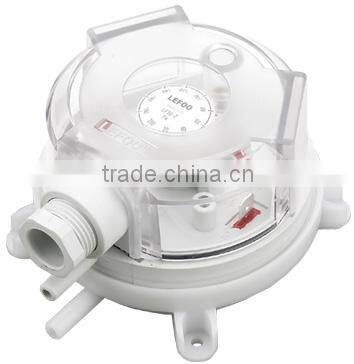

Help CenterLF32 Sensitive (differential) Pressure Switch for Air
Related Products
-
Furnace Air Pressure SwitchNegotiableMOQ: 100 Pieces -
LF702 Pressure SwitchNegotiableMOQ: 100 Units
-
LF727 Pressure SwitchNegotiableMOQ: 100 Units
-
LF708 Pressure SwitchNegotiableMOQ: 10 Units
-
LF40-01 UL Approved Pressure Switch for Pool Swimming/ Sanitary /out Door Machine Equipment/waste DisposerUS$ 5 - 8MOQ: 50 Pieces
The LF32 is an adjustable differential pressure switch capable of detecting miniscule changes in pressure do to its size and proven design. The switch set point or switching point can be field adjustable with out the need of a manometer by simply using the adjustment knob and the built in calibrated visual scale. This switch is equip with a clear cover that not only protects the adjustment knob to be move involuntary but also provides class IP54 protection.
The LF32 adjustable pressure switch is primarily used in heating and ventilation application where the need of accurately monitoring air flow in air duct systems, air filters, flaps are critical.
Some specific applications of the LF32 adjustable differential pressure switch are :
Controlling fire protection flaps in ventilation ducts
Monitoring air filters in cooling and heating systems
Monitoring cooling systems of industrial electronic circuits,
Monitoring positive pressure on pressurized rooms
Monitoring air flow on fan heaters (over heating protection)
Frost protection for heat exchanger
The LF32 Adjustable differential pressure switch can also be used as an adjustable pressure switch and adjustable vacuum switch as well.
Series No. |
LF32 |
Medium |
Air, non-combustible and non-aggressive gasses |
Max Operating Pressure |
5 kPa |
Mounting position |
Diaphragm in any vertical plane |
Degree of protection |
IP54 (with cover) |
Operating Temperature |
-40° C to 85° C |
Contact Arrangement |
SPST or SPDT |
Electrical Rating |
Resistance: Initial: <400 milliohms; 1.5A (0.4A) @ 250Vac |
Terminals |
6.4 mm(0.25") copper alloy |
Connection |
6.0mm Dia. for tube connection |
Model |
Pressure Range |
Differential |
Tolerance |
LF32-02 |
20 ~ 200 Pa |
10 Pa |
+/-15% |
LF32-03 |
30 ~300 Pa |
10 Pa |
+/-15% |
LF32-04 |
40 ~400 Pa |
20 Pa |
+/-15% |
LF32-05 |
50 ~ 500 Pa |
20 Pa |
+/-15% |
LF32-10 |
200 ~ 1000 Pa |
100 Pa |
+/-15% |
LF32-25 |
500 ~ 2500 Pa |
150 Pa |
+/-15% |
