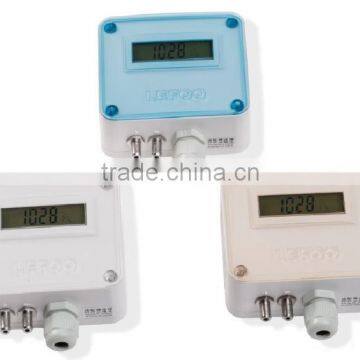

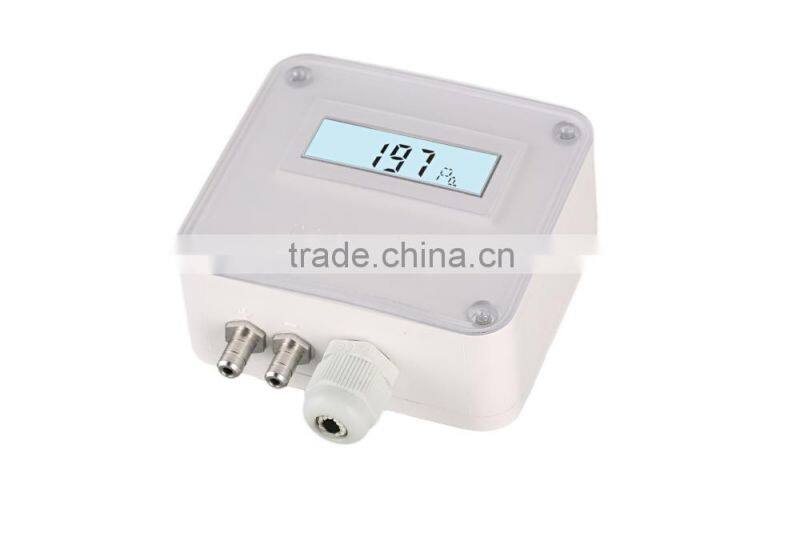

Adjustable differential pressure transmitter with LCD

Range

LFM110

 0~+/-100, 250, 500, 750, 1000 Pa

0~+/-1000, 2500, 5000, 7500, 10000 Pa

Precision

±0.5% FS

Unit

LFM110 / 112

Pa, mmH2O, mbar, inWG,

mmHG, daPa, KPa, hPa

Allowable pressure

LFM110

15,000Pa

LFM112

150,000Pa

Outlet signal

1 group 4 ~ 20 mA or 0 ~ 10 Vdc ( 2 wire )

Power

16 ~ 30 Vdc/Vac ( 2 wire )

24Vdc adaptor power supply

220Vac

Precision

1%FS

Response time

20ms

Resolution

1Pa,0.1mmH₂O,0.01mbar,0.004inWG,

0.007mmHG,0.1daPa,0.001KPa,0.01hPa

Zero calibration

Manual zero calibration or auto zero calibration when switch on.

media

Air and neutral gas

Allowable pressure

15KPa(W110)   150KPa(W112)

Operating TEMP

0~+60°C

Storage TEMP

-10~+70°C
