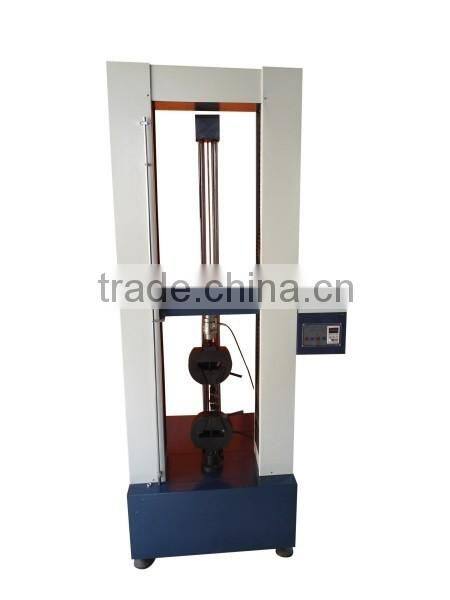

20-50KN Digital Display Tensile Machine

                                                 20-50KN Digital display tensile machine

I. Introduction
    ZY series of digital electronic tensile machine is used to test the tensile, peel, tear, H extraction and other mechanical properties of the instrument. Widely used in rubber, plastics, textiles, chemicals, steel, hose belt, wire and cable, plastic, pipe and other industries, it is a high precision, economical and practical type of instrument. Transmission part adopts frequency control, smooth operation, stable performance, advanced technology, high accuracy.
II. The machine features:
      . a frequency control, high precision, no noise, smooth operation, its life expectancy is 5-10 times the normal speed of direct current;
      . b force value, elongation data clear and intuitive;
      . c imports of integrated circuits and control components;
      . d fixture returned by the electric drive control;
      . e high precision force measurement sensors;
Three technical indicators and specifications:
      a performance standards:. GB / T16491-2008
      . b tensile speed: stepless 0 ~ 150mm / min
      . c gripper stroke: 800mm
      . d Voltage: ~ 380V ± 10% 50Hz three-phase four-wire power
      . e force value Display: LCD actual force value bit
      . f elongation Display: LCD actual elongation value
      . g Quality: 300 kg
      h power:. 1.5KW
   . i Dimensions: 970 × 650 × 2000mm

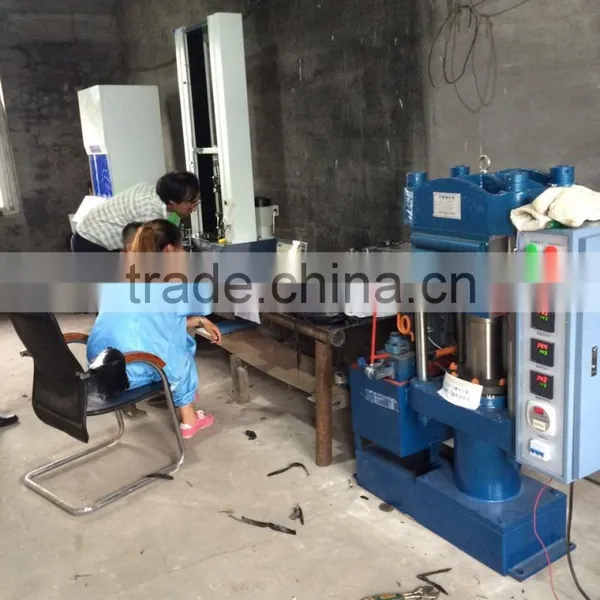

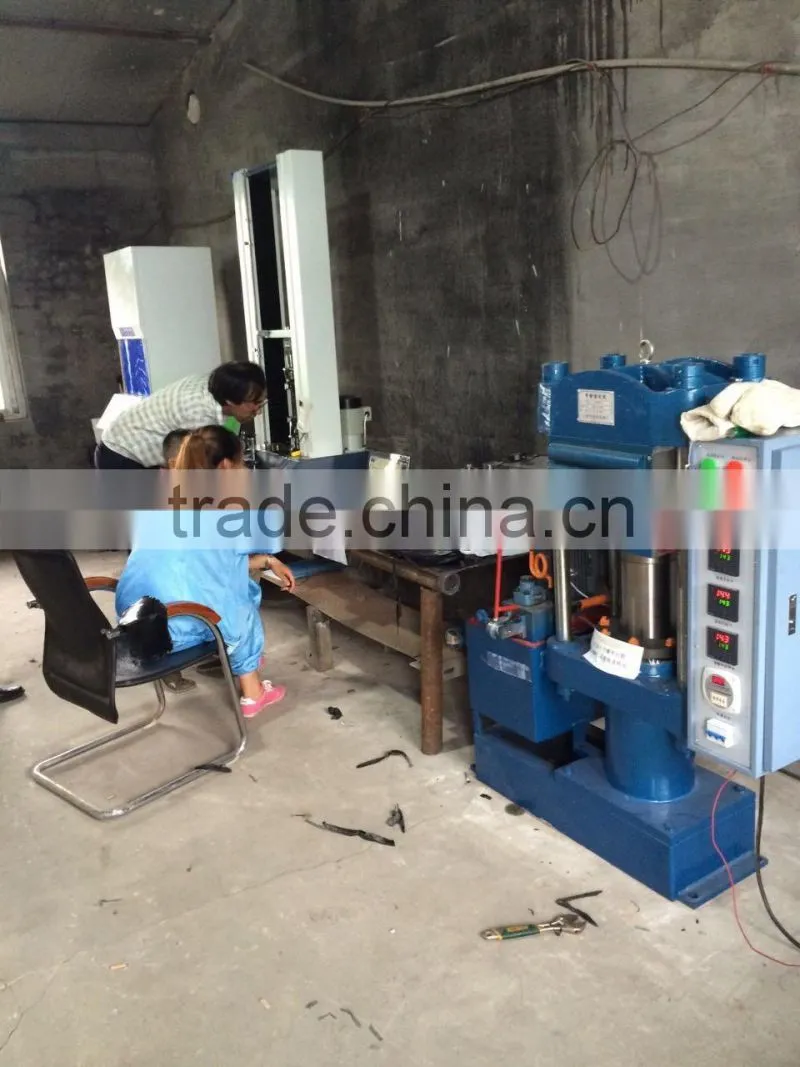

USE picture
