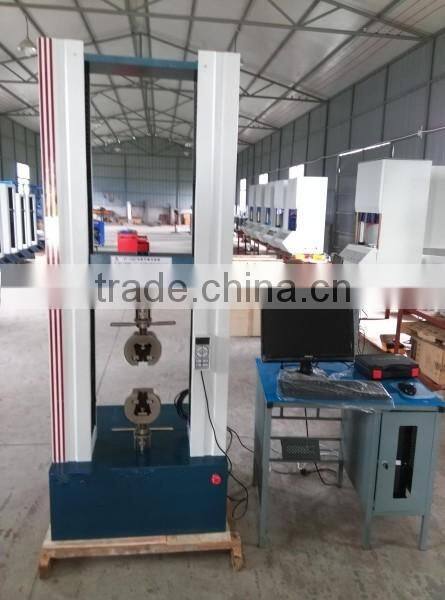

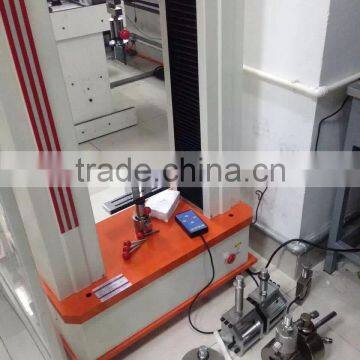

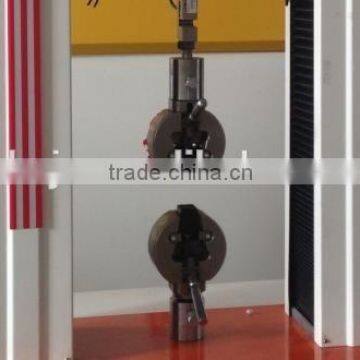

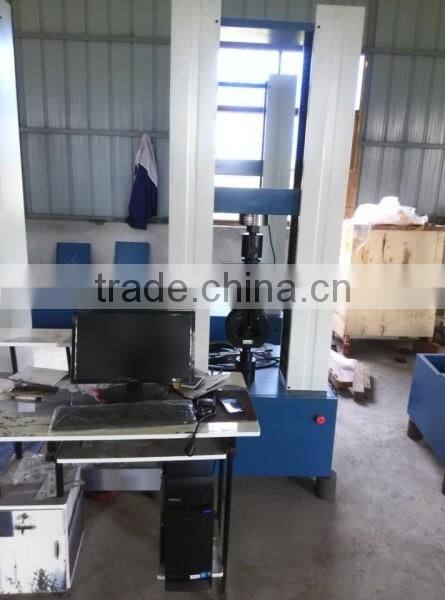

Multi-function Computer Control Electronic Tensile Machine

                                             Computer control electronic tensile machine

 One introduction

Multi-function electronic tester can rubber, plastics, foam, plastic, film, textiles, fibers, nanomaterials, polymers, composite materials, synthetic materials, packing tape, paper, wire and cable, optical fiber cable, belts, seat belt, leather belts, shoes, tape, polymer, spring steel, stainless steel, castings, non-ferrous metals, auto parts and other non-metallic materials alloy materials and metal materials for tension, compression, bending, tearing, 90 ° peel, 180 ° peel, shear, adhesion, pull-out strength, elongation elongation tests.

 Two paremeter

1, range: 10 ~ 50KN
Within ± 0.5% of indicated value: 2, the value of precision force
3, Speed range: 5 ~ 300mm / min (special requirements for separately)
4, the speed tolerance range: within ± 1.0% of indicated value
5, effective stretching distance: 800mm
6. Effective test width: 420mm
7, the displacement measurement accuracy: within ± 0.5% of indicated value (optional)
8, deformation measurement accuracy: within ± 0.5% of indicated value (optional)
9, range tranches: full scale 0.25,0.50,0.75,1.00 fourth gear
10, travel limit safety device: an electronic non-contact limit protection
11, overload protection: Test force exceeds the maximum test force the machine automatically shut down when 10%
12, beams return function: After the test beam to quickly return to the initial position test
13. The acquisition rate: 50 times / S
14, the print function: Test data and curve color inkjet printer to print the test after
15, the power supply voltage: AC (380 ± 38) V 1.5KW
16. Dimensions: 780mm × 680mm × 2100mm
