Rubber Testing No Rotor Rheometer

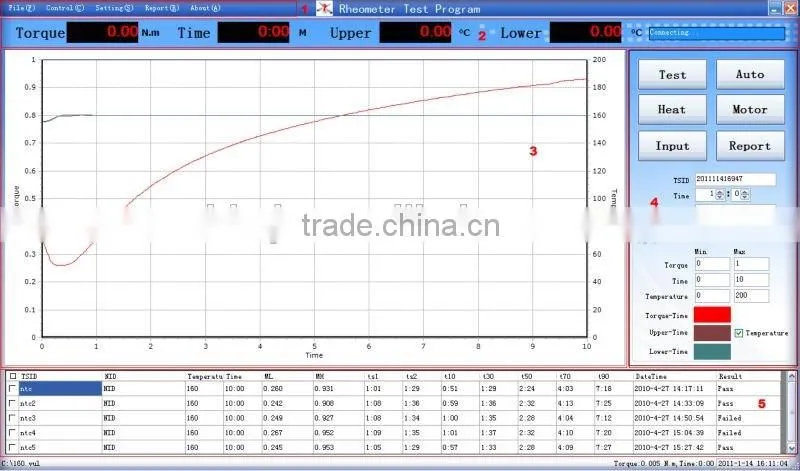

The software interface is consists of five parts (Shown above)
1) The menu panel
Include of File(new data,save data ,load data ),Control(start test ,stop test ,start heat, stop heat,start motor ,stop motor ,multicurve, torque clear, delete data ),Setting(input ,refercurve ,curvecolor ,aotorun, standard, system ),Report and About.
2) The data panel
Display the practice data (torque, time, heat, connections), As well as unit conversion.
3) The curve panel
Display real-time display to read the curve and test curve.
4) The action panel
Shortcut keys, set the test number, material number, test time, test temperature, curvilinear coordinates, curves, color (including test number, material number, test time, test temperature, the curvilinear coordinates the Enter key to enter the settings to save the settings.
5) The results panel
1.2 Technical
Technical parameters
1, the range of temperature control: room temperature, 200 ℃
2, the temperature range: ± 0.1 ℃
3, temperature display resolution: 0.1 ℃
4, temperature rise rate: room temperature: level off when 200 ℃ for 10 min
5, torque range: 5 N.m- 10 N.m
6, time setting range: 2 min - 120 min arbitrarily chosen
7, the rotor swing Angle: ±0.5 (total amplitude :1)
8, consumed power: 800 w
9, power supply: 220V±10% 50HZ
10, exterior size: 640mm×580mm×1300mm
11, net weight: 210 kg
3 Equipment
main machine+computer+printer,English software
USE picture
support trade assurance
when sending enquiry ,for precise quotation
kindly tell me
what product to extrude?
extruded size?
production capacity?
