Briefly Describe
1. LG PLC
2. Hydraulic system
3. Change mold easily
4. Various paving bricks produced

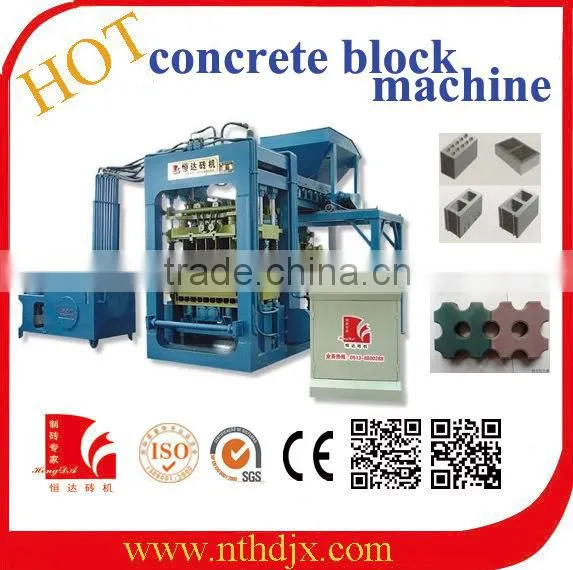

QT8-15 automatic hydraulic interlocking brick block machine in botswana
Our company is a famous designated enterprise by the state of brick and tile machinery specialized manufacturer, with over 40 years of history in producing the bricks. It is also the board company of China brick & tile association, and it has passed firstly ISO9001 international quality system certification, the quality of the products is under the insurance of PICC. And our product is free of national inspection.
Our company has many of excellent technicians, perfection technique equipments, advanced testing system and a whole quality assurance system. The products have a good market at home and abroad, and have exported to Russian, Sudan, Bengal, Egypt, Iraq, South Africa, and Mongolia and etc. nations, highly trusted and applauded by consumers.
Main Technical Specifications of HDQT8-15 interlocking brick block machine in botswana | ||
Cycle Time: |
15-20 seconds |
|
|
Production per Shift (8 Working Hours): |
Hollow Block ( 390x190x190mm ): 11520-15360pcs |
|
|
Solid Block (220x115x72mm): 43200-57600pcs | ||
|
Interlock (225x112.5x60mm): 28800-38400pcs | ||
|
Holland Brick (200x100x60-80mm): 34560-46086pcs | ||
Vibrating Frequency: |
2940 rolls/minute or 50 HZ |
|
Vibrating Force: |
100 KN |
|
Motors Power: |
38 KW |
|
Machine Dimensions: |
5568x2060x2968mm (excluding electrical control box)' |
|
Pallet Size: |
1100*680*20mm |
|
Gross Weight: |
about 12T |
|
Raw Materials: |
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes |
|
Applied Products: |
concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |
|
Applied Fields: |
widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc |
|
Advantages Of QT8-15 multi-function interlocking brick block machine in botswana :
1. Perfect humanization Electrical control system
Siemens PLC with Visualization touch screen provide you a Child operation machine.
2. Frequency Conversional Control Technology:
It guarantees the precise and parallel movement between tamper head and mould, protects the products from transfiguration; increases the production rate by improving the vibrating efficiency, and Power saving: 30%;
3. Hydraulic System. Make in China, world Quality , and we can provide you the hydraulic motor as you request .
4. Compulsory Feeding system make sure that the density and intensity of the products are guaranteed;
5. Various product scope:
It produces various color-face bricks (layered material feeding),through-body tiles,lock linkage blocks, road curb bricks, hydraulic blocks,hollow blocks, perforated bricks, and standard bricks etc.
Some pictures for reference
Batching Plant:: This is the starting point of the Production process. It consists of three loading bins and one weighing bin. It also contains blet conveyers to convey materials from loading bins to weighing bin. Batching and weighing is done by PLC control. We can load three different types of material into the loading bin.
Stacker:Stacker is used to lay the block automatically,it is high effiicent and labor saving.
Concrete Mixture Machine: All the ingredients are mixed in this mixture machine. The mixing time and speed is controlled by PLC. The inbuilt water pump adds water to the mix automatically, as per requirement.

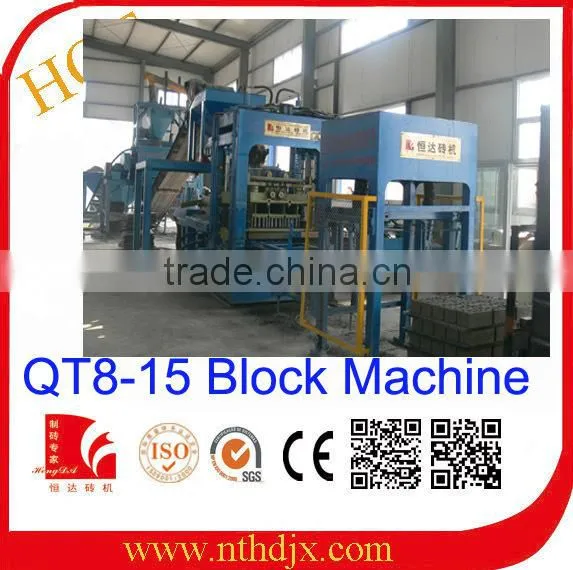

Interlocking brick block machine in botswana :This is the key of the production line.It can press the mixed material.It can make various hollow block,solid brick,paver brick and kerbston.
Designed Production lines of HDQT8-15 interlocking brick block machine in botswana
Buying tips
We have two kinds of brick machine, one produce automatic clay brick machine, another produce interlocking brick block machine in botswana , when you want to buy, please tell me
1. You need clay brick machine or multi-function paver block machine price ?
2. Your block size( length, width and height)
3.Your block picture and block production
My contact information
Name: Maggie
Mobile(whatsapp): 0086-18921625078
Skype: maggie88811
We are professional clay brick making machine, interlocking brick block machine in botswana and block pallet manufacturer, if you are interested, please come here.
