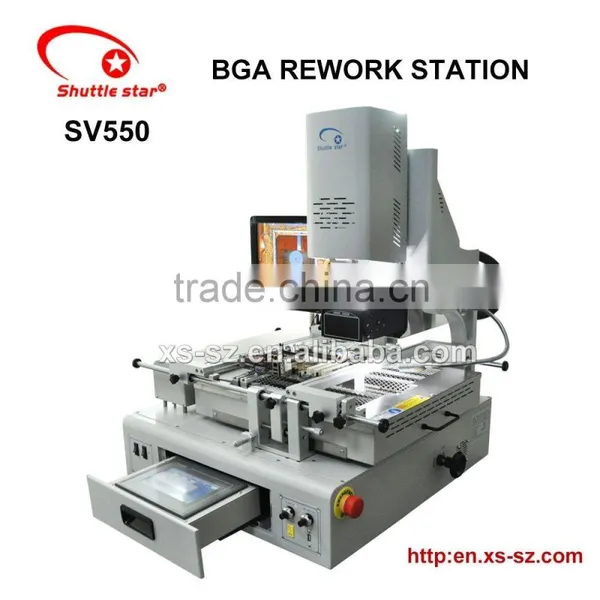

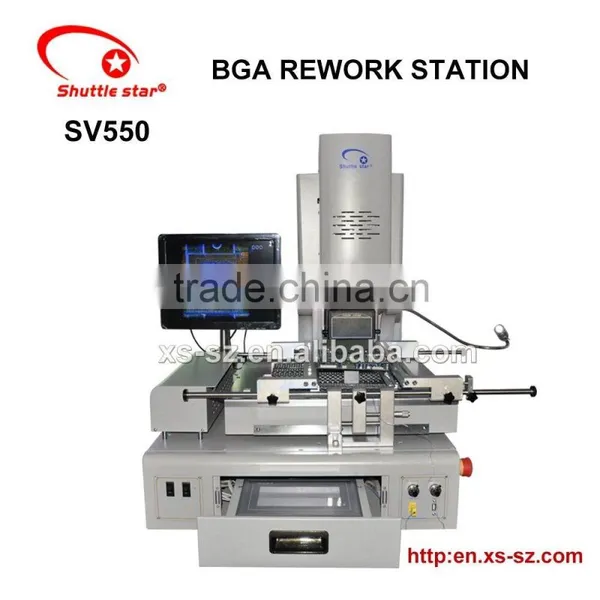

Brand Shuttle Star bga rework system welding machine can be adjustable to repair all kind of chips
Specification
| PCB Size | W20*D20 ~ W550mm x D500mm |
| Workable area | W550*D500mm |
| PCB Thickness | 0.5~ 0.25mm |
| Applicable BGA | 1*1~70*70mm |
| Working table adjustment | Front/Rear ± 120mm, Left/Right ± 80mm |
| PCB locating way | Outer |
| Temperature Control | K-Type Thermocouple,Close Cycle Controlled |
| placement precision | ±0.01mm |
| Min pitch of bga ball | 0.15mm |
| Gross power | 5600W |
| Bottom IR Preheat | 3600W |
| Top heater | 1200W |
| Bottom heater | 800W |
| MAX BGA weight | 80g |
| Power supply | Single Phase, 220VAC, 50/60 Hz |
| Machine dimension | L850*W750*H630mm |
| Weight | Approx 80kg |
Illustration
Features
*Hot air heater head and mounting head are designed 2 in 1, driven by step
electric motor, have both the auto soldering and mounting function;
*Three heaters( upper/lower hot air heater, bottom IR heater) heating
independently, time and temperature can be displayed digitally on touch screen;
*Upper heater is movable, convenient for operation;
*Large movable bottom IR heating area, PCB clamps can be adjusted along with
X& Y table flexibly, the max PCB size it can handle up to 550×500mm;
*Powerful cross flow fans cool the bottom heating area rapidly with stable speed.
*Color optical system with functions of split vision, zoom in/out and micro-adjust,
equipped with aberration detection device; with auto focus and software
operation function, 27 X optical focus, able to rework BGA sized up to
70×70mm;
* Embedded industrial computer, touch screen interface, PLC control, real-time
profile display, able to display set profile and 5 practically tested profile at the
same time; can analyze the five practically-tested profiles, and compare them
with the history saved profiles;
*Color LCD monitor; big size screen, easy to operate; Connect USB mouse, easy
to operate
*Built-in vacuum pump; 60 °rotation in φ angle, mounting nozzle is
micro-adjustable;
*8 segments of temperature up(down) and 8 segments constant temperature
control, profile saving is unlimited in the industrial computer;
*Suction nozzle can identify material and mounting height automatically, and can
control the air pressure within a small range;
*Equipped with different hot air nozzles, easy to replace and able to locate in any
angle;
*Can handle 775 socket, 478 socket, XBOX360, PS2/3 CISCO Sever etc.
Detail Show
Heating system
Three independent temperature zones, (top hot air heating, under hot air heating, and bottom IR heating), temperature and time can be displayed digitally on the touch screen, able to rework CGA
Optical Camera with laser positioning:
1.Optics camera with Laser light can help put BGA chip on proper position, no need the help of silk-screen frame on PCB and lots of BGA rework experience;
2.HDMI Port, 1080P digital imaging technology,ensure BGA chip and PCB high definition display on LCD screen,Make sure the solder ball and pad one by one overlay;
3.Movable Camera,easy operation
4.With a beam split, zoom in, zoom out and micro-adjust functions, 270X digital zoom.
5.Mounting accuracy within ±0.01mm,Min pitch of BGA ball 0.15mm.
Application:
1. Seperate IC from PCB (IC including BGA/LGA/QFN etc)
2. Placement IC to PCB --Flip chip
3. BGA Reballing
Nozzle
Different-sized nozzles for different-sized BGAs,for particular component, nozzle can be custom-made.
Accessories show
1 Year Warranty all round the World
Shuttle Star offers free lifelong maintenance in our office and training for maintenance
