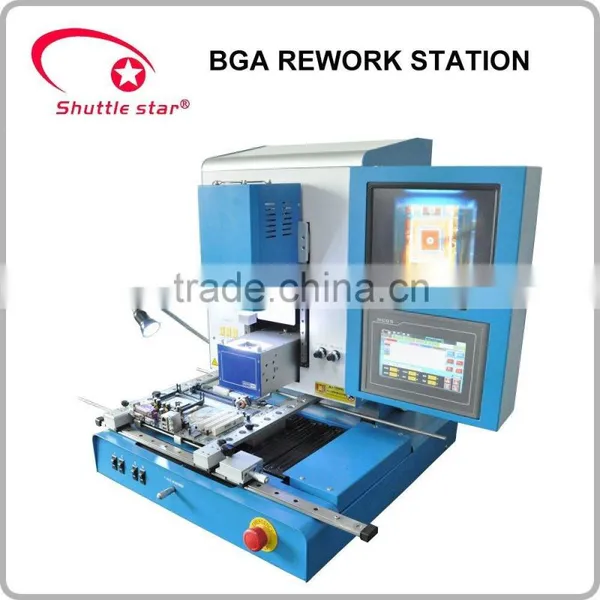

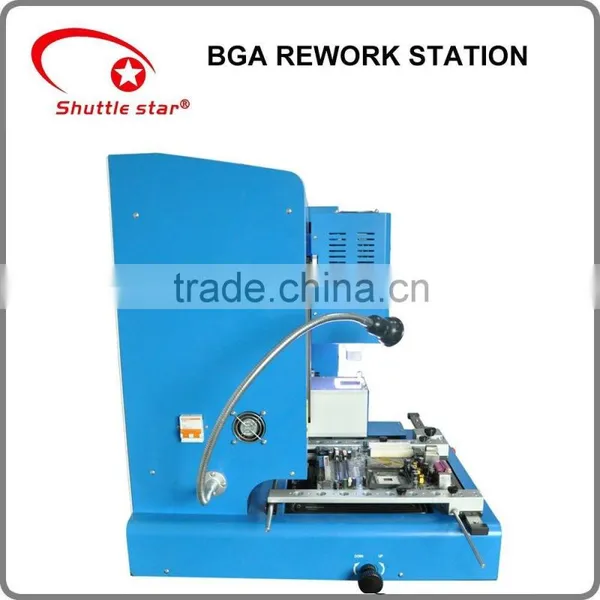

Optical Infrared Hot Air Soldering Station Smart Repair System for Digital Color tv Mainboard
- Shenzhen/Hongkong
- Money Gram Credit Card
You May Like
-
High Performance Hot Air Rework Station Mobile Repairing Tool for Htc Motherboard
-
High Performance Semi-automatic Lcd Repair Machine RW-SV550 for Smartphone
-
Shuttle Star Semi-auto Bga Hot Air Smd Rework Station RW-SV550 for Digital Cellphone
-
Shuttle Star RW-SV550 Automatic Welding Equipment for Iphone 5s Unlocked Motherboard 16gb/32gb
-
Shuttle Star High Precision Optical Alignment Infrared Bga Rework Station for Iphone 5s Unlocked Motherboard 16gb/32gb
-
Shuttle Star RW-SV550 Ccd Camera BGA Repair Machine for Samsung Galaxy Note N7000 Motherboard
Product Details
| Place of Origin | Guangdong, China | Brand Name | shuttle star | |
| Model Number | RW-PS400 | Voltage | 220V | |
| Current | 10A | Rated Capacity | 5.6KW | |
| Rated Duty Cycle | 100% | Dimensions | L600*W600*H750mm | |
| Weight | Approx. 85Kgs | Usage | BGA rework, BGA Rework | |
| Certification | CE Certificate | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Optical infrared hot air soldering station smart repair system for digital color tv mainboard
Specifications: (PS400) | |
PCB dimension | W20*20~350*350mm |
PCB thickness | 0.5~4mm |
Working table adjustment | +/-10mmforward/backward,+/-10mm left/right |
Temperature control | K-type thermocouple, close cycle controlled |
PCB locating way | Outer or Jip |
Area heater | Infrared 3000w |
Top heater | Hot gas 1000w |
Bottom preheat | Hot gas 1000w |
Power supply | Single-phase 220,50/60Hz. 5kw |
BGA dimension | 1*1~70*70mm |
Min pitch of BGA ball | 0.15mm |
Placement precision | 0.01mm |
Max BGA weight | 180g |
Machine dimension | L600*W600*H750mm |
Machine weight | Approx. 110kg |

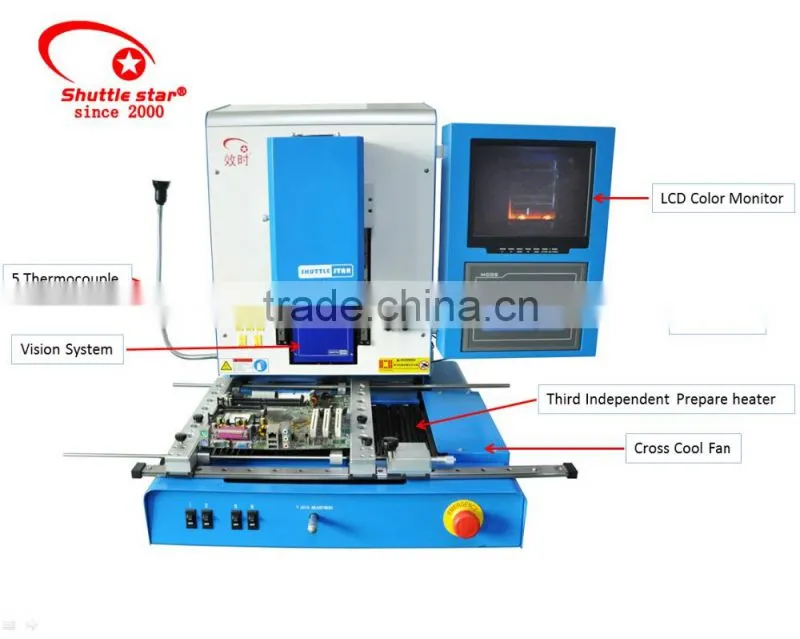

Illustration
Details Show

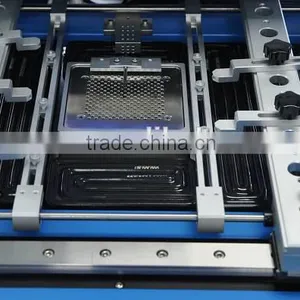

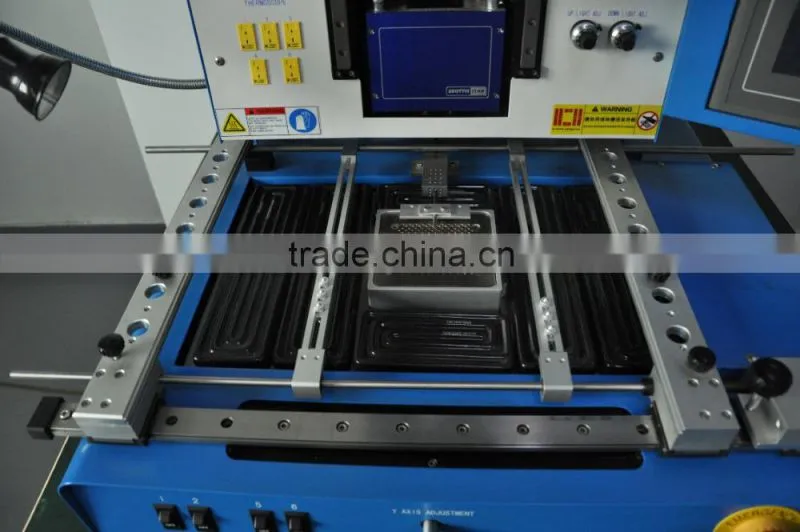

Three temperature zone
1) Top hot air heater
2) Bottom hot air heater
3) Bottom IR preheat - Prevent PCB board deforming ,and we use import IR wave gilding heater plate with high temperature glass,temperature increasing and decreasing rapidly ,it can protect PCB board .
Auto function
auto pick-up,auto soldering,auto desoldering and auto placement function - PLC control

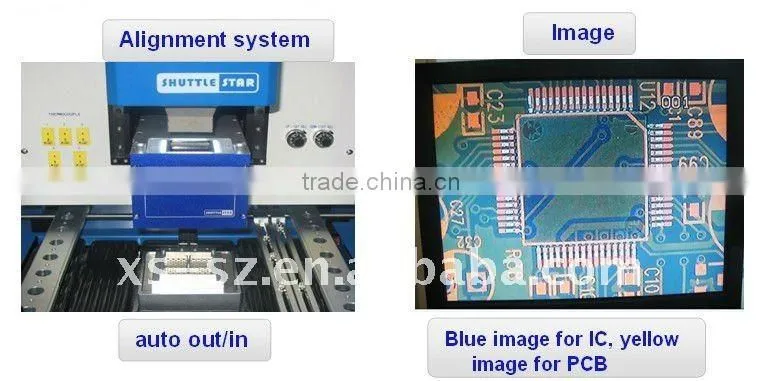

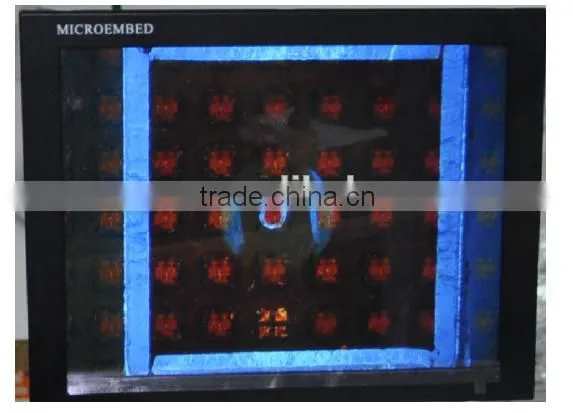

HD color optical camera system
1) Split vision
2) Zoom in/out and micro-adjust
3) Equipped with aberration
4) Detection device
5) With auto focus and software operation function

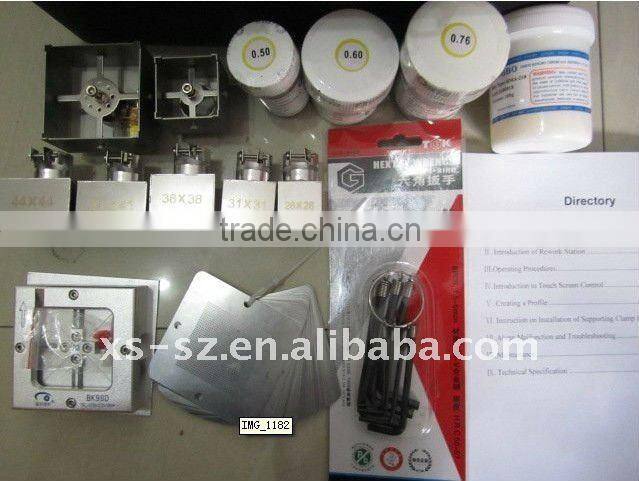

Accessories show
Shuttle star industrial Co.,Ltd ,the company expert in bga rework station for 17years,the reliability and technology deposit are all recognized at home and abroad, High quanlity assurance is our task and also what we are doing now. so if you are looking for bga rework station,we are definitely your best choice.
Certifications
All of our ic replacement Station is approved by CE and ISO Certification.

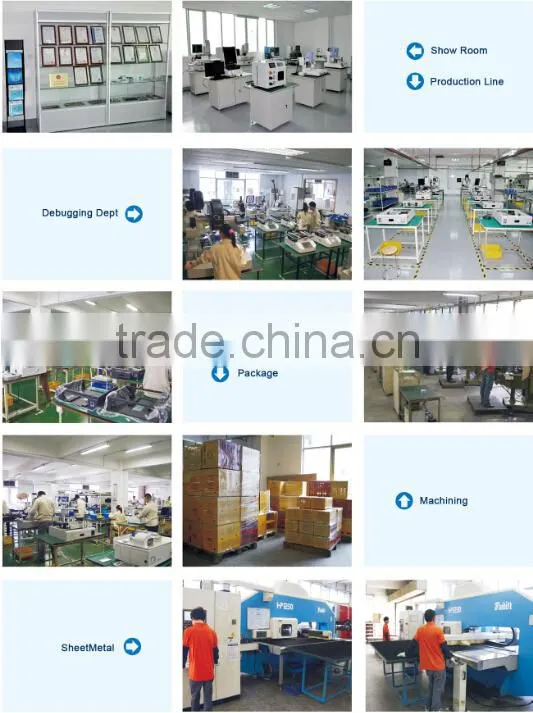

Customers Visit
some customers from home and abroad come to visit our factory, we arrange the technician to show the machine operation. Free training is available, many oversea customer train in our factory. Warmly welcome you to visit our factory !
1. Shuttle Star will offer free training on operating personnel and service within the warranty, but all the travelling cost and relative cost will be on the buyer’s account if incurred.
2.Shuttle Star offers free lifelong maintenance in our office and training for maintenance.through telephone, email and online webcam.
3.Under warranty, Shuttle Star sends spare parts to the customer and affords all the cost and freight ifany spare part is broken.
4.Beyond warranty, Shuttle Star charges for the spare parts and the freight for shipping will be on the buyer’s account if customer needs our spare parts.
Shipping
DHL, UPS, TNT, EMS,By Sea,By Air,we will choose the cheapest for you.
How long judge by the city.
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guidance that show you how to use machine. Very easy to use it.If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5) You are a trade company or a manufacturer?
We are a manufacture, with our own skilled R&D department.
Krystal ma:
Wechat:xika1994
Skype:krystal19942016
Whatsapp:0086 15207156410
We suply many kinds of BGA Rework Station with top quality and best price , If you have any more needs , welcome to contact us .
