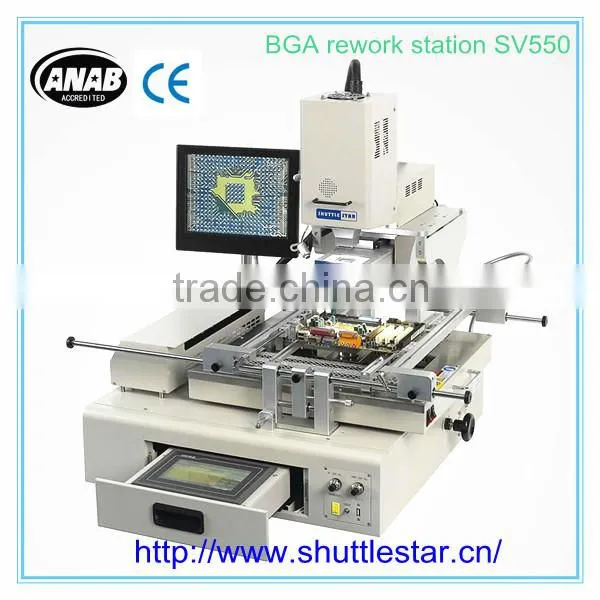

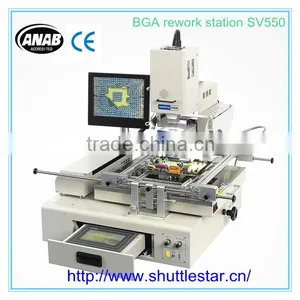

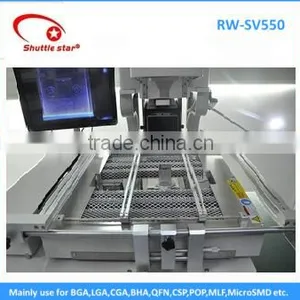

Shuttle Star Semi-auto bga hot air smd rework station RW-SV550 for digital cellphone

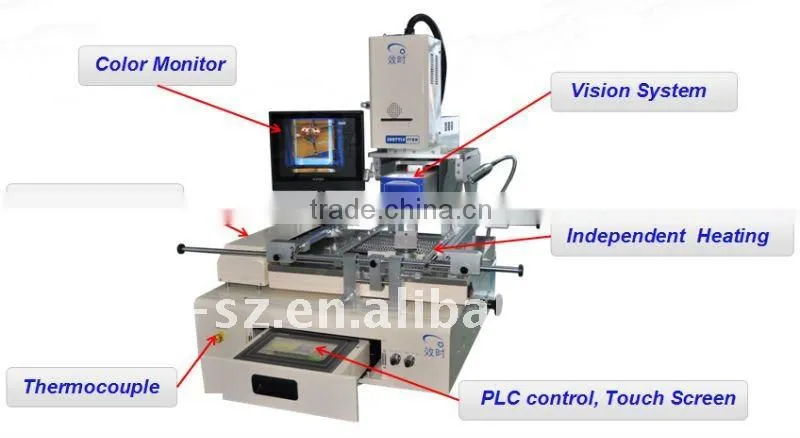

Illustration
Specification
| PCB Size | W20*D20 ~ W550mm x D500mm |
| Workable area | W550*D500mm |
| PCB Thickness | 0.5~ 0.25mm |
| Applicable BGA | 1*1~70*70mm |
| Working table adjustment | Front/Rear ± 120mm, Left/Right ± 80mm |
| PCB locating way | Outer |
| Temperature Control | K-Type Thermocouple,Close Cycle Controlled |
| placement precision | ±0.01mm |
| Min pitch of bga ball | 0.15mm |
| Gross power | 5600W |
| Bottom IR Preheat | 3600W |
| Top heater | 1200W |
| Bottom heater | 800W |
| MAX BGA weight | 80g |
| Power supply | Single Phase, 220VAC, 50/60 Hz |
| Machine dimension | L850*W750*H630mm |
| Weight | Approx 80kg |
Detail Show

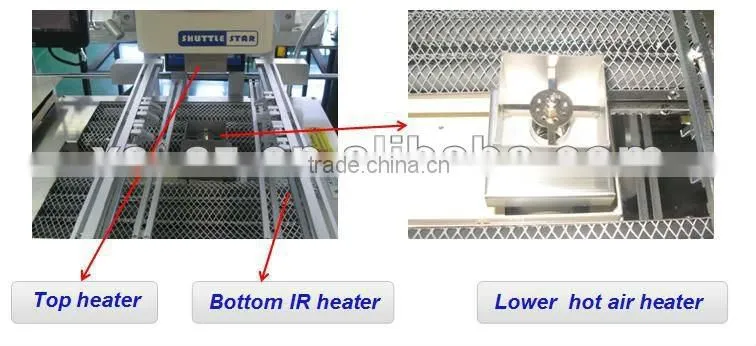

Heating system
Three independent temperature zones, (top hot air heating, under hot air heating, and bottom IR heating),
temperature and time can be displayed digitally on the touch screen, able to rework CGA

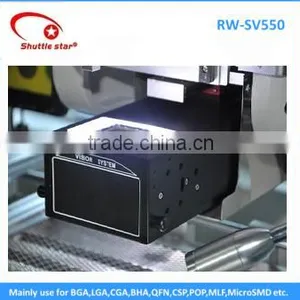

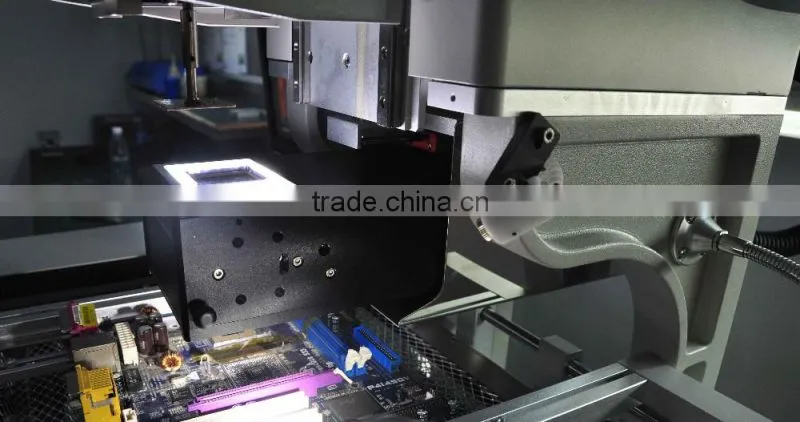

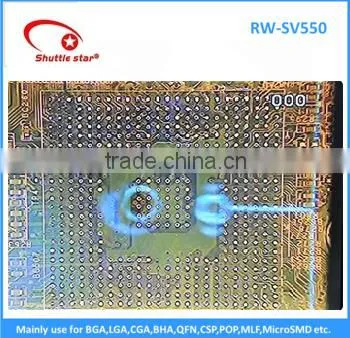

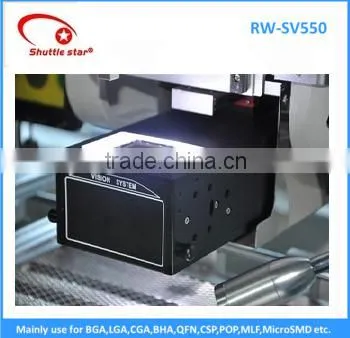

Optical Camera with laser positioning:
1.Optics camera with Laser light can help put BGA chip on proper position, no need the help of silk-screen frame on PCB and lots of BGA rework experience;

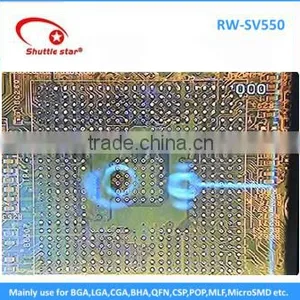

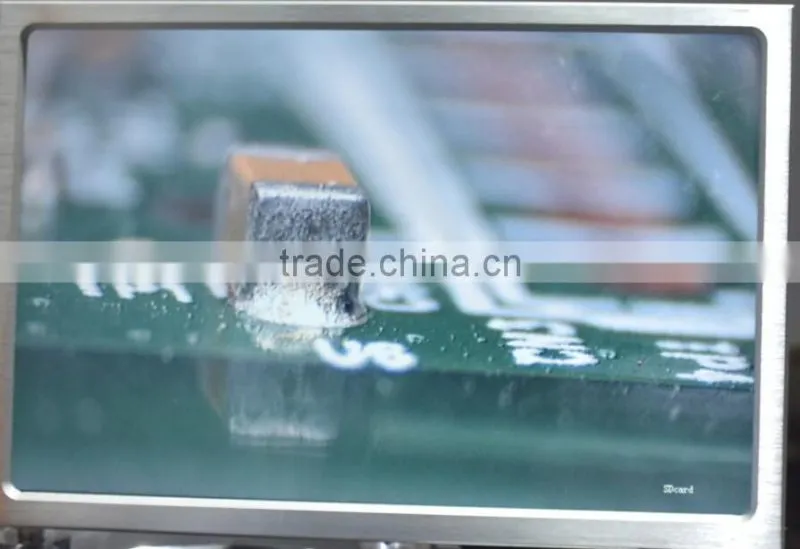

2.HDMI Port, 1080P digital imaging technology,ensure BGA chip and PCB high definition display on LCD screen,Make sure the solder ball and pad one by one overlay;
3.Movable Camera,easy operation
4.With a beam split, zoom in, zoom out and micro-adjust functions, 270X digital zoom.
5.Mounting accuracy within ±0.01mm,Min pitch of BGA ball 0.15mm.

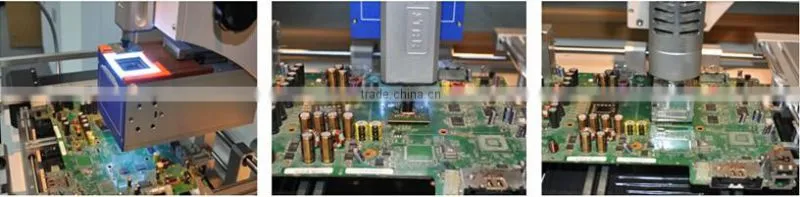

Application:
1. Seperate IC from PCB (IC including BGA/LGA/QFN etc)
2. Placement IC to PCB --Flip chip

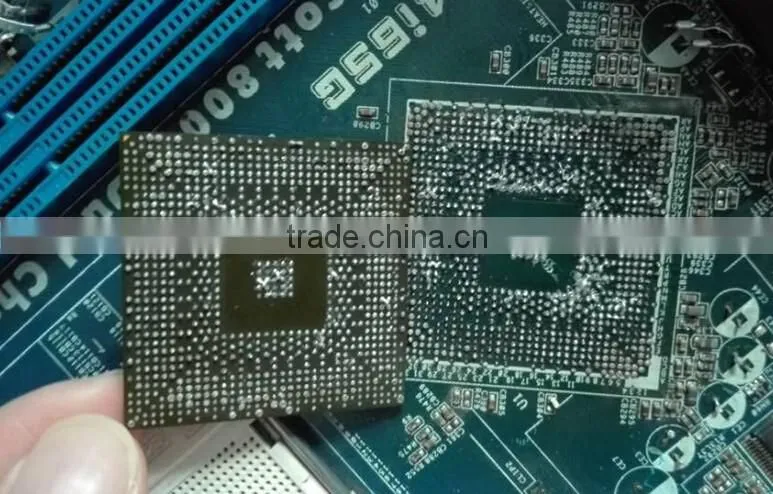

3. BGA Reballing

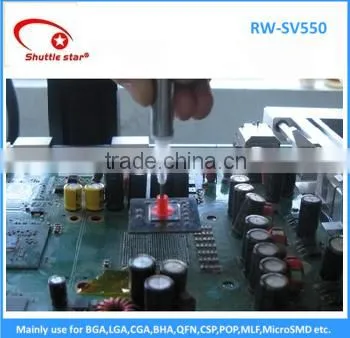

Nozzle
Different-sized nozzles for different-sized BGAs,for particular component, nozzle can be custom-made.
Features
bga repair machine
optical alignment system
laser positioning
High precision
CE;ISO9001 approved

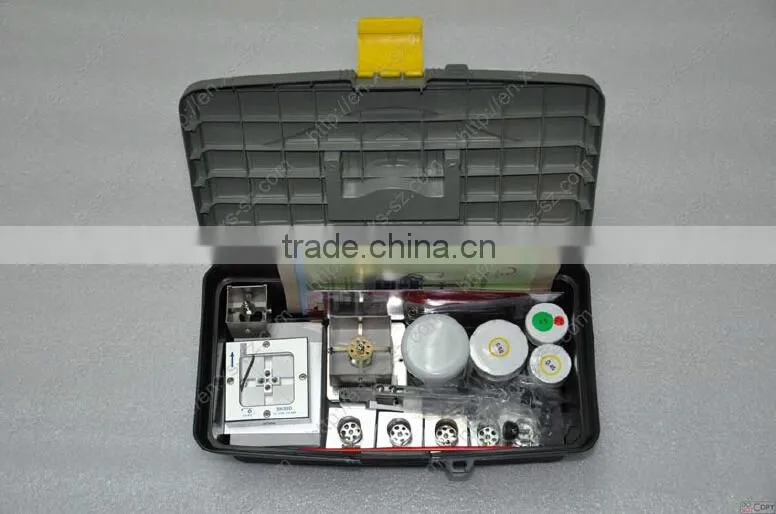

Accessories show
Shuttle star industrial Co.,Ltd ,the company expert in bga rework station for 17years,the reliability and technology deposit are all recognized at home and abroad,
High quanlity assurance is our task and also what we are doing now. so if you are looking for bga rework station,we are definitely your best choice.
Certifications
All of our ic replacement Station is approved by CE and ISO Certification.
Customers Visit
Some customers from home and abroad come to visit our factory, we arrange the technician to show the machine operation.
Free training is available, many oversea customer train in our factory. Warmly welcome you to visit our factory !
1 Year Warranty all round the World
Shuttle Star offers free lifelong maintenance in our office and training for maintenance
1 , All machines will be packaged in wooden box if the buyers ask no special demand.
2, It is free shipping in mainland.
3,Shipping by DHL,UPS,TNT,EMS,by air or sea,we will choose best for you.
If you want to know more about us,welcome contact with me.
Thank you for your time
