Z Purlin Machine With PLC Control System From JBL

Cold Roll forming Machines for production the steel Structural frame products - C and Z purline in Building construction industry, The Z Channel Steel Roll Forming Machine complete with hydraulic cutting and punching hole devices by PLC system, only through changing the spacer of the rollers. Our roll formers cover the range of material types and thicknesses for any market. The whole roll form line is consisted of de-coiler, material feeding entrance, flatting device, holes punching equipments, main roll forming machine, hydraulic cutting part, hydraulic system, PLC control system and run out table, etc.
Z purline forming machine Main Parameters
Feeding material Thickness:1.4-3mm (Q195, Q235)
Forming station:18 setsMaterial of roller:Quality moulds steel, polished and coated with chrome, hardness HRC58-62
Forming Roller Stations:20 Stations, quality casting steel after precision processed.
Main power:15KW
Hydraulic station power:5.5KW
Hydraulic pressure:10-12Mpa
Feeding & straightener power:4KW
Z Purlin:
Width: 100-300mm
HIGH:40-85mm
Product length tolerance
2M+/- 1.0mm
Line speed:10-15m/min (not including cutting material time)
Size of main machine:11000×1800×1800mm
Equipment weight:7000kg

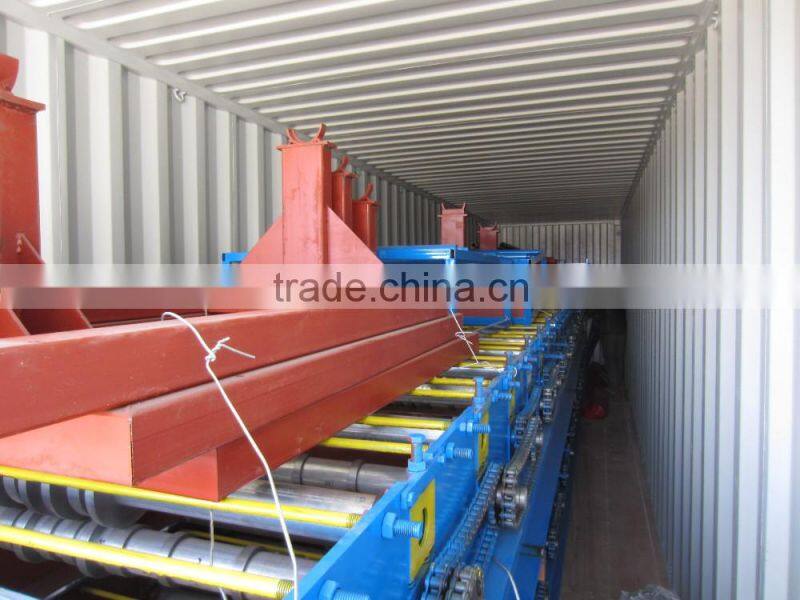

 Container packaging of the line suitable for overseas shipping.

 1 year warranty.

We can arrange our technician  to go abroad,but all the relevant cost should in buyers payed.

We provide technical support for whole life of our machine.

 BOTOU JINBAILI ROLL FORMING MACHINE is sppecially inROLL FORMING MACHINE 15 years.Main products are glazed tile roll forming machine,C Z U purlin machine,highway guardrail machine,floor deck forming machine,light steel keel beam machine.Widely used in cinstruction,decorateand simple huts.High quality low price.
