LOW Price Highway Guardrail Roll Forming Machine

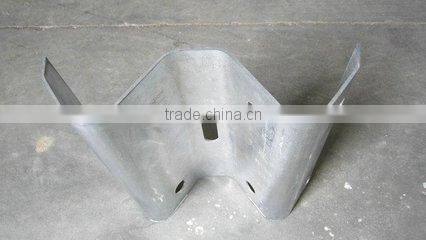

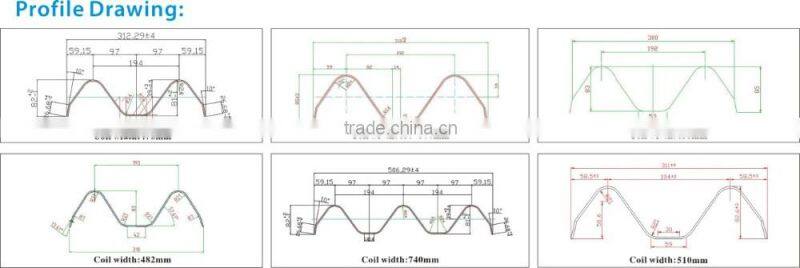

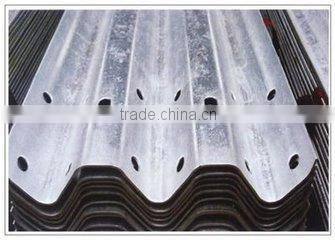

 highway guardrail roll forming machine

Main technical parameter

1.manual decoiler:  manual  expanding, passive uncoil

 Inner Diameter. Φ460-520mm

 Outer Diameter. Φ1400mm

2.weight capacity of decoiler:6-9 T

3.machine stand: welded  shape steel

4.type of forming machine : wallboard type with chain transmissionfloor deck

5.diameter of shaft: 85mm

6.material of shaft: 45 steel

7.chain:20A

8.motor power of forming machine:11KW*2

9.forming speed:10-12m/min

10. roll station:30 stations(according profile)

11. material of roller : 45 steel

12. surface of roller coated with chrome 0.05mm thickness

13. motor of hydraulic station:4KW

14. hydraulic oil pump: bear pump CB-E314

15. type of cutting: hydraulic cutting

16. material of cutting blade:Cr12

17. heat treatment of cutting blade:HRC58°-60°

18. thickness of steel coil:0.6-1.5mm

19. tolerance of length:10±2mm

20. transducer: Panasonic

21. computer adopts Panasonic PLC

22. computer operating board adopts Touch screen

23. Voltage: 380V 3 phase 50HZ or at buyer’s requirement

Technical process

Manual decoiled→ feed with guide→ roll forming→ cutting with fixed length→ output with table

Equipment

Manual decoiler, main forming machine, hydraulic cutting device, hydraulic station, PLC computer control, output table

The time of producing: 30days after deposit

Payment  : T/T

First deposit T/T 30% when sign the contract, then 70% T/T before delivery

Warranty: 1 year and life-long maintainance

*Installation and debugging: We will send professional engineer to make installation and debugging, Buyer pay our engineer each one 50 USD/day, and provide accommodation, food and the round-trip ticket fee.

* Installation Days: about 5-7 days

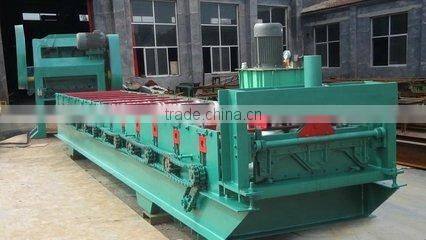

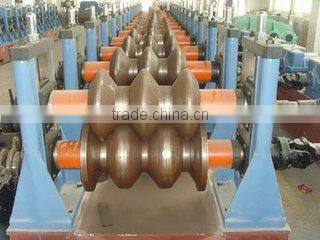

Machine picture for reference:
