crash barrier forming machine w beam guardrail roll forming machine
CE CERTIFICATION HIGHWAY GUARD RAIL ROLL FORMING MACHINE Equipment
We are specialized in producing W purline fast guardrail roll forming machine, including coiler machining, cold roll forming machine, automatic product line etc. We had supplied thousands of machines to domestic and foreign countries, such as environmental protection, automobile, steel, warehouse, and logistics industry.
This highway guardrail roll forming machine mainly consists of decoiler, guide device, levelling system, hydraulic station, punching, roll forming system, cutting system and runout table.
Material Thickness: 2-4mm
Forming Station: 15 excluding the feeding rollers and leveling rollers
7 Rollers leveling
Principal Axis Diameter: 100mm
Working Speed: 10-12m/min
Main Power: 30KW
Leveling Power: 2.2KW
Hydraulic Power: 15KW
Dimension of Machine: 11500MM X 2000 MMX1600MM ( LXWXH )
Gross Weight of Machine: about 18 Ton
Voltage: 380V, 3 Phase 50Hz
Main Components
| Hydraulic Decoiler | 1 set |
| Leveling and Feeding Guide | 1 set |
| Punching Device | 1 set |
| Roll Forming Machine | 1 set |
| Hydraulic Cutting | 1 set |
| Spare Coupling | 1 set |
| Runout Table | 3 pc 1m*1m |

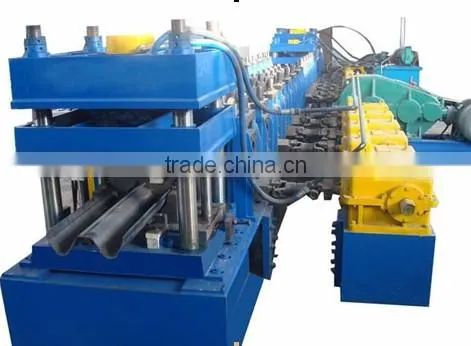

Highway Guardrail Roll Forming Machine
The guard rail roll forming machine can be designed as two or three wave profiles in one machine,you just need to add some stations at the end of the machine . The products of the guard rail roll forming machine are used as guardrails for the both sides of the highway.
Machine flow chart:
Product Parameters
| Specification | ||
| model | JBL-85-310 | Decoiler |
| Number of station | 19 stations | Infeeding leveling applicator |
| Thickness | 1.5-3.0mm | Punching |
| Main power | 22-30kw | Roll Forming unit |
| Dimensions | Appro 13.5m*2.4m*1.6m | Hydraulic Cutting |
| Forming speed | 10-18m/min | Output Table |
