Internal Rubber Mixer
- 280 Set / Sets per Month
- Qingdao Seaport
- T/T Credit Card
Product Details
Condition: | New | Type: | Rubber Mixer | Place of Origin: | Shandong, China |
Brand Name: | PLASTSEA | Model Number: | F270 | Voltage: | 380V/50HZ |
Certification: | CE | Warranty: | ONE YEAR | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1.Drop-type discharge2.Pneumatic and Hydraulic ram
3.Intermeshing rotor & tangential rotor
4.Top level rubber mixer in China

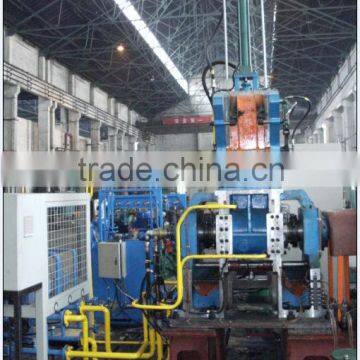

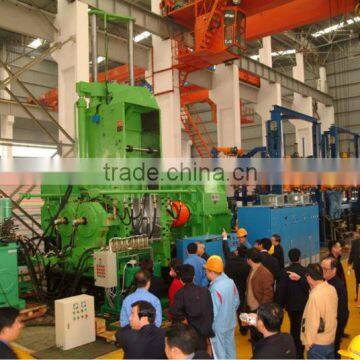

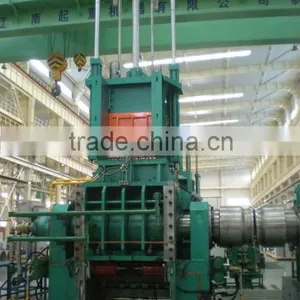

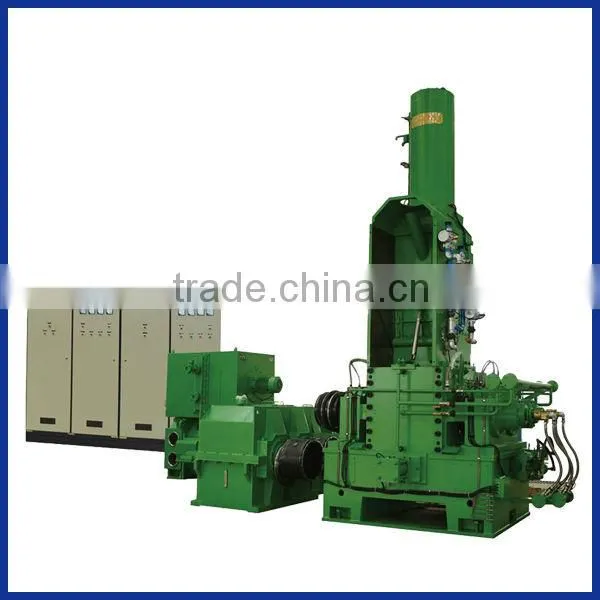

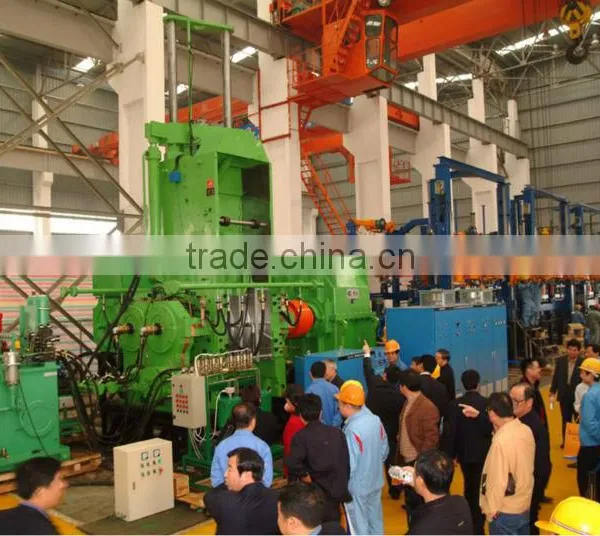

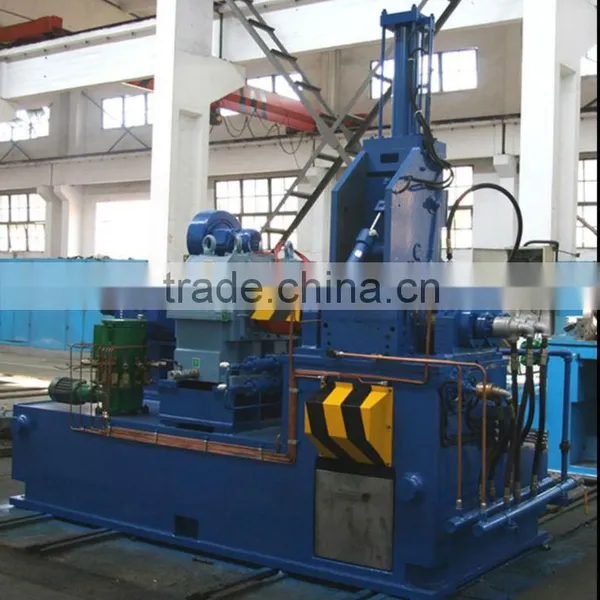

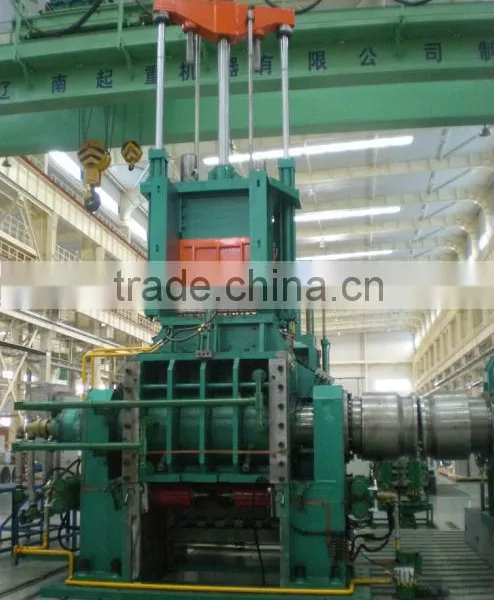

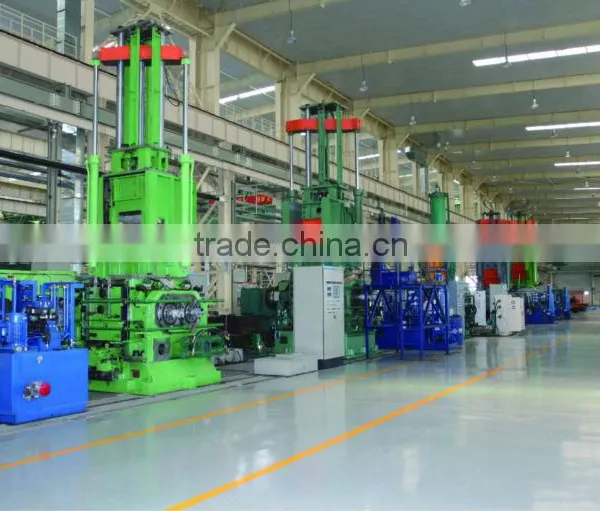

Internal Rubber Mixer
This mixer is used for master batch mixing of tyre industry.
We are the best supplier for the rubber mixer in China.
We can supply the mixer as below:
GK series (Technology W&P):
N type: GK-110N,GK-225N,GK-270N,GK-300N,GK-400N,GK-430N,GK-650N ,etc.
E type: GK-5E,GK-20E,GK-45E,GK-90E,GK-135E,GK-190E,GK-250E,GK-320E,GK-420E,GK-580E,etc.
F series (Technology Farrel)
F270L,F370L,F650L, etc.
XM-160,XM-20,XM-370,XM-650 ,etc.
The rubber mixers which we supply are the top level mixers in China industry, and also are used in many famous tyre factories around the world.
GK-E type (Most suitable for Master batch) Plastsea
Model Parameter | GK-45E | GK-90E | GK-E190 | GK-250E | GK-320E | GK-420E | GK-580E |
Total Volume of Mixer (L) | 47 | 87 | 195 | 250 | 320 | 450 | 580 |
Fill factor | 0.65 | 0.65 | 0.65 | 0.65 | 0.65 | 0.7 | 0.65 |
Rotor speed (r/min) plastsea | 10-60 | 10-60 | 10-60 | 10-60 | 10-60 | 10-60 | 10-45 10-60 |
Ram Pressure (Mpa) | 0.5 | 0.55 | 0.54 0.58(Hyd.) | 0.51 | 0.62 | 0.55 | 0.55 |
Max production capacity (t/h) Plastea | 0.72 | 1.36 | 3.04 | 3.9 | 5 | 7.5 | 10.4 |
Compressed air pressure (Mpa) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
|
|
Air consumption (m3/h) | 92 | 140 | 432 | 423 | 604 | plastsea |
|
Cooling water pressure (Mpa) | 0.2-0.4 | ||||||
Cooling water consumption of main machine (m3/h) | 20 | 25 | 40/50 | 50 | 60 | 60 | 70 |
Steam pressure (Mpa) | 0.3 |
| 0.3 | ||||
Power of main motor (KW) | 280 | 520 | 1100 | 1320 | 1680 | 2x1250 | 2x1250 2x1250 |
Overall size(without motor) m | 3.9x2.4x3.7 | 4.6x2.3x4 | 5.9x3.4x5.6 | 6.1x4x6.1 | 6.6x4.6x6.5 | 6.7x4.6x6.3 | 7.5x4.8x7.5 |
Weight (without motor and gearbox) T | 8.5 | 11 | 26.5 | 33 | 38 | 50 | 60 |
|
|
|
|
|
|
|
|
Model Parameter | XM-160 | XM-270 (F270) | XM-370 (F370) | XM-650 |
Mixing chamber total volume L | 160 | 250 | 425 | 650 |
Mixing chamber working volume L | 120 | 187.5 | 319 | 487.5 |
Cooling water consumption m3/h | 45 | 80 | 110 | 110 |
Main motor power KW | 355 | 1250 | 2x1250 | 2x1500 |
Speed of motor r/min | 740 | 100-1000 | 100-1000 | |
Voltage V | 6000AC | 10000AC 750DC | 750DC | |
Discharge method | Drop type | |||
Mixing Chamber cooling type | Mixing chamber is drilled for cooling | |||
Cooling mode of rotor | Hollow | Hollow/Forced | Forced | |
Type of ram | Hydraulic/Pneumatic | Hydraulic | ||
Standard rotor | Two wing | SG,SZ,TB,SB | SG | |
Overall size m | 8x3.3x5.2 | 8.6x4.3x6.5 | 10.7x4.9x7.4 | 12.6x5.8x7.5 |
Weight (without electric part) | 31 | 58 | 76 | 125 |
Above parameter is only part. If you need more parameters and size of our rubber mixer, please contact us!
Please send us your detailed requirement to get our best offer.
