Home > Products > Rubber Mixing > two-roll rubber mixing mill with stock blender
two-roll rubber mixing mill with stock blender
- 500 Set / Sets per Month
- QINGDAO SEAPORT
- T/T
Product Details
Condition: | New | Type: | Open Mixing Mill | Place of Origin: | Shandong, China |
Brand Name: | PLASTSEA | Model Number: | XCK-660 | Voltage: | 380V |
Certification: | CE | Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1.Used for Mixing the rubber material for tyre industry and rubber product industry.2.Stable Quality
3.Energy saving

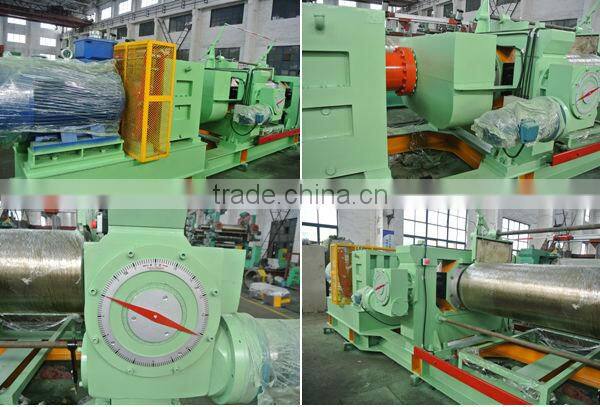

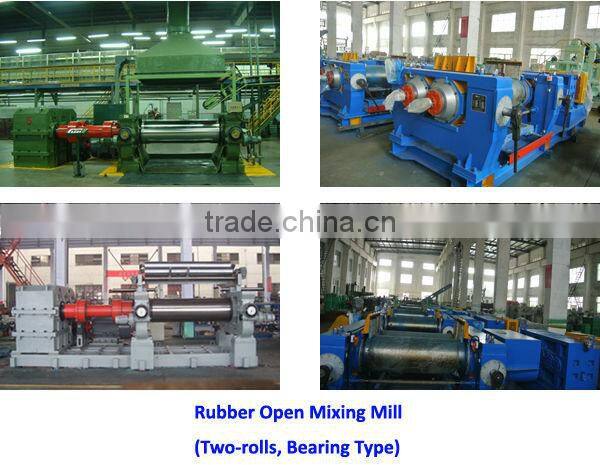

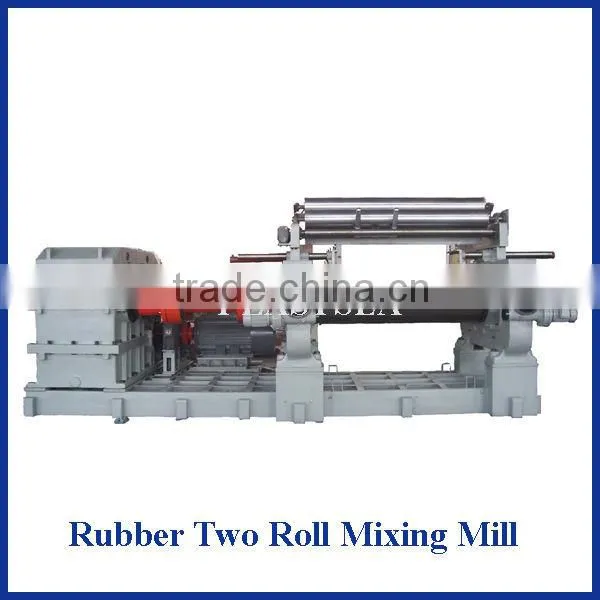

Two roll rubber mixing mill with stock blender
It's used for the rubber / plastics mixing and warming mixing and sheeting mixing.

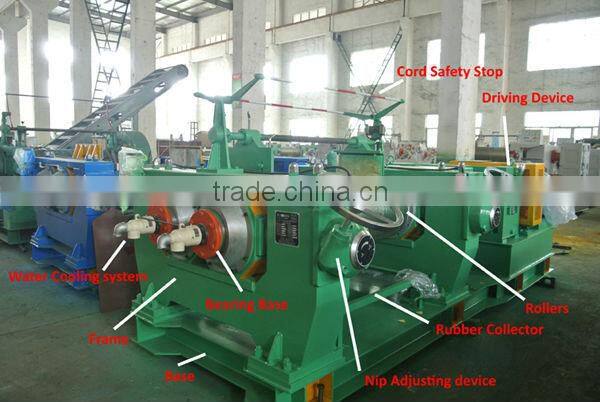

Main Part:
Main Parameter
Type | Roller Dia. x Length (MM) | Front roller linear speed (M/MIN) | Ratio of roller | Feeding quantity per batch(KG) | Max nip distance (MM) | Power of motor(KW) | Overall size (M) |
X(S)K-160 | 160x320 | 8.95 | 1:1.35 | 1-20 | 4.5 | 5.5 | 1.1X0.9X1.3 |
X(S)K-250 | 250x620 | 15.20 | 1:1.10 | 10-15 | 8 | 18.5 | 3.2X1.5X1.3 |
X(S)K-360 | 360x900 | 16.26 | 1:1.25 | 15-20 | 10 | 30 | 3.9X1.7X1.7 |
X(S)K-400 | 400x1000 | 18.65 | 1:1.27 | 25-35 | 10 | 40 | 4.4X1.7X1.9 |
X(S)K-450 | 450x1200 | 23.85 | 1:1.27 | 30-50 | 8 | 55 | 5.1X1.9X1.9 |
X(S)K-560 | 560/510 x1530 | 27.61 | 1:1.315 | 50-60 | 12 | 95 | 5.8X2.3X2 |
X(S)K-550 | 550x1500 | 27.175 | 1:1.25 | 50-65 | 15 | 90(110) | 6.0X2.1X1.6 |
XKY-660 | 660x2130 | 32.45 | 1:1.09 | 165KG/batch | 15 | 180 | 7.5X3.7X2.1 |
XKR-660 | 660x2130 | 28.60 | 1:1.24 | 165KG/batch | 15 | 245 | 7.5X3.7X2.1 |
XK-710 | 710x2200 | 31.9 | 1:1.09 | 350KG/batch | 15 | 280 | 7.1x3.8x3 |
XK-760 | 760x2540 | 33.23 | 1:1.09 | 350KG/batch | 15 | 315 | 7.1x3.8x3 |
XK-810 | 810x2540 | 31.9 | 1:1.09 | 350KG/batch | 15 | 355 | 7.1x3.8x3 |
More detailed parameter, please ask us for it.

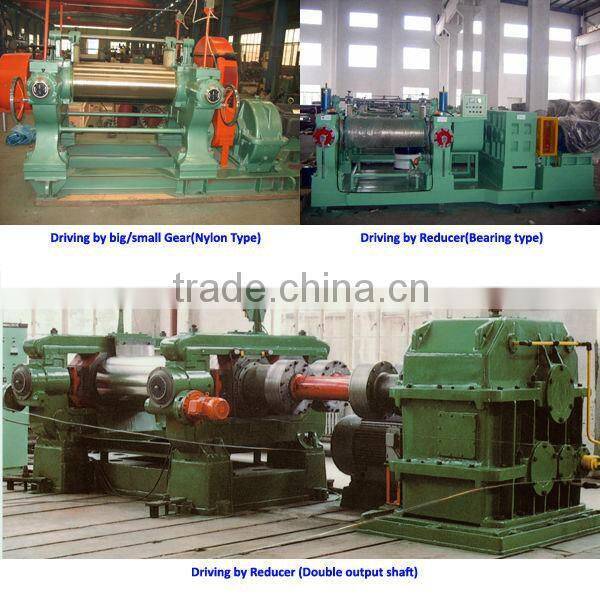

Structure of Open Mixing Mill (Different Structure has big different cost)
If you have such inquiry, please tell us. We will offer more details and the competitive quotation as request.
