Lab rubber mixing mill
- 1200 Set / Sets per Month
- QINGDAO SEAPORT
- T/T
Product Details
Condition: | New | Type: | Open Mixing Mill | Place of Origin: | Shandong, China |
Brand Name: | PLASTSEA | Model Number: | XCK-660 | Voltage: | 380V |
Certification: | CE | Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
lab rubber mixing mill1.XK-160 (6")
2.Used in lab for testing the rubber
3.Stable quality with reliable performance

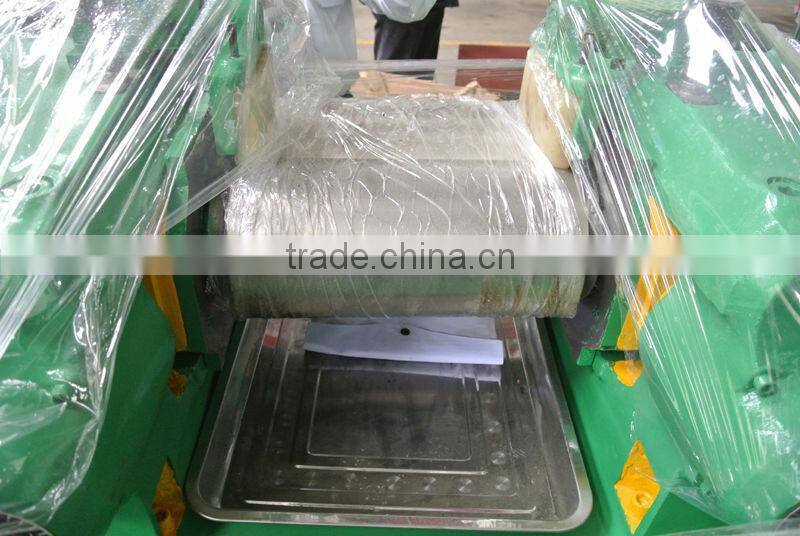

Lab Rubber Mixing mill
It's used for mixing the rubber in lab.
Our rubber mixing mills have been supplied for many famous rubber and tyre factories around the world, like bridgestone, Continental,etc.

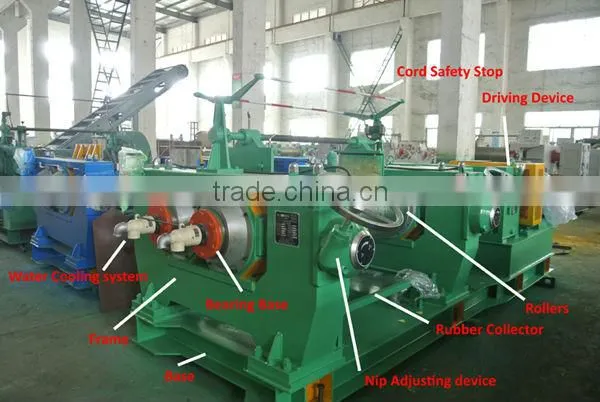

Main Part:
Main Parameter
Type | Roller Dia. x Length (MM) | Front roller linear speed (M/MIN) | Ratio of roller | Feeding quantity per batch(KG) | Max nip distance (MM) | Power of motor(KW) | Overall size (M) |
X(S)K-160 | 160x320 | 8.95 | 1:1.35 | 1-20 | 4.5 | 5.5 | 1.1X0.9X1.3 |
X(S)K-250 | 250x620 | 15.20 | 1:1.10 | 10-15 | 8 | 18.5 | 3.2X1.5X1.3 |
X(S)K-360 | 360x900 | 16.26 | 1:1.25 | 15-20 | 10 | 30 | 3.9X1.7X1.7 |
X(S)K-400 | 400x1000 | 18.65 | 1:1.27 | 25-35 | 10 | 40 | 4.4X1.7X1.9 |
X(S)K-450 | 450x1200 | 23.85 | 1:1.27 | 30-50 | 8 | 55 | 5.1X1.9X1.9 |
X(S)K-560 | 560/510 x1530 | 27.61 | 1:1.315 | 50-60 | 12 | 95 | 5.8X2.3X2 |
X(S)K-550 | 550x1500 | 27.175 | 1:1.25 | 50-65 | 15 | 90(110) | 6.0X2.1X1.6 |
XKY-660 | 660x2130 | 32.45 | 1:1.09 | 165KG/batch | 15 | 180 | 7.5X3.7X2.1 |
XKR-660 | 660x2130 | 28.60 | 1:1.24 | 165KG/batch | 15 | 245 | 7.5X3.7X2.1 |
XK-710 | 710x2200 | 31.9 | 1:1.09 | 350KG/batch | 15 | 280 | 7.1x3.8x3 |
XK-760 | 760x2540 | 33.23 | 1:1.09 | 350KG/batch | 15 | 315 | 7.1x3.8x3 |
XK-810 | 810x2540 | 31.9 | 1:1.09 | 350KG/batch | 15 | 355 | 7.1x3.8x3 |
More detailed parameter, please ask us for it.

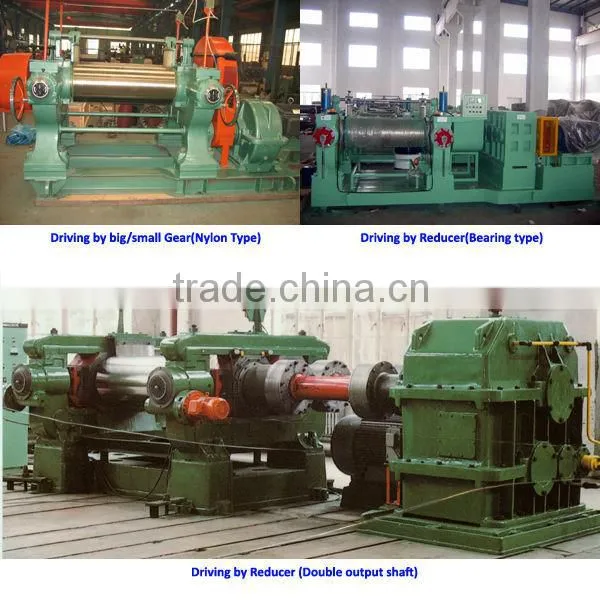

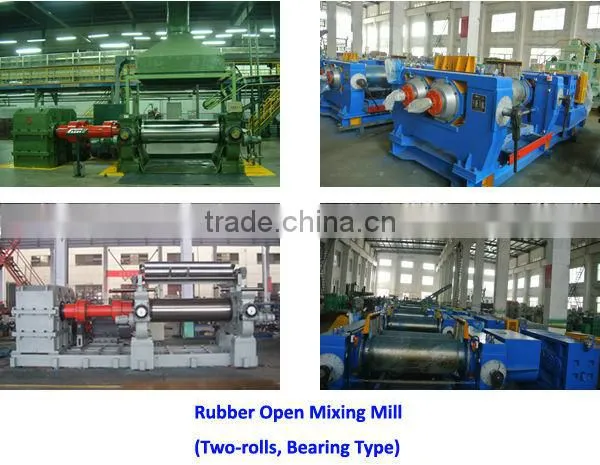

Structure of Open Mixing Mill (Different Structure has big different cost)
If you have such inquiry, please tell us. We will offer more details and the competitive quotation as request.
