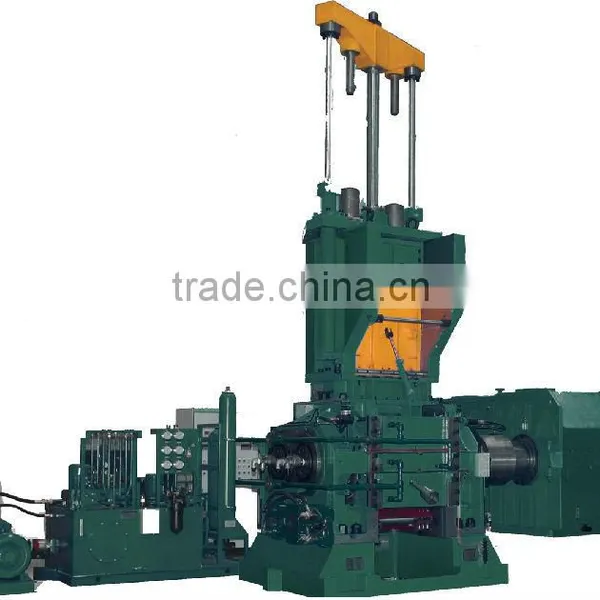

Rubber Banbury Internal Mixer

Name: Rubber Banbury Internal Mixer
Brand: PLASTSEA
SKU: 134087151
Availability: InStock

US$ 80,000 - 580,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Rubber Mixer

Place of Origin:

Shandong, China

Qingdao Plastsea International Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Seaport

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Rubber Mixer

Place of Origin Shandong, China

Brand Name PLASTSEA

Model Number F270

Voltage 380V/50HZ

Certification CE

Warranty ONE YEAR

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Rubber banbury internal mixer
1.Drop-type discharge
2.Pneumatic and Hydraulic ram
3.Kinds of rotors

Rubber banbury internal mixer

This mixer is used for final mixing and master batch mixing of tyre industry.

We can supply the mixer as below:

GK series (Technology W&P):

N type: GK-110N,GK-225N,GK-270N,GK-300N,GK-400N,GK-430N,GK-650N ,etc.

E type: GK-5E,GK-20E,GK-45E,GK-90E,GK-135E,GK-190E,GK-250E,GK-320E,GK-420E,GK-580E,etc.

F series (Technology Farrel)

F270L,F370L,F650L, etc.

XM-160,XM-20,XM-370,XM-650 ,etc.

The rubber mixers which we supply are the top level mixers in China industry, and also are used in many famous tyre factories around the world.

GK-E type (Most suitable for Master batch) Plastsea

Model Parameter	GK-45E	GK-90E	GK-E190	GK-250E	GK-320E	GK-420E	GK-580E
Total Volume of Mixer (L)	47	87	195	250	320	450	580
Fill factor	0.65	0.65	0.65	0.65	0.65	0.7	0.65
Rotor speed (r/min) plastsea	10-60	10-60	10-60	10-60	10-60	10-60	10-45 10-60
Ram Pressure (Mpa)	0.5	0.55	0.54 0.58(Hyd.)	0.51	0.62	0.55	0.55
Max production capacity (t/h) Plastea	0.72	1.36	3.04	3.9	5	7.5	10.4
Compressed air pressure (Mpa)	0.8	0.8	0.8	0.8	0.8
Air consumption (m³/h)	92	140	432	423	604	plastsea
Cooling water pressure (Mpa)	0.2-0.4
Cooling water consumption of main machine (m³/h)	20	25	40/50	50	60	60	70
Steam pressure (Mpa)	0.3						0.3
Power of main motor (KW)	280	520	1100	1320	1680	2x1250	2x1250 2x1250
Overall size(without motor) m	3.9x2.4x3.7	4.6x2.3x4	5.9x3.4x5.6	6.1x4x6.1	6.6x4.6x6.5	6.7x4.6x6.3	7.5x4.8x7.5
Weight (without motor and gearbox) T	8.5	11	26.5	33	38	50	60
