Home > Products > Rubber Mixing > Lab internal mixer
Lab internal mixer
- 280 Set / Sets per Month
- Qingdao Seaport
- T/T Credit Card
Product Details
Condition: | New | Type: | Rubber Mixer | Place of Origin: | Shandong, China |
Brand Name: | PLASTSEA | Model Number: | 1.5L | Voltage: | 380V/50HZ |
Certification: | CE | Warranty: | ONE YEAR | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Lab internal mixer1.Drop-type discharge
2.Pneumatic and Hydraulic ram
3.Intermeshing rotor & tangential rotor

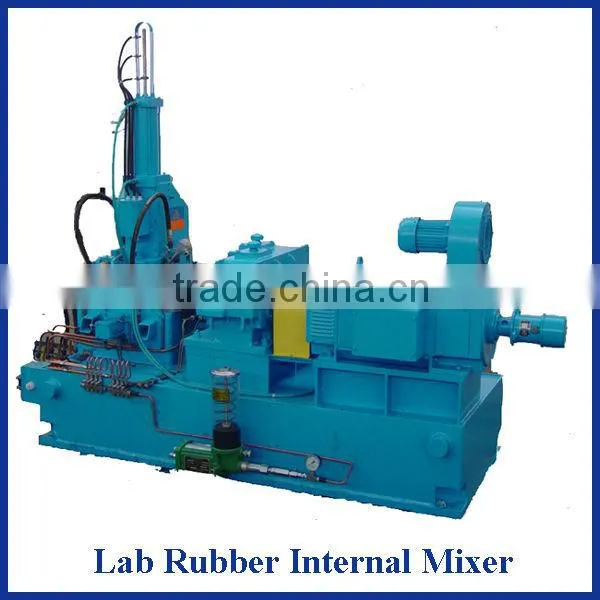

Lab internal mixer (Lab Banbury mixer)
This mixer is used for the rubber mixing test in lab.
Main Parameter
No. | Item | Parameter |
1 | Drive way | Right/Left-hand drive (to be confirmed) |
2 | Rotor shape | ZZ-2 tangential geometry rotors |
3 | Rotor speed | 8~80r/min |
4 | Motor power | 22KW DC |
5 | Total volume of mixing chamber | 1.5L |
6 | Fill factor | 0.75 |
7 | Working volume | 1.12L |
8 | Main machine | 3m3/h |
9 | Ram pressure to stocks | 0.57MPa |
10 | Max. Production capacity | 0.025 T/h (specific gravity 1.2) |
11 | Dimensions(L×W×H) | 1850×1020×1770mm |
12 | Weight:(not including motor and gearbox ) | 1.8T |
We are the best supplier for the rubber mixer in China.
We can supply the mixer as below:
GK series (Technology W&P):
N type: GK-110N,GK-225N,GK-270N,GK-300N,GK-400N,GK-430N,GK-650N ,etc.
E type: GK-5E,GK-20E,GK-45E,GK-90E,GK-135E,GK-190E,GK-250E,GK-320E,GK-420E,GK-580E,etc.
F series (Technology Farrel)
F270L,F370L,F650L, etc.
XM-160,XM-20,XM-370,XM-650 ,etc.
The rubber mixers which we supply are the top level mixers in China industry, and also are used in many famous tyre factories around the world.
GK-E type (Most suitable for Master batch) Plastsea
Model Parameter | GK-45E | GK-90E | GK-E190 | GK-250E | GK-320E | GK-420E | GK-580E |
Total Volume of Mixer (L) | 47 | 87 | 195 | 250 | 320 | 450 | 580 |
Fill factor | 0.65 | 0.65 | 0.65 | 0.65 | 0.65 | 0.7 | 0.65 |
Rotor speed (r/min) plastsea | 10-60 | 10-60 | 10-60 | 10-60 | 10-60 | 10-60 | 10-45 10-60 |
Ram Pressure (Mpa) | 0.5 | 0.55 | 0.54 0.58(Hyd.) | 0.51 | 0.62 | 0.55 | 0.55 |
Max production capacity (t/h) Plastea | 0.72 | 1.36 | 3.04 | 3.9 | 5 | 7.5 | 10.4 |
Compressed air pressure (Mpa) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 |
|
|
Air consumption (m3/h) | 92 | 140 | 432 | 423 | 604 | plastsea |
|
Cooling water pressure (Mpa) | 0.2-0.4 | ||||||
Cooling water consumption of main machine (m3/h) | 20 | 25 | 40/50 | 50 | 60 | 60 | 70 |
Steam pressure (Mpa) | 0.3 |
| 0.3 | ||||
Power of main motor (KW) | 280 | 520 | 1100 | 1320 | 1680 | 2x1250 | 2x1250 2x1250 |
Overall size(without motor) m | 3.9x2.4x3.7 | 4.6x2.3x4 | 5.9x3.4x5.6 | 6.1x4x6.1 | 6.6x4.6x6.5 | 6.7x4.6x6.3 | 7.5x4.8x7.5 |
Weight (without motor and gearbox) T | 8.5 | 11 | 26.5 | 33 | 38 | 50 | 60 |
|
|
|
|
|
|
|
|
Above parameter is only part. If you need more parameters and size of our rubber mixer, please contact us!
Please send us your detailed requirement to get our best offer.
