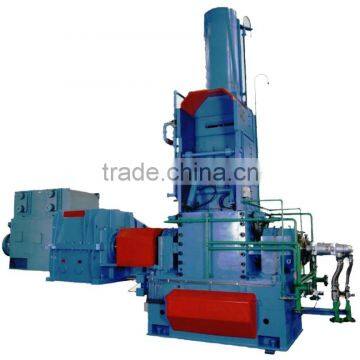

Help CenterRubber Internal Mixer for Making Tire
Related Products
Professional manufacturer of rubber internal mixer
——PLASTSEA MACHINERY CO., LTD
Specifications
Rubber banbury internal mixer
1.Drop-type discharge
2.Pneumatic and Hydraulic ram
3.Kinds of rotors
Rubber banbury internal mixer
This mixer is used for final mixing and master batch mixing of tyre industry.
We can supply the mixer as below:
GK series (Technology W&P):
N type: GK-110N,GK-225N,GK-270N,GK-300N,GK-400N,GK-430N,GK-650N ,etc.
E type: GK-5E,GK-20E,GK-45E,GK-90E,GK-135E,GK-190E,GK-250E,GK-320E,GK-420E,GK-580E,etc.
F series (Technology Farrel)
F270L,F370L,F650L, etc.
XM-160,XM-20,XM-370,XM-650 ,etc.
The rubber mixers which we supply are the top level mixers in China industry, and also are used in many famous tyre factories around the world.
GK-E type (Most suitable for Master batch) Plastsea
|
Model Parameter |
GK-45E |
GK-90E |
GK-E190 |
GK-250E |
GK-320E |
GK-420E |
GK-580E |
Total Volume of Mixer (L) |
47 |
87 |
195 |
250 |
320 |
450 |
580 |
Fill factor |
0.65 |
0.65 |
0.65 |
0.65 |
0.65 |
0.7 |
0.65 |
Rotor speed (r/min) plastsea |
10-60 |
10-60 |
10-60 |
10-60 |
10-60 |
10-60 |
10-45 10-60 |
Ram Pressure (Mpa) |
0.5 |
0.55 |
0.54 0.58(Hyd.) |
0.51 |
0.62 |
0.55 |
0.55 |
Max production capacity (t/h) Plastea |
0.72 |
1.36 |
3.04 |
3.9 |
5 |
7.5 |
10.4 |
Compressed air pressure (Mpa) |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
|
|
Air consumption (m3/h) |
92 |
140 |
432 |
423 |
604 |
plastsea |
|
Cooling water pressure (Mpa) |
0.2-0.4 |
||||||
Cooling water consumption of main machine (m3/h) |
20 |
25 |
40/50 |
50 |
60 |
60 |
70 |
Steam pressure (Mpa) |
0.3 |
|
0.3 |
||||
Power of main motor (KW) |
280 |
520 |
1100 |
1320 |
1680 |
2x1250 |
2x1250 2x1250 |
Overall size(without motor) m |
3.9x2.4x3.7 |
4.6x2.3x4 |
5.9x3.4x5.6 |
6.1x4x6.1 |
6.6x4.6x6.5 |
6.7x4.6x6.3 |
7.5x4.8x7.5 |
Weight (without motor and gearbox) T |
8.5 |
11 |
26.5 |
33 |
38 |
50 |
60 |
|
|
|
|
|
|
|
|
Above parameter is only part. If you need more parameters and size of our rubber mixer, please contact us!
Company Information
As a professional machinery supplier,Plastsea Corp. was established by an experienced and professional team.It's located in Qingdao city which is the rubber&plastic industry center of China with the top level institute and university .
After several years developing,Plastsea has offered its excellent service and products to more than 30 countries in the world.
At present ,Plastsea focuses on Rubber and Tyre industries.Through joint-venture and cooperation methos,Plastsea has developed eight fabrication bases in China.The products cover internal mixer,twin-screw sheer,batch off cooling molds,tyre building drum,tyre bladder,tyre bladder mold,etc.
