Rubber Banbury And Internal Mixer Hot Product In China
- 280 Set / Sets per Month
- qingdao
- T/T
You May Like
Product Details
| Condition | New | Type | Rubber Mixer | |
| Place of Origin | Shandong, China | Brand Name | PLASTSEA | |
| Model Number | GK-N GK-E F | Voltage | 380V/50HZ | |
| Dimension(L*W*H) | 3100*1300*245 etc | Weight | 20~80 ton | |
| Certification | ISO9001 CE | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Professional manufacturer of rubber internal mixer
——PLASTSEA MACHINERY CO., LTD
higher efficiency rubber kneader / banbury mixer / internal mixer with best rotors
Application of Our Banbury Mixer
It's suitable for plastic and rubber mixing. The mixing chamber adopts special left-middle-right structure which makes maintenance easy.
Advantages of Banbury mixer:
1. Intermeshing or tangential rotor;
2. Rotors, mixing chamber, harmmer and parts which contacts with the material are overlayed with 5mm wear-resistant alloy (up to 50HRC);
3. Pneumatic / hydraulic type top mounted hammer;
4. Inverted AC motor / variable speed DC motor;
5. Copper-ring and hydraulic sealing;
6. 2-wing, 4-wing, 6-wing are available;
7. Excellent dispersing effect;
8. Best mixing rotor and chamber to guarantee 100% mixing effect;
9. Low noise, safe mixing;
10. Maintenance friendly and long-life service
1. Banbury mixer for rubber:
Items | LX-75L | LX-100L | LX-120L | LX-160L | LX-190L | LX-255L | LX-270L | LX-410L |
Total chamber volume(L) | 75 | 100 | 120 | 160 | 190 | 255 | 270 | 410 |
Useful chamber volume (L) | 50 | 80 | 100 | 120 | 140 | 115 | 188 | 319 |
The main rotor speed(rpm) | 40 | 40 | 40 | 40 | 40 | 4-40 6-60 | 4~40 | 6~60 |
The rotor speed ratio | 1:1.17 | 1:1.17 | 1:1.17 | 1:1.17 | 1:1.17 | 1:1.17 | 1:1.17 | 1:1.17 |
Max capacity (T/H) | 1.25 | 1.6 | 1.95 | 2.64 | 2.85 | 4.6 | 4.6 | 7.4 |
Motor power (KW) | 160 | 220 | 310 | 355 | 870 | 1500 | 1250 | 2X1250 |
Weight(T) | 20 | 24 | 26 | 26 | 30 | 55 | 55 | 76 |
2. Banbury mixer for plastic:
ProjectModel | S-75L | S-100L | S-120L | S-160L | S-255L | S-270L | S-410L |
Working capacity of mixing chamber(L) | 75 | 100 | 120 | 160 | 255 | 270 | 410 |
Rotating speed of rear rotor(r/min) | 40 | 40 | 40 | 40 | 40 | 40 | 40 |
Main motor power(kw) | 160 | 220 | 300 | 400 | 1100 | 1250 | 2500 |
Pressed of compressed air(MPa) | 0.6 | 0.6 | 0.6 | 0.6 | 0.58 | 0.58 | 0.62 |
Weight(t) | 20 | 22 | 28 | 32 | 55 | 60 | 76 |
Intermesh Rotors (high mixing effects)
Model | LH-100Y | LH-145Y | LH-200Y | LH-250Y | LH-330Y |
Chamber Volume (L) | 100 | 145 | 200 | 250 | 330 |
Filling Coefficient | 0.65 | ||||
Rotor Speed (r/min) | 10-60 | ||||
Rotor Speed Ratio | 1:1.17 | ||||
Max. Capacity (T/H) | 1.36 | 2.2 | 3.05 | 4.2 | 5.0 |
Motor Power (Kw) | 520 | 720 | 1100 | 1320 | 1700 |
Dimension (m) | 6.6x2.8x4.4 | 7.5x3.1x5.5 | 8.1x3.5x5.4 | 8.2x3.8x5.5 | 10.0x4.7x6.6 |
Weight (T) | 19 | 29 | 48 | 65 | 80 |
Specifications

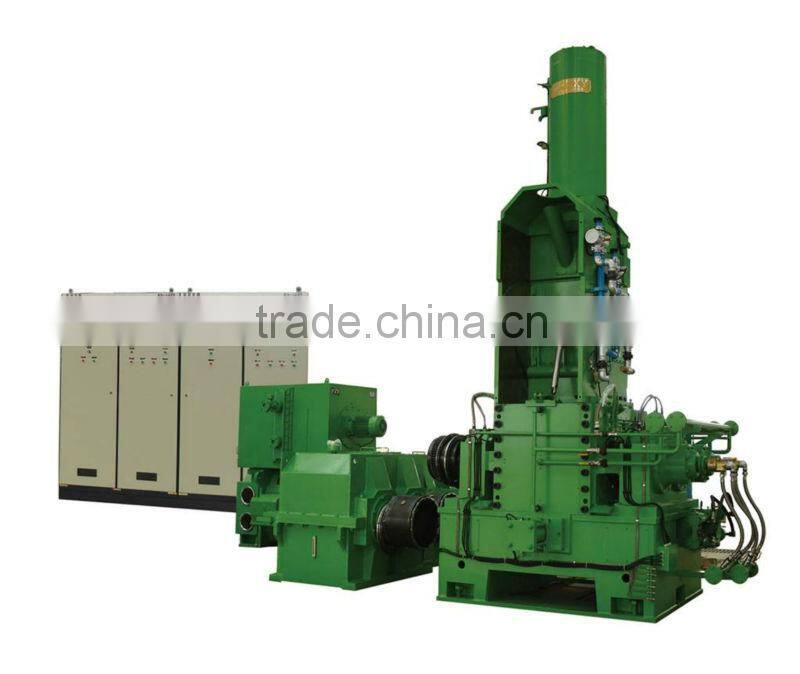

Rubber banbury internal mixer
1.Drop-type discharge
2.Pneumatic and Hydraulic ram
3.Kinds of rotors
Rubber banbury internal mixer
This mixer is used for final mixing and master batch mixing of tyre industry.
We can supply the mixer as below:

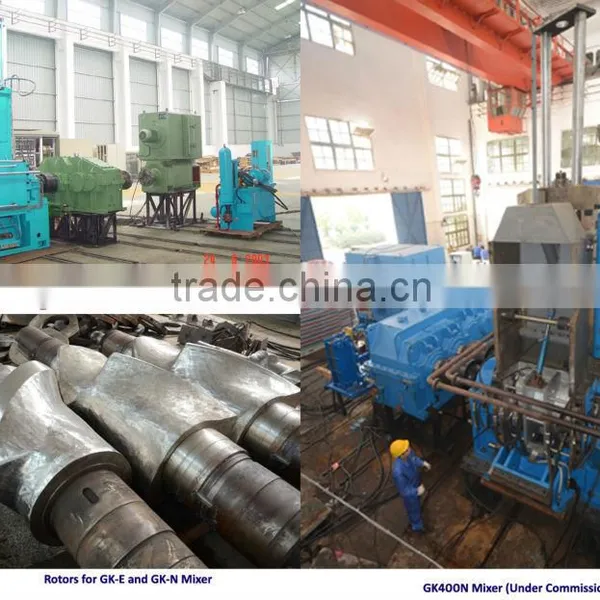

GK series (Technology W&P):
N type: GK-110N,GK-225N,GK-270N,GK-300N,GK-400N,GK-430N,GK-650N ,etc.
E type: GK-5E,GK-20E,GK-45E,GK-90E,GK-135E,GK-190E,GK-250E,GK-320E,GK-420E,GK-580E,etc.
F series (Technology Farrel)
F270L,F370L,F650L, etc.
XM-160,XM-20,XM-370,XM-650 ,etc.
The rubber mixers which we supply are the top level mixers in China industry, and also are used in many famous tyre factories around the world.
As a professional machinery supplier,Plastsea Corp. was established by an experienced and professional team.It's located in Qingdao city which is the rubber&plastic industry center of China with the top level institute and university .
After several years developing,Plastsea has offered its excellent service and products to more than 30 countries in the world.
At present ,Plastsea focuses on Rubber and Tyre industries.Through joint-venture and cooperation methos,Plastsea has developed eight fabrication bases in China.The products cover internal mixer,twin-screw sheer,batch off cooling molds,tyre building drum,tyre bladder,tyre bladder mold,etc
Welcome to visit our company and we can show you the machine in working condition:
If our products win your interest, please send us inquires and we will provide detailed information to you. We can also make machines according to your request.
