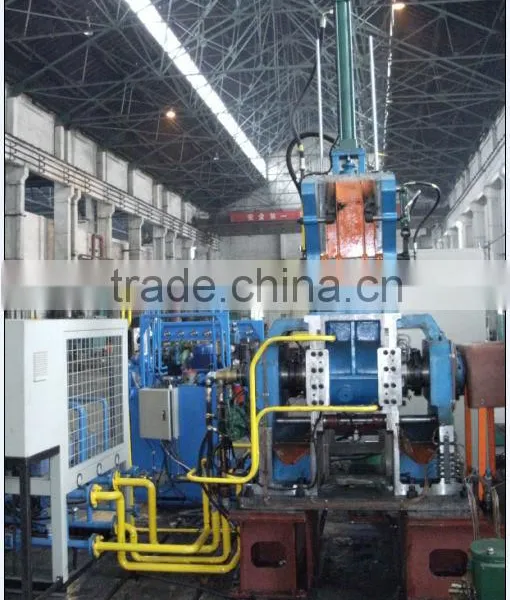

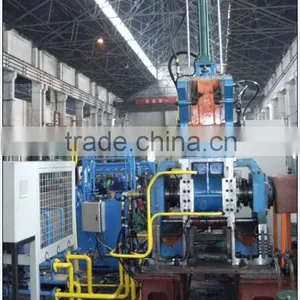

Help CenterHigh Quality Rubber Inner Mixer for Tire Making
Related Products
-
330L Energy-saving Rubber Banbury Internal MixerUS$ 10,000 - 350,000MOQ: 1 Set -
High Quality Rubber Internal Mixer From PlastseaUS$ 10,000 - 350,000MOQ: 1 Set
-
The Price of Tire Bunbury MachineUS$ 10,000 - 350,000MOQ: 1 Set
-
Laboratory Rubber and PVC Banbury Internal MixerUS$ 10,000 - 350,000MOQ: 1 Set
-
Banbury Rubber Kneader/ Internal MixerUS$ 10,000 - 350,000MOQ: 1 Set
Product introduction :
We can supply the mixer as below:
GK series (Technology W&P):
N type: GK-110N,GK-225N,GK-270N,GK-300N,GK-400N,GK-430N,GK-650N ,etc.
E type: GK-5E,GK-20E,GK-45E,GK-90E,GK-135E,GK-190E,GK-250E,GK-320E,GK-420E,GK-580E,etc.
F series (Technology Farrel)
F270L,F370L,F650L, etc.
XM-160,XM-20,XM-370,XM-650 ,etc.
The rubber mixers which we supply are the top level mixers in China industry, and also are used in many famous tyre factories around the world.
|
Model Parameter |
GK-45E |
GK-90E |
GK-E190 |
GK-250E |
GK-320E |
GK-420E |
GK-580E |
Total Volume of Mixer (L) |
47 |
87 |
195 |
250 |
320 |
450 |
580 |
Fill factor |
0.65 |
0.65 |
0.65 |
0.65 |
0.65 |
0.7 |
0.65 |
Rotor speed (r/min) plastsea |
10-60 |
10-60 |
10-60 |
10-60 |
10-60 |
10-60 |
10-45 10-60 |
Ram Pressure (Mpa) |
0.5 |
0.55 |
0.54 0.58(Hyd.) |
0.51 |
0.62 |
0.55 |
0.55 |
Max production capacity (t/h) Plastea |
0.72 |
1.36 |
3.04 |
3.9 |
5 |
7.5 |
10.4 |
Compressed air pressure (Mpa) |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
|
|
Air consumption (m3/h) |
92 |
140 |
432 |
423 |
604 |
plastsea |
|
Cooling water pressure (Mpa) |
0.2-0.4 |
||||||
Cooling water consumption of main machine (m3/h) |
20 |
25 |
40/50 |
50 |
60 |
60 |
70 |
Steam pressure (Mpa) |
0.3 |
|
0.3 |
||||
Power of main motor (KW) |
280 |
520 |
1100 |
1320 |
1680 |
2x1250 |
2x1250 2x1250 |
Overall size(without motor) m |
3.9x2.4x3.7 |
4.6x2.3x4 |
5.9x3.4x5.6 |
6.1x4x6.1 |
6.6x4.6x6.5 |
6.7x4.6x6.3 |
7.5x4.8x7.5 |
Weight (without motor and gearbox) T |
8.5 |
11 |
26.5 |
33 |
38 |
50 |
60 |
Advantages of our mixer:
1. Intermeshing or tangential rotor;
2. Rotors, mixing chamber, harmmer and parts which contacts with the material are overlayed with 5mm wear-resistant alloy (up to 50HRC);
3. Pneumatic / hydraulic type top mounted hammer;
4. Inverted AC motor / variable speed DC motor;
5. Copper-ring and hydraulic sealing;
6. 2-wing, 4-wing, 6-wing are available;
7. Excellent dispersing effect;
8. Best mixing rotor and chamber to guarantee 100% mixing effect;
9. Low noise, safe mixing;
10. Maintenance friendly and long-life service
Company profile :
As a professional machinery supplier, Plastsea corp. was established by experienced and professional team.
It’s located in qingdao city which is the rubber&plastic industry center of China with the top level institute and university of rubber & plastic industry of china .
