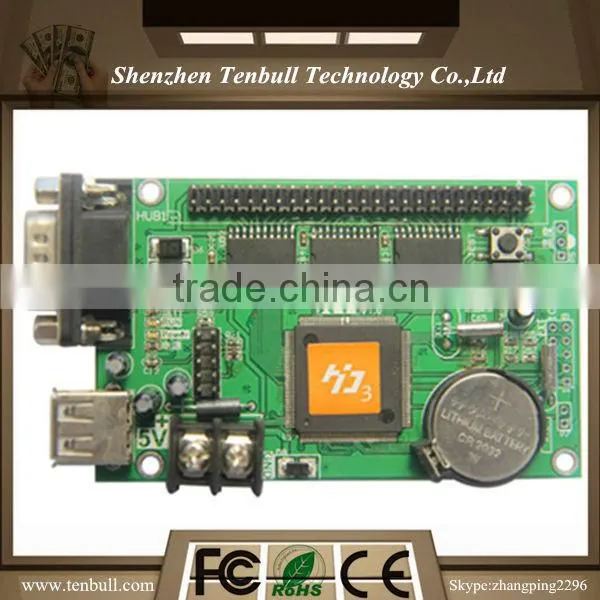

USB+Serial port LED controller card
"Single color:1024*256 2048*128
Dual coloraa512*256 1024*128

U-disk LED controller card





Application Range: This product applies to information displays for all the signs, stores, vehicles, outdoor ads, et.;

Advantages: Wireless transmission for U-Disk, cost-effective, simple software interface, easy to operate, rich and fine display effects; above all, more than 98% single/dual color screens are supported;

 Application Software: the fourth-generation operating software

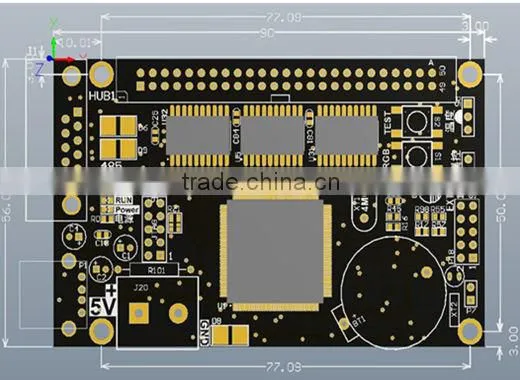

I. Setup Diagram



USB+Serial port LED controller card HD-X41





II. Parameters Description

Type of control card: single color/dual color/seven-color

Control range: 256*1024 and 128*2048 for single color; 256*512, 128*1024 and 64*2048 for dual color; 128*672 and 64*1344 for seven-color;

Scan modes: static, 1/2, 1/4, 1/8 and 1/16 common modes

Communication type: U-Disk / RS232 serial port

Power supply: +4.2-5.5V

Power consumption: ≤0.5W

Work environment: -40℃--75℃

Installation dimension: 56.0(H)*90.0(W)(mm)

III. Features

Content Capability
FLSH capacity 2M Byte(able to expand to 8M Byte)
Communication port U-Disk / RS232 serial port
Color Dual color supports red, green and yellow.
Support seven-color Full color can display red, green, blue, yellow, purple, cyan and white.
Program quantity Two hundred programs are available, which can be switched by buttons or remote control.
Area quantity Eight areas with separate zone, special effect and border
LED pixel 256(H)×1024(W)(The resolution is 256K.)
Display content Text, image, time, temperature, count, animated characters, etc.
Display mode Display in order, switch by buttons or remote control
Display effect

1. Text, image, time, count, temperature (Module needs to be connected.), etc.;

2. Support the settings of program/area/custom borders;

3. Various action modes;

4. Over 40 special character effects;

5. Support simple animated characters;

6. Support hollow/stroked characters;

7. Support the background settings of area characters;
Function of clock

1. Support calendar/analog clock;

2. Count up/count down display;

3. The font, size, color and position can be set freely;

4. Support multiple time zones;
Expander Temperature/humidity/remote control/light sensors and wireless RF module
Automatic switch Support time switch
Brightness setting Support three brightness modes


IV. Port Definition
The control board has a group of common 50pin ports, which are defined as below:

Signal Pin Description
A 42 the lowest bit in row address
B 41 the lower bit in row address
C 40 the higher bit in row address
D 39 the highest bit in row address
RCLK 43 row latch clock
CLK 44 shift clock
OE 45 display permission
RD
8,10,12,14,16,18,20,22,24
26,28,30,32,34,36,38
 red data
GD
7,9,11,13,15,17,19,21,23
25,27,29,31,33,35,37
 green data
VCC 2,4,47,49 output +5V power
GND 1,3,5,46,48,50 ground
NC 6 not connected
