USB+Ethernet Port Controller Card HD-E42

Name: USB+Ethernet Port Controller Card HD-E42
Brand: TENBULL
SKU: 134082915
Availability: InStock

USB+Ethernet Port Controller Card HD-E42 thumbnail-1

USB+Ethernet Port Controller Card HD-E42 photo-1

US$ 47 - 50 MOQ: 20 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

TENBULL

Model Number:

HD-E42

Contact Supplier Request Quote Chat Now

Shenzhen Tenbull Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name TENBULL

Model Number HD-E42

Usage Other, Controller

Specifications

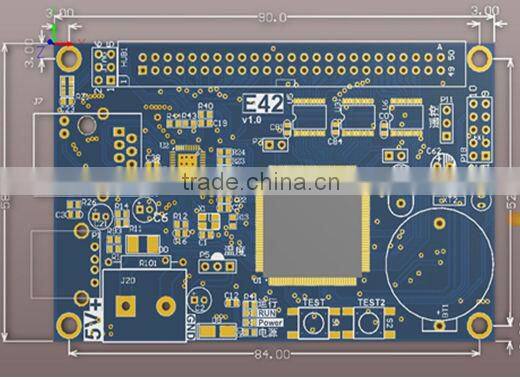

USB+Ethernet port Controller card HD-E42
Single color:1024*512 2048*256 4096*128
Dual coloraa512*512 1024*256 2048*128

USB+Ethernet port Controller card HD-E42

Application Range: This product applies to information displays for all the signs, stores, vehicles, outdoor ads, et.;

Advantages: Wireless transmission for U-Disk, cost-effective, simple software interface, easy to operate, rich and fine display effects; above all, more than 98% single/dual color screens are supported;

Application Software: the fourth-generation operating software

I. Setup Diagram

II. Parameters Description

Type of control card: single color/dual color/seven-color

Control range: 1024*256and 2048*128 and3072*80 for single color; 512*256, 1024*128 and1360*96for dual color; 2048*64and 3072*32for seven-color;

Scan mode: static, 1/2, 1/4, 1/8 and 1/16 common modes

Communication types: U-Disk / RS232 serial port / network port

Power supply: +4.2-5.5V

Power consumption: ≤0.5W

Work environment: -40℃--75℃

Installation dimension: 58.0(H)*90.0(W)(mm)

III. Features

Content	Capability
FLSH capacity	2M Byte(able to expand to 8M Byte)
Communication port	U-Disk /network port
Color	Dual color supports red, green and yellow.
Support seven-color	Full color can display red, green, blue, yellow, purple, cyan and white.
Program quantity	Two hundred programs are available, which can be switched by buttons or remote control.
Area quantity	Eight areas with separate zone, special effect and border
LED pixel	256(H)×1024(W)(The resolution is 256K.)
Display content	Text, image, time, temperature, count, animated characters, etc.
Display mode	Display in order, switch by buttons or remote control
Display effect	1. Text, image, time, count, temperature (Module needs to be connected.), etc.; 2. Support the settings of program/area/custom borders; 3. Various action modes; 4. Over 40 special character effects; 5. Support simple animated characters; 6. Support hollow/stroked characters; 7. Support the background settings of area characters;
Function of clock	1. Support calendar/analog clock; 2. Count up/count down display; 3. The font, size, color and position can be set freely; 4. Support multiple time zones;
Expander	Temperature/humidity/remote control/light sensors and wireless RF module
Automatic switch	Support time switch
Brightness setting	Support three brightness modes

IV. Port Definition
The control board has 1 groups of common 50pin ports, which are defined as below:

Signal	Pin	Description
A	42	the lowest bit in row address
B	41	the lower bit in row address
C	40	the higher bit in row address
D	39	the highest bit in row address
RCLK	43	row latch clock
CLK	44	shift clock
OE	45	display permission
RD	8,10,12,14,16,18,20,22,24 26,28,30,32,34,36,38	red data
GD	7,9,11,13,15,17,19,21,23 25,27,29,31,33,35,37	green data
VCC	2,4,47,49	output +5V power
GND	1,3,5,46,48,50	ground
NC	6	not connected
