USB+Ethernet port Controller card HD-E40Single color:768*128 1024*96 1536*64
Dual coloraa384*128 512*96 768*64

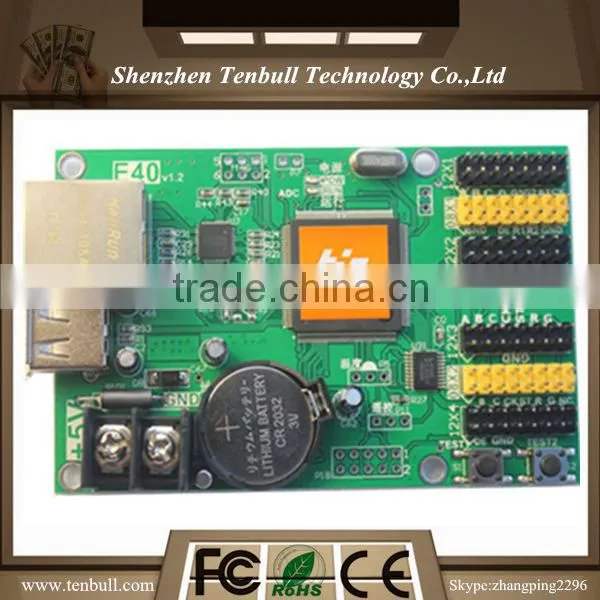

USB+Ethernet port Controller card HD-E40
Application Range: This product applies to information displays for all the signs, stores, vehicles, outdoor ads, et.;
Advantages: Wireless transmission for U-Disk, cost-effective, simple software interface, easy to operate, rich and fine display effects; above all, more than 98% single/dual color screens are supported;
Application Software: the fourth-generation operating software
I. Setup Diagram
II. Parameters Description
Type of control card: single color/dual color/seven-color
Control range: 64*2048 for single color; 64*1024, 32*2048 for dual color; 32*672 for seven-color;
Scan mode: static, 1/2, 1/4, 1/8 and 1/16 common modes
Communication type: U-Disk / RJ45 network port
Power supply: +4.2-5.5V
Power consumption: ≤0.5W
Work environment: -40℃--75℃

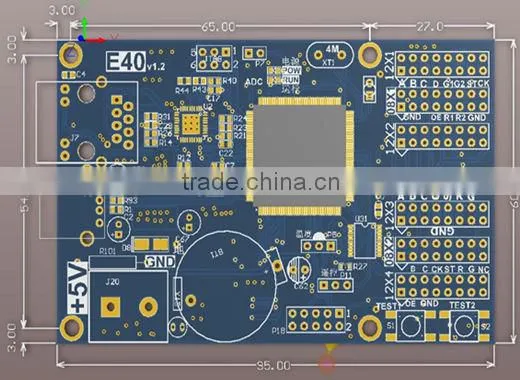

Installation dimension: 52.0(H)*61.0(W)(mm)
III. Features
| Content | Capability |
| FLSH capacity | 2M Byte(able to expand to 8M Byte) |
| Communication port | U-Disk / RJ45 network port |
| Color | Dual color supports red, green and yellow. |
| Support seven-color | Full color can display red, green, blue, yellow, purple, cyan and white. |
| Program quantity | Two hundred programs are available, which can be switched by buttons or remote control. |
| Area quantity | Eight areas with separate zone, special effect and border |
| LED pixel | 64(H)×2048(W)(The resolution is 128K.) |
| Display content | Text, image, time, temperature, count, animated characters, etc. |
| Display mode | Display in order, switch by buttons or remote control |
| Display effect |
1. Text, image, time, count, temperature (Module needs to be connected.), etc.; 2. Support the settings of program/area/custom borders; 3. Various action modes; 4. Over 40 special character effects; 5. Support simple animated characters; 6. Support hollow/stroked characters; 7. Support the background settings of area characters; |
| Functiion of clock |
1. Support calendar/analog clock; 2. Count up/count down display; 3. The font, size, color and position can be set freely; 4. Support multiple time zones; |
| Expander | Temperature/humidity/remote control/light sensors and wireless RF module |
| Automatic switch | Support time switch |
| Brightness setting | Support three brightness modes |
IV. Port Definition
The control board has two common 08 ports and four common 12 ports, which are defined as below:
| the 08 port | the 12 port |
