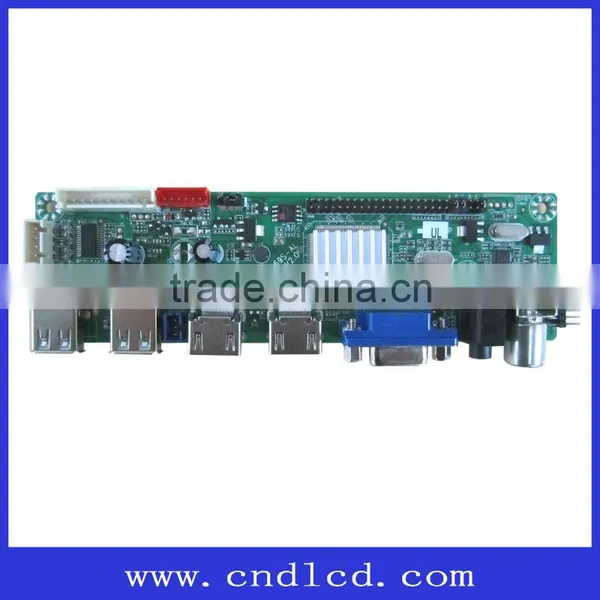

Universal Tv Motherboard Board Tv Certifications CE ISO9001

Specifications

Universal Tv Motherboard Board Tv Certifications CE ISO9001
     1) GENERAL DESCRIPTION

This tv board is suitable for worldwide analog TV system PAL/NTST/SECAM,which is compatible with LCD panel mainstream manufacturers,such as SAMSUNG, CMO, AU, LGP,SHARP,BOE etc,It can reappear real world image color and sound,main IC adopts MSTAR single chip TSUMV59XUS-Z1 program.

• Ø       with much expansion port  can realize L type port, mainly used in LED screen with ultra-thin machine; And single/double bottom out type port, mainly used in LCD/PDP and ordinary cabinet
• Ø       TV system support PAL+SECAM/NTSC system,optional full standard system
• Ø       Max supports FULL HD 1920X1080 resolution TFT-LCD screen
• Ø       One VGA port,support 1920X1080@60Hz input
• Ø       2 HD digital multi-media port(HDMI)1.3A, HDCP1.2 and DVI 1.0
• Ø       twoUSB port,support Audio,Video,image etc, multi-media format
• Ø       expanded port board can support1~2 AV input,1AV output,1YPBPR input
• Ø       Dynamically adjust picture's color , contrast ratio, definition and so on.
• Ø       Brightness, chroma instantaneous improvement function , black / white level extensions function , color compensation function
• Ø       Supports control of treble or bass ,Stereo input
• Ø       Rating of Audio loudspeaker output is 5W*2(8ohm)or 8W*2(8ohm)
• Ø       Automatically detect input video format
• Ø       Reliable EMC and antistatic treatment measures

 2) FEATURES SPECIFICATION

 3) USB document support format

4) PRODUCT LAYOUT SPECIFICATION

5) Exand LED type

6)package

 Varies type of inverter
