Home > Products > TV Hitgh quality board > LED TV mother Board adopts MSTAR program,support 3HDMI/MPEG1/2/4/USB media play
LED TV mother Board adopts MSTAR program,support 3HDMI/MPEG1/2/4/USB media play
- 5000 Piece / Pieces per Month
- Hong Kong/Shenzhen
- T/T
- negative segment character running machine lcd display,practical STN,blue backlight, fitness equipment
- digital fire alarm installation module display, HTN segment display with blue led lcd panel
- negative autoreclose circuit-breaker lcd display, segment module with blue led
- charger negative character lcd display,white led ,battery segment small flexible display
- character small charger lcd display ,custom battery display ,white led
- segment positive temperature time clock lcd display,blue TN white backlight
Product Details
Place of Origin: | Guangdong, China | Brand Name: | CND | Model Number: | HD6M182VG-AL |
Type: | Graphic |
Product Description
Specifications

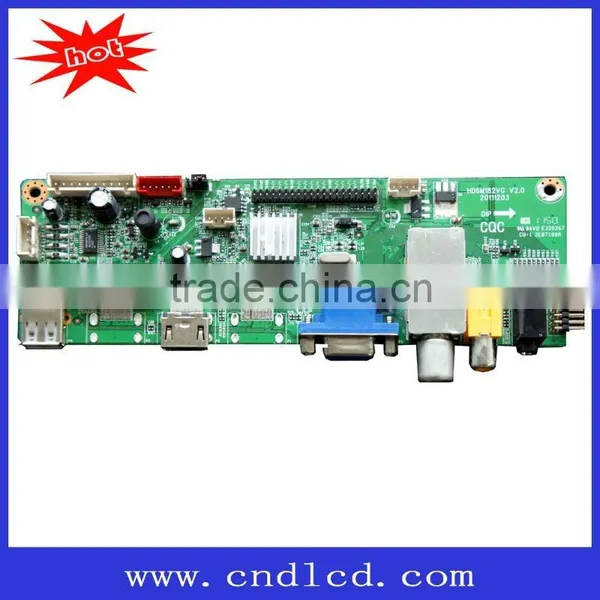

LCD TV mother Board with Mstar182VG HD,the LCD/LED Driving board for Analog TV,Support Full HD 1920X1080P/3*HDMI/MPEG1/2/4/RMVB/
Suitable for worldwide analog TV system PAL/NTST/SECAM
Compatible with LCD board in market mainstream manufactures,such as SAMSUNG, CMO , AU, LGP, Sharp, BOE and more
Can reappear picture color and sound in real world
Key IC adopt MSTAR single chip mMST6M18VG program
Can extend the standard type as plate type and L-type (optional LCD TV structure or LED TV strcture)
TV system support: PAL+SECAM/NTSC system,optional full standard system
Maximum supports: full HD 1920 x 1200P resolution TFT-LCD screen
Supports polarized light/shutter 3D panel

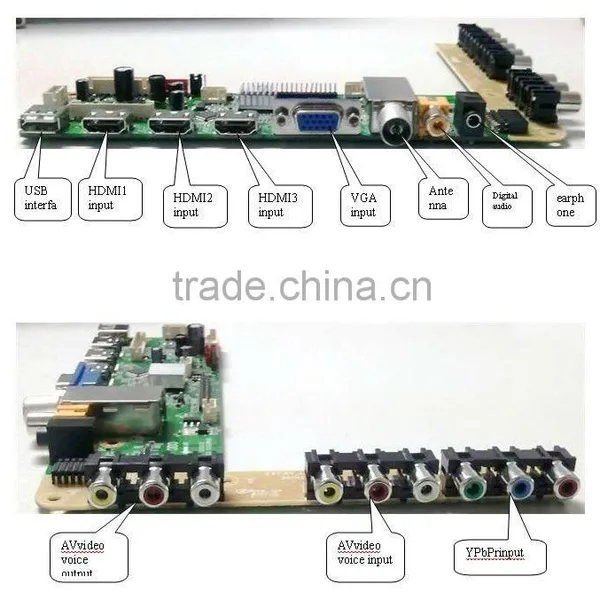

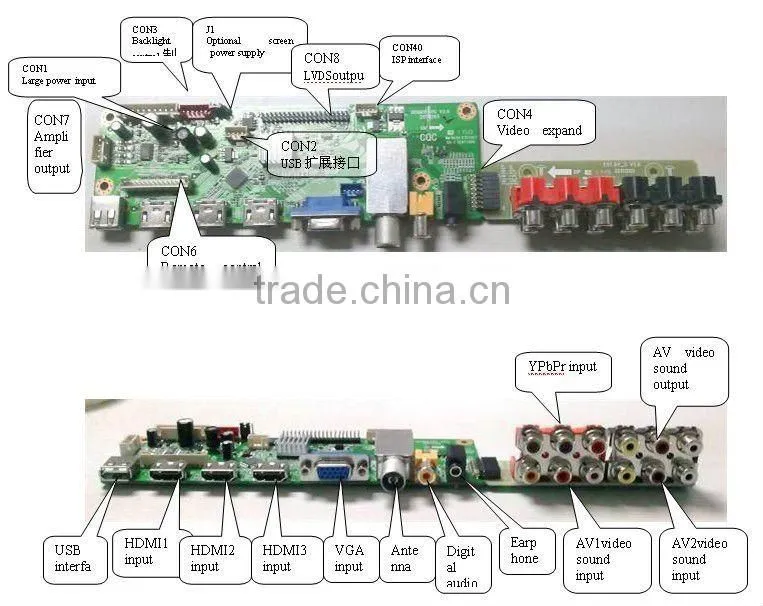

Supports 2 x AV input, 1 x VGA port, supports 1920 x 1080 at 60Hz input
Analog HD port signal (ypbpr) input, maximum support 1080 format
3 roads HD digital multimedia port (HDMI) 1.4, HDCP1.2 and DVI 1.0
1 x USB port, supports audio(MP3 WMA, video(AVI RM RMVB MPEG1~4, H.264, Picture(JPEG BMP PNG),Text file(TXT)
Dynamically adjust picture's color , contrast ratio, definition and so on
Brightness, chroma instantaneous improvement function , black / white level extensions function , color compensation function
3D video decoding ( PAL / NTSC ) , brightness separation , spatial noise reduction function
Supports control of treble or bass ,Stereo input
Rating of Audio loudspeaker output is 3w*2(8ohm)
Automatically detect input video format
Imitation WINDOWS XP interface OSD ,Humanization operating menu
Reliable EMC and treatment measure of anti-static
Internal big power input
