Full HD LCD/LED Panel Driver Board for Analog TV

FOB Price

US$ 6.8 - 8.2 / Piece

1 Piece(Min. Order)

Port ShenZhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	Analog TV Driver Board
Model Number	Analog TV Driver Board		Type	TFT

Product Description

Full HD LCD/LED Panel Driver Board for Analog TV

Model No.: HDVX9-AS-5S

Key Features:

1. Compatible With Various analog TV system PAL/NTSC/SECAM

2. 3D boardsupport

3. Reliable EMC and anti-static treatment;

4. Automatically detecting input video format;

5. VGA +DVI +HDMI+USB inputs;

6. Built-in superior quality stereo speakers;

7. Multi OSD languages support;

8. Full HD 1920X1080 resolution TFT-LCD screen max support

9. Expanded port board supports 1~2 AV input,1AV output,1YPBPR input;

Product Specification:

IC	TSUMVV59XU-Z1
OSD LANGUAGE	Default Chinese/English, French, German, Italian , Spanish , Portuguese
PANEL	Interface	Single Dual LVDS,2X15 pins
	Resolution	Max 1920x1080@60Hz
Video Input	TV	Received frequency	49MHz – 863MHz
		Input impedance	75
		Color system	PAL, SECAM/NTSC
		Sound system	BG, DK, I, L/M,N
	PC Input	R,G,B+H/V	Max 1920x1080@60Hz
	HDMI	480i, 480p, 576i, 576p, 720p, 1080i, 1080p
	USB	USB document support format
	Video	Color system	PAL/SECAM/NTSC
	Video	Video range	1.0 Vp-p ±5%
Audio input	Computer	Earphone input	0.2 – 1.5 Vrms
Audio input	Video	L/R RCA Input	0.2 – 1.5 Vrms
Audio output	Frequency Response	100Hz - 15000Hz @±3dB (1KHz 0dB benchmark signal)
Power	Loudspeaker output	2x2W(8 ohm) THD+N<10%
	Input requirement	Single +12v
	Screen power supply	3.3V,5V, 12V
	Power management	Low power consumption mode, stand by <1W(depending on the power supply)
Port	Input	USB	1 USB horizontal socket
		HDMI	1 HDMI terminal
		Computer	1 D-SUB 15 pin terminal
		PC-RGB Audio	1 earphone socket(black)
		Video	1 RCA terminal(yellow)
		Audio	2 RCA terminals(white, red)
		TV	1 IEC connector 75
		Aberration	No

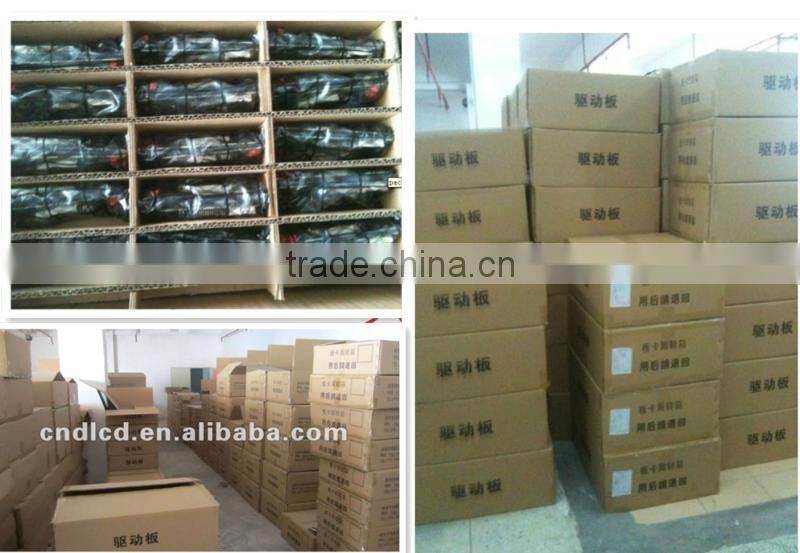

Packaging & Shipping

Our Services

1. Established in 2006, Located in ShenZhen, Over ten years experiences manufacturing.

2. Main products: Main board solutions for LED/LCD monitors, TV, which applied in Computer, advertising, Vehicle, industrial, hospital, Financial industries, home appliance.

3. One-stop solution, save your costs & times;

4. With Strong R&D team, provide you professional technique supports and good service

5. OEM/ODM and small/large orders are welcome;

6. High quality, On-time delivery, safe shipment, and excellent after-sale service.

7. In China, the biggest customers CRRC Corporation Limited, and Financial industrial such as ABC, BOC, CBC, etc.
