Lenovo Legion 5i Pro (16) Display, 16-inch 2.5K 165HZ 100% SRGB, MNG007DA1-6, for Lenovo Laptop Display

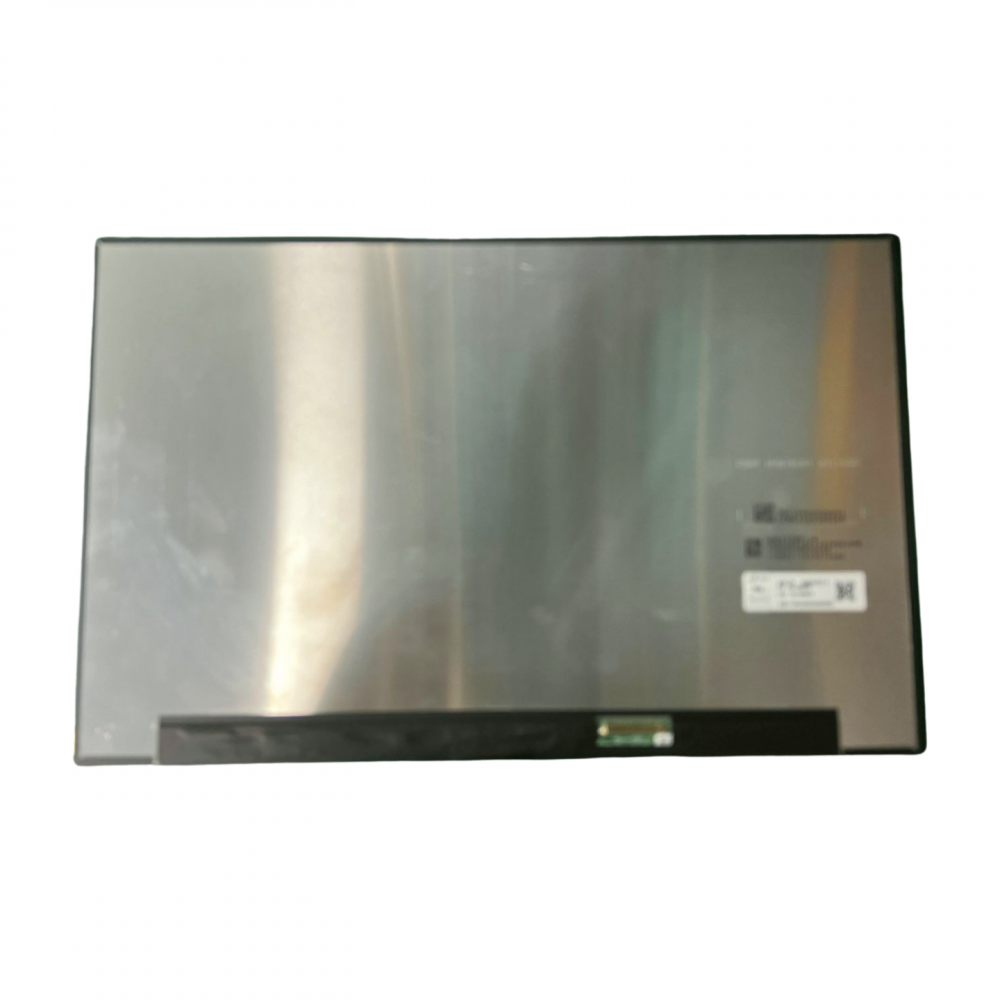

Lenovo Legion 5i Pro (16) Display, 16-inch 2.5K 165HZ 100% SRGB, MNG007DA1-6, for Lenovo Laptop Display photo-1

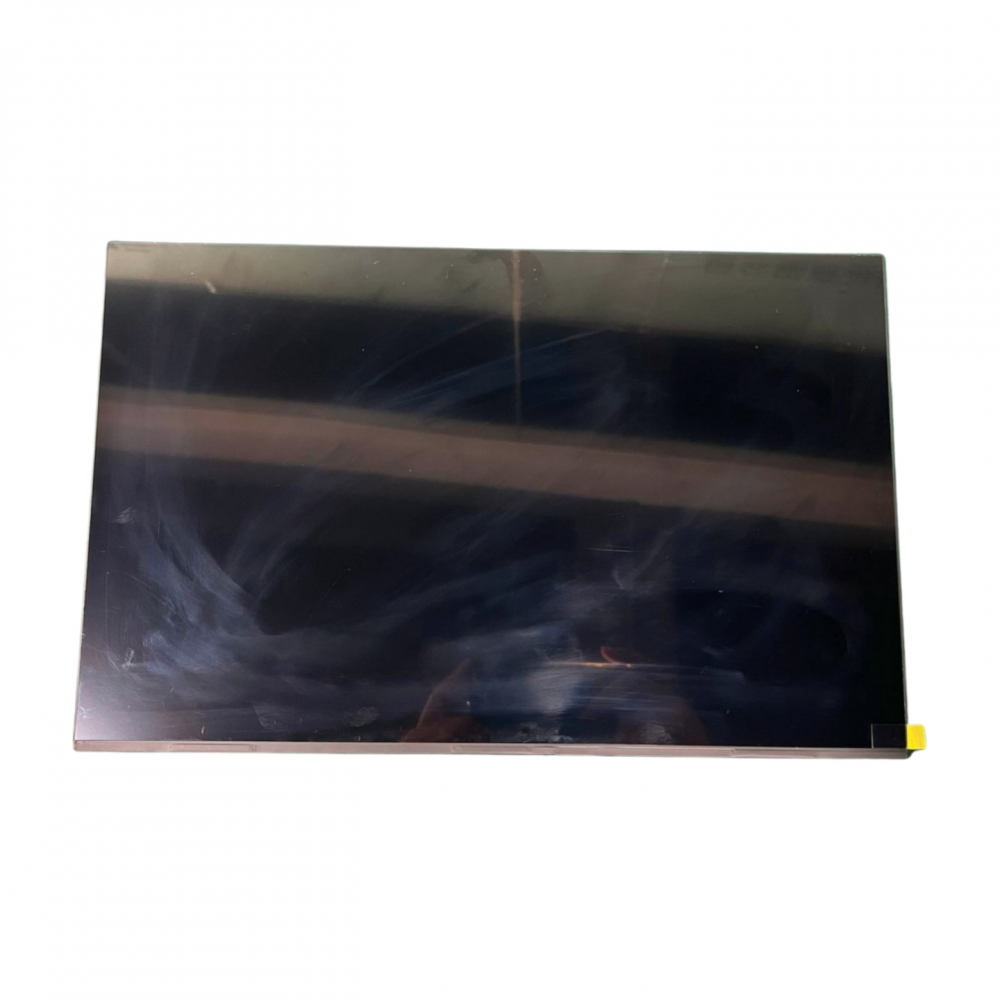

Lenovo Legion 5i Pro (16) Display, 16-inch 2.5K 165HZ 100% SRGB, MNG007DA1-6, for Lenovo Laptop Display photo-2

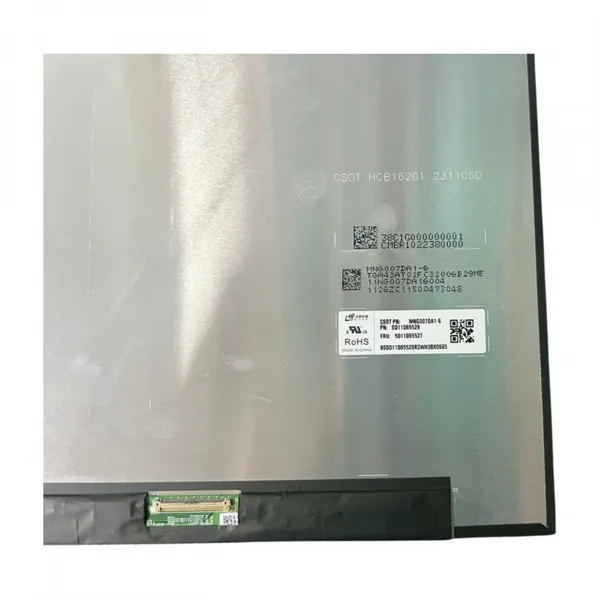

Lenovo Legion 5i Pro (16) Display, 16-inch 2.5K 165HZ 100% SRGB, MNG007DA1-6, for Lenovo Laptop Display photo-3
US$ 62 ≥1 Piece
Key Specifications
Get Latest Price
Type:
LCM
Usage:
Small-sized LCM, Notebook LCM
Response Time:
10ms
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
7 days
Type LCM
Usage Small-sized LCM, Notebook LCM
Response Time 10ms
Touch Screen Type Other, WITHOUT
Viewing Angle IPS
Display Technology Other, IPS
Digital LCD Module Type Timing Module
DOT-Matrix Graphic LCD Module Type Row/Column Control Type
LCD Drive Mode Multiplex Drive LCD Module
Customized Customized
Transport Package NEW
Specification A
Origin CHINA

Lenovo legion 5i Pro (16) display, 16-inch 2.5K 165HZ 100% sRGB, MNG007DA1-6, for Lenovo laptop display


Panel Brand: China Star Optoelectronics (CSOT)

Panel Model: MNG007DA1-6

Panel Size: 16.0-inch

Panel Type: LTPS TFT-LCD, LCM

Resolution: 2560 (RGB) × 1600, WQXGA

Display Area: 344.678 (W) × 215.424 (H) mm

External Dimensions: 349.68 (W) × 224.42 (H) × 4.6 (D) mm

Display Brightness: 500 cd/m² (Typ.)

Contrast Ratio: 1200:1 (Typ.) (Transmittance)

Response Time: 9 (Typ.)

Viewing Angles: 89/89/89/89

Supported Colors: 1.07B, 100% sRGB

Light Source: WLED [12S6P]

Application: Notebooks

Frame Rate: 165Hz

Interface: 40-pin eDP (4 Lanes) Terminals

Voltage Supply 3.3V (Typ.)

Ambient Operating Temperature: 0 to 50°C

Storage Temperature: -20 to 60°C


Product Tags: Lenovo legion 5i Pro (16) display , 16-inch 2.5K 165HZ 100% sRGB , MNG007DA1-6
