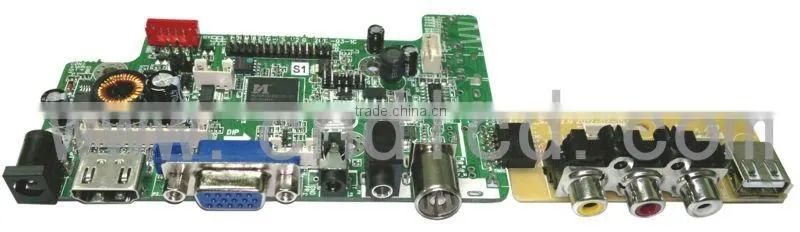

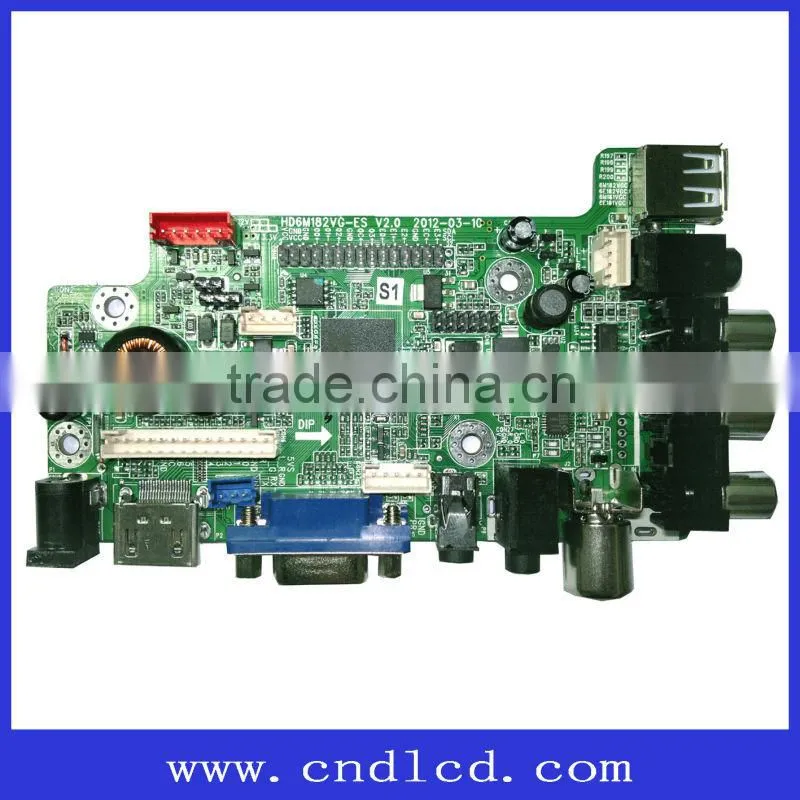

Small Led Display Board With HDMI,VGA,USB for HD LCD TV
- HONGKONG
You May Like
-
Plasma Tv Power Board Obama CND
-
Tv Power Supply Boards
-
LED LCD TV Mother Board Manufacturer ShenZhen
-
HDM I DVI DP VGA WUXGA Resolution LCD LED LVDS Monitor Panel Controller
-
In-stock Special Offer Controller Board for Analog TV Full HD LCD Panel
-
Universal LED LCD TV Driver Main Mother Control Board With Jumper 2 HDMI
Product Details
Place of Origin | Guangdong, China | Brand Name | CND | |
Model Number | HD6M182VG-ES-LCD | Type | TFT |
Product Description

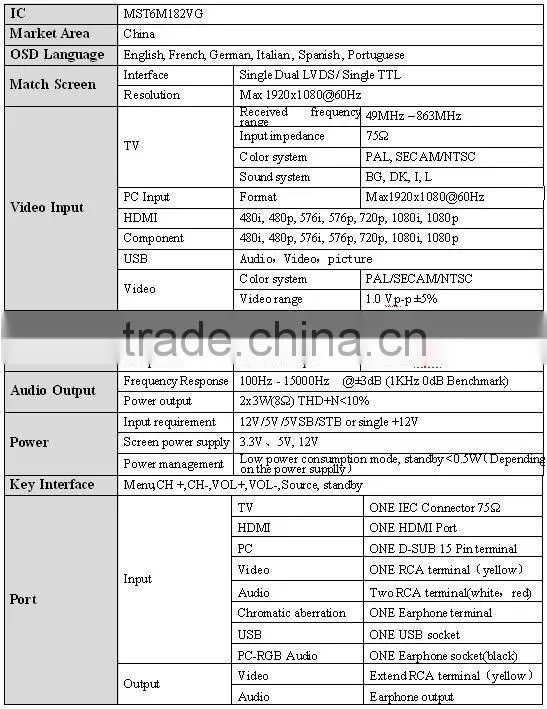

Specifications
Small led display boardsupports FULL HD 1920X1200 resolution TFT-LCD screen
LCD TV strcture
MSTAR program
Small led display board
1. The lcd TV board is suitable for worldwide analog TV system PAL/the NTST/the SECAM,
Which is compatible with LCD board in market mainstream manufactures,such as SAMSUNG,CMO,AU,LGP,SHARP,BOE and so on
2. It can reappear picture color and sound in real world .Key IC adopt MSTAR single chip mMST6M18VG program
3. TV system support PAL+SECAM/NTSC system,optional full standard system .
4. Max supports FULL HD 1920X1200 resolution TFT-LCD screen.
5. Optional LCD TV strcture or LED TV strcture.
6. Optionally used for vehicle,Monitor series mainboard .
7. Analog high definition port signal(ypbpr)input,Max support 1080 format.
8. High definition digital multimedia port(HDMI)1.4,HDCP1.2 and DVI 1.0.
9. USB port,supports Audio(MP3 WMA),Video (AVI RM RMVB MPEG1~4,H.264),Picture(JPEG BMP PNG),Text file(TXT)
10. Dynamically adjust picture's color , contrast ratio, definition and so on.
11. Brightness, chroma instantaneous improvement function , black / white level extensions function , color compensation function
12. 3D video decoding ( PAL / NTSC ) , brightness separation , spatial noise reduction function
13. Supports control of treble or bass ,Stereo input.
14. Rating of Audio loudspeaker output is 3w*2(8ohm)
15. Automatically detect input video format.
16. Imitation WINDOWS XP interface OSD ,Humanization operating menu.
17. Reliable EMC and treatment measure of anti-static.
