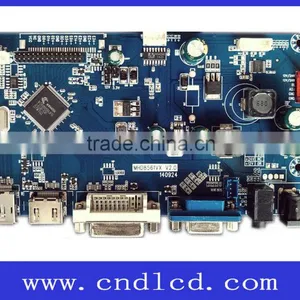

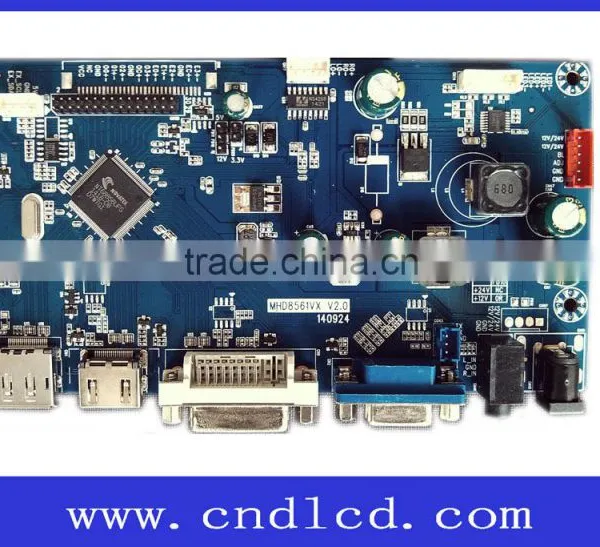

HDM I DVI DP VGA WUXGA Resolution LCD LED LVDS Monitor Panel Controller

US$ 12.5 - 16 MOQ: 1 Piece

Key Specifications

Get Latest Price

Brand Name:

CND

Model Number:

MHD8561

Place of Origin:

Guangdong, China

Contact Supplier Request Quote Chat Now

CND Electronic Technology (Shenzhen) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

FOB HK

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name CND

Model Number MHD8561

Place of Origin Guangdong, China

Product Description

Product Name: HDM I DVI DP VGA WUXGA Resolution LCD LED LVDS Monitor panel Controller

Model No.: MHD8561VX

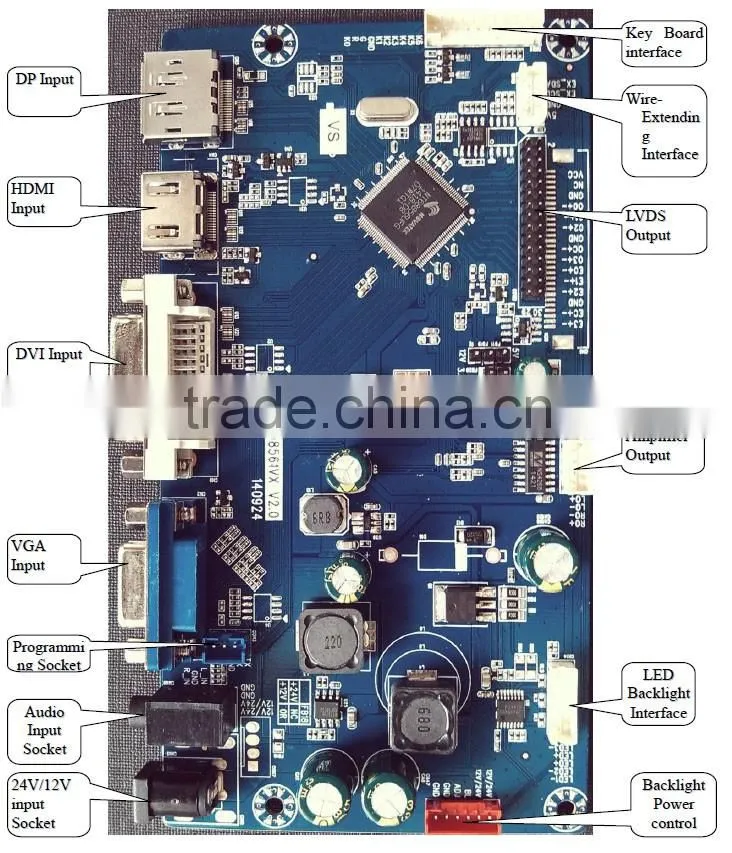

LCD Display Solution Mother Driver Controller Main Board Key Feature:

1. Used for LCD display Monitor Advertising Machine, Digital Photo Frame;

2. Support Resolution Up to WUXGA 1920x1200 @60HZ

3. Audio Amplifier Power Output 2Wx2

4. Integrated LED baclkight driver, it can drive LCD panel not larger than 32inch.

5. Input:DP + HDMI + DVI + VGA + Audio

6. Ouput: LVDS standard

LCD Display Solution Mother Driver Controller Main Board Specification

Item	Specification
Signal Input	VGA: Analog RGB(0.7Vp-p) (TTL)
	DVI:TMDS
	DP V1.2 16 bits deep color mode
	HDMI V1.4 Adobe color space
Support Mode	DOS, VGA, SVGA, XGA, SXGA+, UXGA, WXGA, WXGA+, WSXGA, WSXGA+, WUXGA ETC.
Color	24bit
Horizontal Frequncy	30-94.5KHz
Field Frequency	56-75Hz
Output	Dual LVDS Standard
Audio Output Power	8ohm 2W×2
Control Key	POWER,BRI+,BRI-,AUTO,NENU,LED_R,LED_G
OSD Menu	Brightness, Contrast, Auto, Phase, Clock, Field Position, Function, Reset;
OSD Language(Optional)	Chinese, English, French, Italian, Arabian etc.
Power Input	24V/12V(+/-0.6V)(DC)
Power Operation	Normal Work Mode
Size	155mm(L)x82mm(W)x16mm(H)
Plug & Play	Support
Power Management	Standby Power < 1W

Application:

Our Services

One Year Quality Warranty;

Provide 1‰ free spares with all goods;

Software Services;

Application:

Packaging & Shipping

Company Information

CND RD Team

Quality Assurance

Workshop and equipments

CND Certificates: ISO, Patent, Hi-Tech

FAQ

Q: Where are you located? How can I get there?

A: Our office is in Shekou Nanshan Shen Zhen. It's very close to ShenZhen Bay. it takes just 0.5h from HK to ShenZhen Bay.

Q: We are using several panel. how to match and change the software?

A: Our software supports panel select by jumpet hat. no need change software for different panel.

Q: What's delivery time? what's the shipping methord?

A: 15 days delivery time after get depositb. we are 100% be sure delivery on time. we can accept shipment via sea or air as customer requested.

Q: Who we are? what's our Brand?

A:We are CND Electronic Technology (ShenZhen) Co., Ltd.

is our registered Brand.

Q: What's our core product and services?

A: AD/AV Board, LCD / LED TV main controller driver board Solution, LCD Monitor main Driver Controller Solutions

Q: What are our product applied in, and who is our Customer?

A: by far, our AD board solutions have applied in:

1. Mobile-TV of High-speed Railway Train for CRRC, and for subway train;

2. Touch-Screen ATM Display of BOC (Bank of China), CBC (Contruction Bank of China), ABC, etc

3. Monitors of industrial control, for instance Security-montoring

4. Monitors of some Famous Chinese Brand, for example HKC, AOC, ViewSonic, etc.

Q: What are our capability and advantages?

A: We've proud that

1. CND is the only AD board solution company whose 2K board have been sold more than 100K. and

2. We're the first company developed UHD 4K board solutions.

3.CND is the first one who have passed Freesync Cetification.

4. CND is the first one developed Type-C 4K *2K board.

5. Integrated PQ services, including GAMMA, OD, AdobeRGB 100%, free sync dynamic OD, FPS/RTS precise color...

6. Integrated Customization sevices from OSD/LOGO, PC OSD Menu, Uart extension, IR extension
