Small Led Display Controller Board for Led tv (small Size)

FOB Price

US$ 10.3 - 11 / Piece

100 Pieces(Min. Order)

Port HONGKONG

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	CND		Model Number	HDV29-ES
Place of Origin	Guangdong, China

Product Description

Specifications

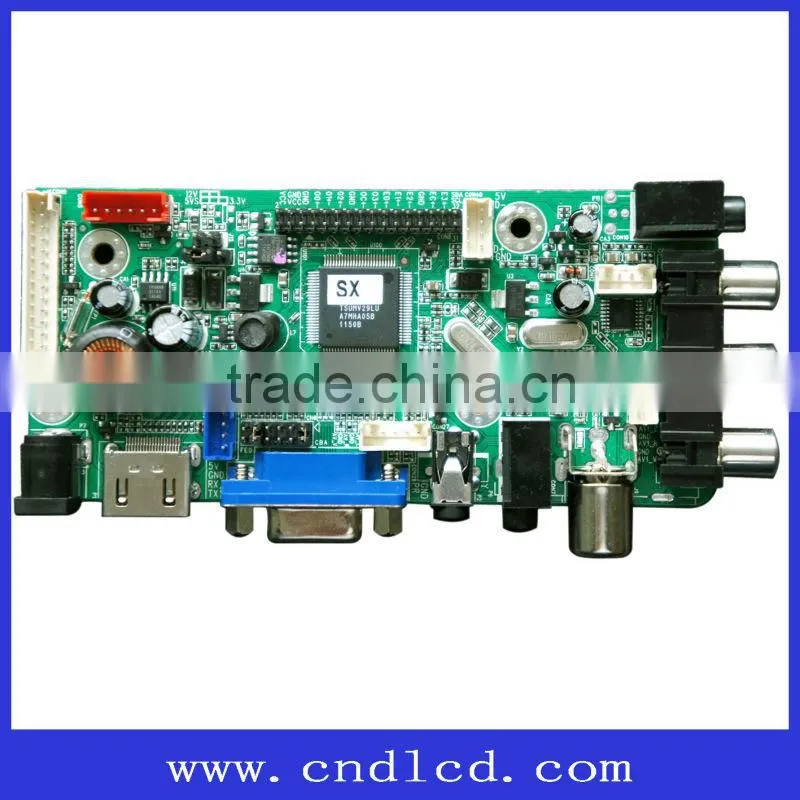

small led display board
mother board system:PAL/NTSC/SECAM
suitable with SAMSUNG, CMO, AU, LGP,SHARP,BOE etc panel

Small led display board

1. This TV controller board is suitable for analog TV system PAL/NTSC/SECAM

which is compatible with LCD board market mainstream manufacturers,such as SAMSUNG, CMO, AU, LGP,SHARP,BOE and so on

2. IT can reappear real-world image color and sound

3. Main IC using MSTAR single chip TSUM29LU program(optional TSUM39LU chip)

4. TV system supports PAL + SECAM/NTSC system,also can choose all standard system

5. Max supportS FULL HD 1920X1200 resolution TFT-LCD screen

6. One USB port supports to update online

7. One analog HD port signal(YPBPR)input,Max support 1080p format

8. One high-definition digital multimedia interface(HDMI)1.3A, HDCP1.2 and DVI 1.0

9. 2D video decoding ( PAL / NTSC ) , brightness separation , spatial noise reduction function 2D

10. Supports control of treble or bass ,Stereo input

11. Rating of Audio loudspeaker output is 3w*2(8ohm)

12. Automatically detect input video format

13. support4:3 and 16:9 display mode switch

14. color OSD,humanization operating menu

15. Reliable EMC and treatment measure of anti-static

16. 12V DC power input(be compatible with builting-in powe 12V/5VS/5V/STB)

17. Can be used to car,monitor series main board

18. Optional LCD TV and LED TV structure
