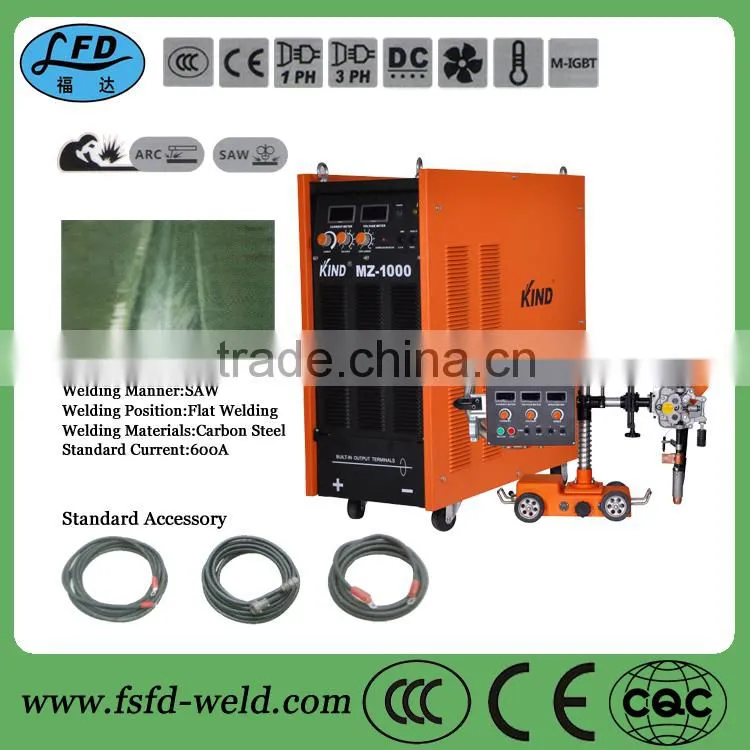

MZ-1250 IGBT Inverter Automatic Submerged Arc welding machine Inverter Arc welding machine
Model |
MZ-630 |
MZ-800 |
MZ-1000 |
MZ-1250 |
MZ-1600 |
Input |
380V |
380V |
380V |
380V |
380V |
Rated |
53A |
68A |
85A |
106A |
135A |
Output |
60-630A |
60-800A |
60-1000A |
60-1250A |
60-1600A |
Output |
44V |
44V |
44V |
44V |
44V |
Duty |
60% |
60% |
100% |
100% |
60% |
No-load |
80V |
110V |
100V |
110V |
110V |
Rod Diameter |
0.8-2.0MM |
3.2-2.5MM |
3.2-6.0MM |
3.2-6.0MM |
3.2-6.0MM |
Power |
0.93(COSΦ) |
0.93(COSΦ) |
0.93(COSΦ) |
0.93(COSΦ) |
0.93(COSΦ) |
Efficiency |
85% |
85% |
85% |
85% |
85% |
Protection |
IP21S |
IP21S |
IP21S |
IP21S |
IP21S |
Cooling Type |
Air-cooling |
Air-cooling |
Air-cooling |
Air-cooling |
Air-cooling |
N.W |
76KG |
76KG |
100KG |
110KG |
110KG |
Dimensions |
760*350*780 |
760*350*780 |
820*370*900 |
820*370*900 |
820*370*900 |
1, Performance Characteristics
1), Adopted PWM soft switch technology, ensured stable working of IGBT component in low temperature. High efficiency and reliability, small electromagnetic interference;
2), Adopted power factor correction technology, high power factor. It' s a kind of high efficiency and energy saving equipment;
3), High duty cycle ensures continuous working for long time.
4), Good arc starting current adjusting function, can automatically adjust output current during arc starting. Greatly raised the success rate of art starting;
5), Excellent arc force current adjusting function, can automatically adjust output current when arc length is shorten, greatly avoid wire sticking;
6), The fusion depth, fusion width and surface height of weld bead can be adjusted by precisely setting welding current, welding voltage and speed of welding vehicle. Nice weld bead and high quality.
7), Automatic protection on under-voltage, over-current, over-heating, over-loading and default phase, ensured machine's safety, durability and reliability;
EMC (Electro Magnetic Compatibility) function with powerful grid filtering ability, reduced power supply contamination. Good anti-interference ability ensures excellent protection of internal circuit and components, which makes the machine more stable.
8), The intelligentized welding vehicle makes convenient operation, wire feeder with dual roll driver and flexible wire ensure stable and reliable wire feeding;
9), The arc starting of SAW compounds scratch mode and pumpback mode, which makes high success rate of arc starting;
10), The machine has wide range of current regulation, the smallest current less than 60A.
2, Display Mode: Digital Tube
3, Materials Welding: Carbon Steel etc
4, Usage: Heavy industry etc
5, Application
Machinery manufacturing, steel structures, shipbuilding manufacturing, pressure vessel etc.
6, R&D Team and Quality Control
Our R&D center has a young and experienced R&D team. They are the industry's elite and the pioneer, the R&D department is responsible for new technology, new product research and development and industrial production follow-up.
Our company makes use of advanced production equipment and testing equipment following the ISO9001 quality assurance system, which is in strict accordance with the requirements of production to ensure product quality and reliability. The production process to implement the "three inspection" (self-inspection, mutual inspection, special inspection) procedures to ensure control of product quality. The manufactured products require the "three pass" (raw material into the plant pass, semi-finished product pass, finished off the factory pass) to ensure reaching the required quality; finished product storage, transportation and sales in the market were also included in the product quality management.
7, Our Services
1), We will be answer within 24 hours, welcome to contact with us if you have any problems. we warmly welcome to visit our company and looking forward to cooperating with you.
2), We can offer OEM or ODM service, according to customers requirements.
3), Unique and exclusive solution can be provided to our customers by our professional engineers.
8, Packaging & Shipping
9, Sales Markets
Foshan Fuyin Welding Equipment Co., Ltd is a professional manufacturing and developing company in the line of spot welding machine and Automatic devices of wire products series products. Our products are exported to South America, Mid East, Russia, Europe and countries around the world.
For more information, please feel free to contact us, your satisfaction is our top priority!
