Product Details
Condition: | New | Place of Origin: | Guangdong, China | Brand Name: | KIND |
Model Number: | CT-416 | Voltage: | 220V, 50/60Hz, 1 phase | Rated Power: | 7.2KVA |
Dimension(L*W*H): | 460*210*375mm | Weight: | 13.4kg | Certification: | CCC, CE, CQC |
Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

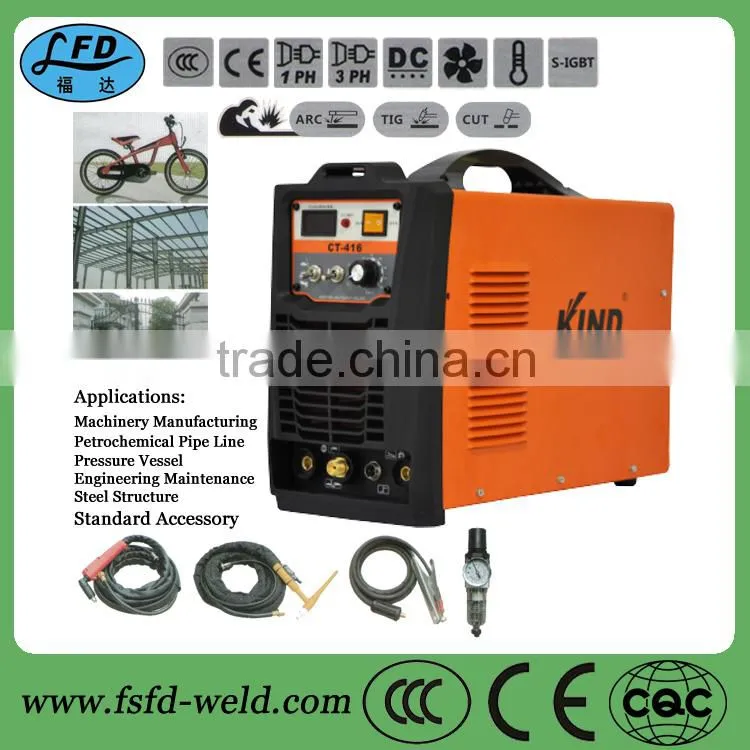

Inverter dc tig cutting mma 3 in 1 inverter plasma cut welder
Model | LGK-70 | LGK-100 | LGK-100K | CT-416 |
Input | 380V | 380V | 380V | 220V |
Rated | 13KVA | 22.4KVA | 15KVA | TIG:4.9KVA MMA:7.3KVA CUT:7.2KVA |
Output Current | 20-70A | 20-100A | 30-100A | TIG:10-160A MMA:10-150A CUT:20-40A |
Output Voltage |
|
| 88-120V |
|
Arc Starting |
|
| Non-contact | TIG:HF MMA: Contact CUT: Contact |
Duty | 40% | 50% | 60% | TIG:60% MMA:60% CUT:60% |
No-load Voltage | 280V | 300V | 320V | TIG:62V MMA:62V CUT:275V |
Gas Flow | 0.25L/MIN | 0.36L/MIN | 0.4L/MIN | CUT:0.17L/MIN |
Max Cutting Thickness | 25MM | 35MM | 35MM | CUT: Carbon Steel 12MM |
Protection | IP21S | IP21S | IP21S | MMA:IP21S |
Insulation | F | F | F |
|
Cooling Type | Air-cooling | Air-cooling | Air-cooling | Air-cooling |
N.W | 19KG | 28.4KG | 35KG | 13.4KG |
Dimensions | 530*225*380mm | 660*265*475mm | 680*285*505mm | 460*210*375mm |
1, Performance Characteristics
1), Pulse width Modulator (PWM) controller with close-loop control system to ensure machine's working stability;
2), With inverter frequency 100kHz, conversion efficiency up to 85%, low consumption in no-load cycle;
3), One machine with multi-functions makes cost down;
4), Electronic function switch, easy operation and more intelligentized.
2, Materials Welding
Carbon Steel, Stainless steel, alloy steel, copper, titanium, aluminum, cast iron etc
3, Usage
Light Industry, Civil use etc
4, Application
Machinery manufacturing, steel manufacturing, petrochemical pipe line, pressure vessel, engineering maintenance etc.
5, R&D Team and Quality Control
Our R&D center has a young and experienced R&D team. They are the industry's elite and the pioneer, the R&D department is responsible for new technology, new product research and development and industrial production follow-up.
Our company makes use of advanced production equipment and testing equipment following the ISO9001 quality assurance system, which is in strict accordance with the requirements of production to ensure product quality and reliability. The production process to implement the "three inspection" (self-inspection, mutual inspection, special inspection) procedures to ensure control of product quality. The manufactured products require the "three pass" (raw material into the plant pass, semi-finished product pass, finished off the factory pass) to ensure reaching the required quality; finished product storage, transportation and sales in the market were also included in the product quality management.
6,
1), We will be answer within 24 hours, welcome to contact with us if you have any problems . we warmly welcome to visit our company and looking forward to cooperating with you.
2), We can offer OEM or ODM service , according to customers requirements.
3), Unique and exclusive solution can be provided to our customers by our professional engineers.
7,
8, Sales Markets
Foshan Fuyin Welding Equipment Co., Ltd is a professional manufacturing and developing company in the line of spot welding machine and Automatic devices of wire products series products. Our products are exported to South America, Mid East, Russia, Europe and countries around the world.
For more information, please feel free to contact us, your satisfaction is our top priority!
