Specifications
high frequency welding machine1.Portable
2.Low cost
3.Foot pedal is optional
4. High efficiency
high frequency welding machine TIG-500
Features:
Mosfet Type:
1,IGBT high frequency soft switch transform,high effciency and reliability;
2,MCU controlled technology, multi-function in one machine, convenient to use;
3, Foot pedal to control current is optional;
4, Passive power factor correction makes power factor higher;
5,Easy to arc starting,stable arc, high performance;
6, Accurate adjustment can achieve great penetration, aesthetic appearance of weld seam and low electrode consumption
Specification:
| Model | TIG-180G* | TIG-200G* | TIG-250G* |
| Rated input voltage(v) | single phase AC220±15% | single phase AC220±15% | three phase AC380±15% |
| Rated frequency(Hz) | 50/60 | 50/60 | 50/60 |
| Rated input power(KVA) | 5 | 5.7 | 8 |
| Rated input current(A) | 23 | 26 | 12 |
| Rated output | 155A/26.2V | 170A/26.8A | 220A/28.8V |
| Output current(A) | TIG:20-175 MMA:20-155 | TIG:20-190 MMA:20-170 | TIG:20-220 MMA:20-220 |
| No-load voltage(V) | 56±5 | 62±5 | 62±5 |
| Rated duty cycle(%) | 60 | 60 | 60 |
| Efficency(%) | 80 | 80 | 80 |
| Power factor | 0.7 | 0.7 | 0.7 |
| Protection grade | IP21 | IP21 | IP21 |
| Insulation grade | F | F | F |
| Net weight(kg) | 5.5 | 6 | 20 |
| Gross weight(kg) | 6.5 | 7 | 22 |
| Housing of machine | iron | iron | iron |
| Dimension of machine(mm) | 335*120*200 | 335*120*200 | 480*200*375 |
| Dimension of packing 1V1(mm) | 428*228*226 | 428*228*226 | 472*237*336 |
| Dimension of packing 4V1(mm) | 475*445*485 | 475*445*485 |

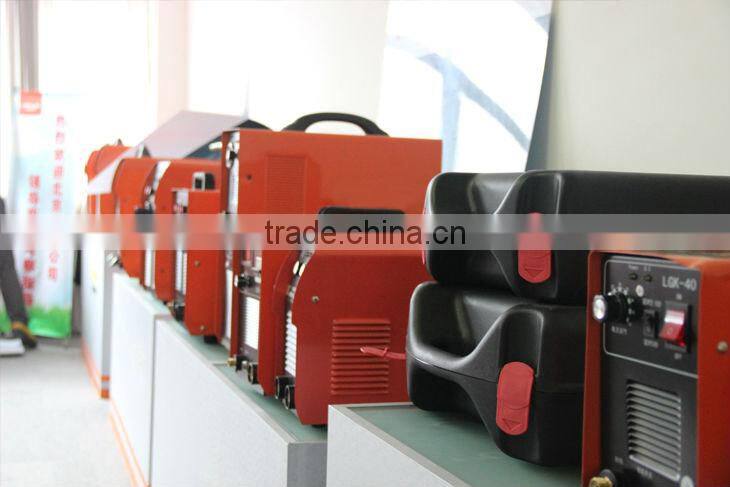

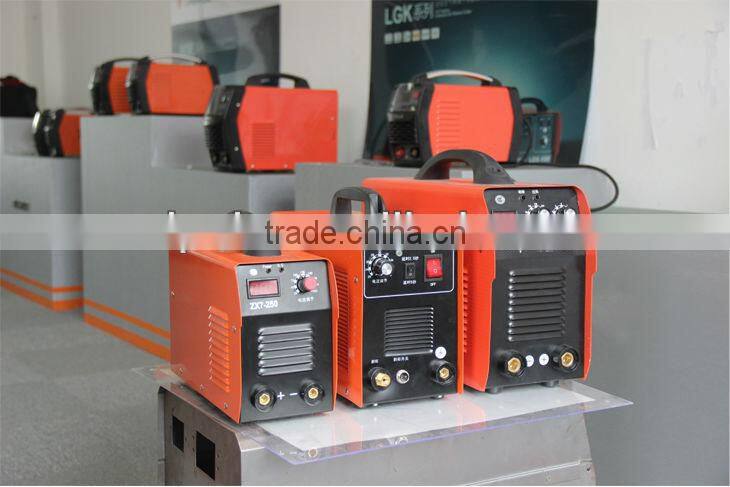

Picture:
2014 Newest Portable electric arc welding machine for band saw blade
2014 Newest Portable electric arc welding machine for band saw blade

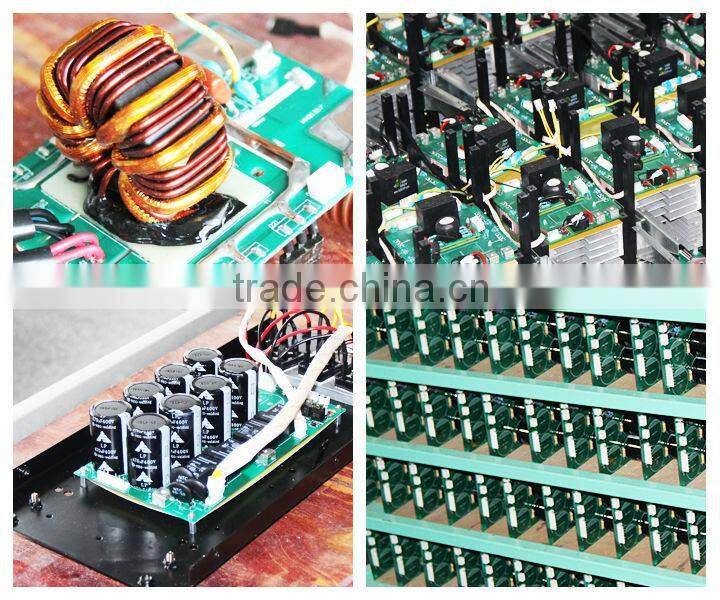

Testing:
2014 Newest Portable electric arc welding machine for band saw blade
Packing Shows:
- Customized and OEM orders are welcome
- Customized drawings, requirement produce special sizes or color boxes are accepted
- Lead-time: for sample order, will delivery it within 4 to 7 working days after got the payment, for large quantity order, the lead time need to be confirmed again
- Payment terms: T/T, Western Union and PayPal
2014 Newest Portable electric arc welding machine for band saw blade
Certificate:
2014 Newest Portable electric arc welding machine for band saw blade
Saip Electric Group Co., Ltd (called "Saip" for short) is an enterprise specialized in design, production and sales of electric equipments.Had office located in the largest manufacturing base of electric equipment of Wenzhou China, which is called "the Electric Equiment Capital of China".
Saip has Five specialized branches, over 300 specialized cooperative partners. Saip, an ISO9001 certificated enterprise, owns modern production lines and high quality controlling equipment with scientific administration, professional engineers, highly trained teams technicians and skilled workers.
Now Saip has five design and production bases in Hong Kong, Taiwan, Singapore, Turkey and Wenzhou(China Mailand), 28 sales organizations in the world and more than 50 holding member enterprises.
Saip products cover low-voltage apparatus, welding equipment, instrument and meter, photoelectron, electrical products for construction ,automobile apparatus and industrial automation. The products are sold to more than 100 countries and regions. All exported products have passed through the certification of CE and partial products have passed through several kinds of international certification like ROHS, TUV, UL ,KEMA,S,SIRIM and so on. Saip as always inherits "high quality and sincere service".
