Hydraulic Cutting Automatic Color Steel Roll Forming Machine for Philippines for Roofing Sheet

hydraulic cutting Automatic color steel roll forming machine for Philippines for roofing sheet

Gazed tile roll forming machine is used for producing metal arc bias glazed roofing tiles.

This kind of tiles looks beautiful,old-timely and noble.

They are wodely used as the roof of garden like factory,hotel,exhibition center,villa,civil construction,ect.

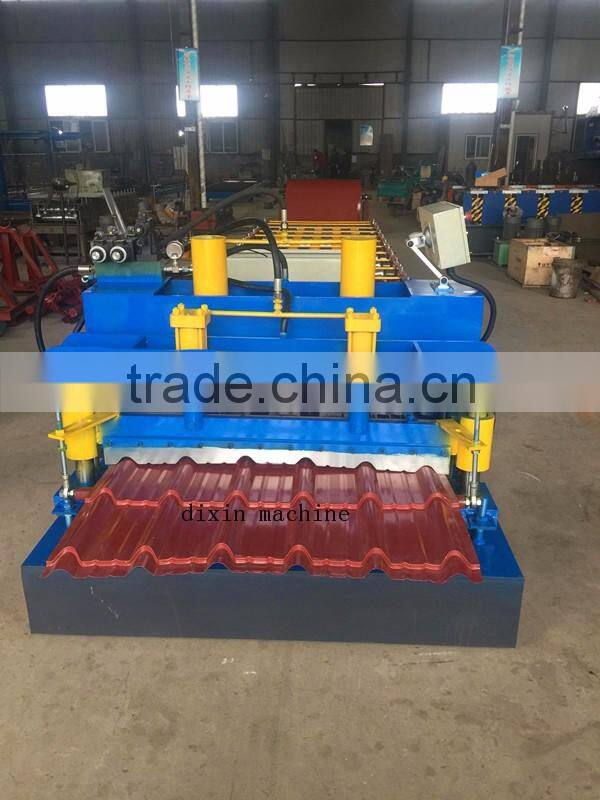

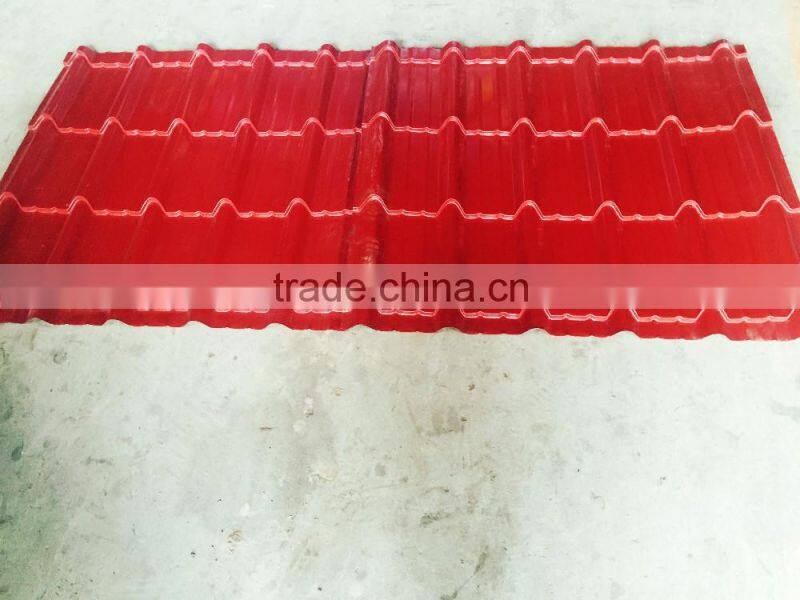

sample Panel of  hydraulic cutting Automatic color steel roll forming machine for  Philippines for roofing sheet

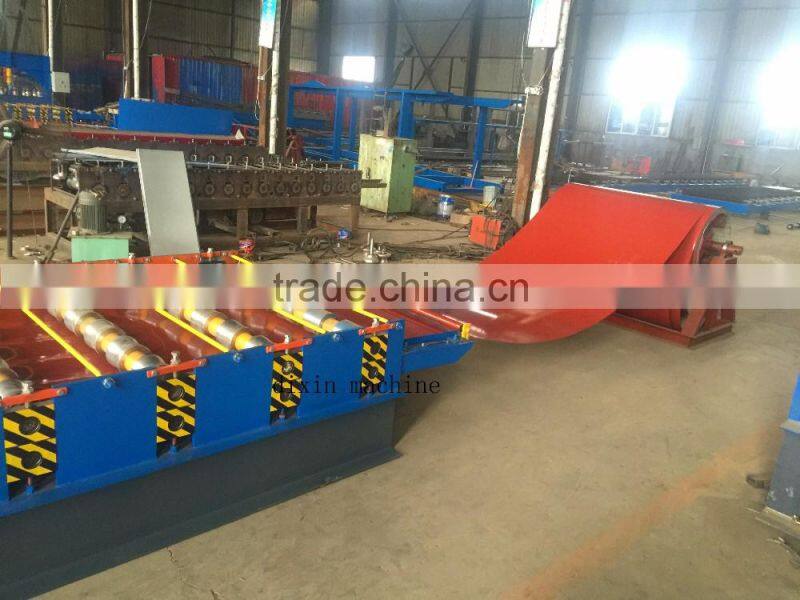

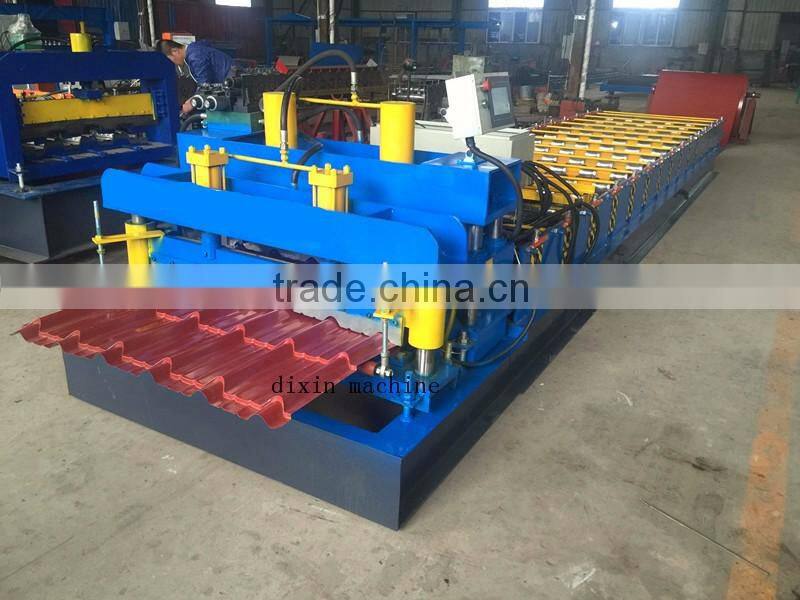

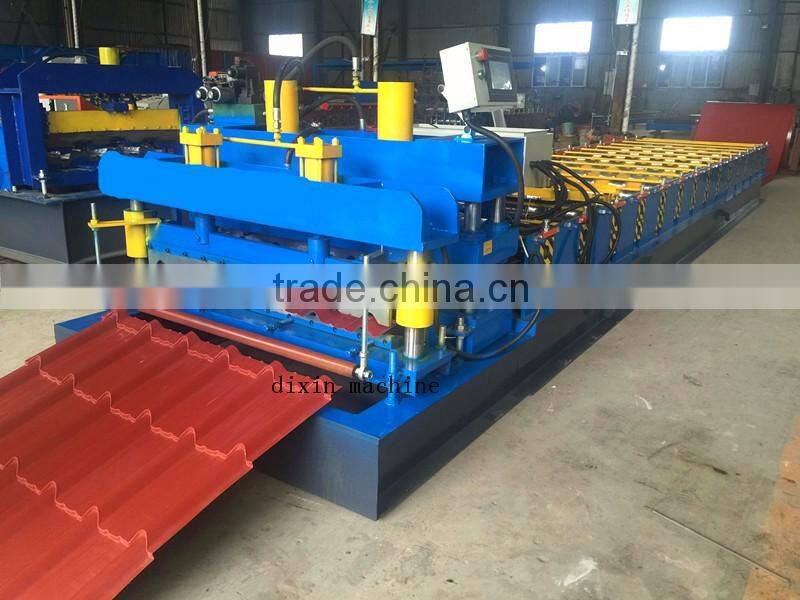

consist of hydraulic cutting Automatic color steel roll forming machine for  Philippines for roofing sheet

Technical parameters of hydraulic cutting Automatic color steel roll forming machine for  Philippines for roofing sheet

(1) material: color steel sheet, galvanized sheet, aluminium sheet

(2) Thickness of the plate : 0.3-0.8mm

(3) Input width of the plate: 1000mm

(4) Effective width of the plate :828mm

(5) Productivity :8-12m/min

(6) Roller steps :9 rows

(7) Roller material: 45# steel

(8) Diameter of active shaft: 70mm

(9) Wall thickness of the main forming machine: 12mm steel plate

(10)Main forming machine body : 250mmH steel

(11) Transmission chain is1’’; 828/1035-207-28

Reducer is 5.5kw Xingxing Cycloid which works stably and no noise.

(12) Cutting hydraulic systerm :the motor power is 3kw, no noise, work stably, long life expentancy.

(13) PLC control systerm, easy to operate, high precision and work stably.

(14) Dimensions of major structure:6200mm*1400mm*1500mm

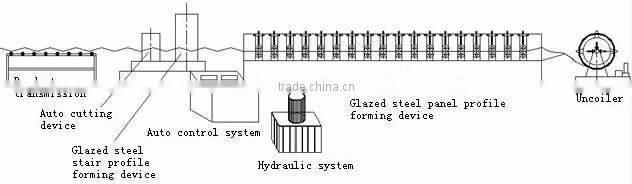

Processes: Uncoiler—Roll forming machine—PLC system—Hydraulic system—Mold pressing machine-Post cut

cutting of hydraulic cutting Automatic color steel roll forming machine for  Philippines for roofing sheet

Equipment maintenance

Maintenance of roof panel roll forming machine is quite easy. We recommend that you regularly feed lubricant

to the machine gear, chain and moving parts to reduce friction and avoid rusting. Make sure the power lines

are properly connected before starting the machine, and at regular intervals, change the gear oil

and hydraulic oil.

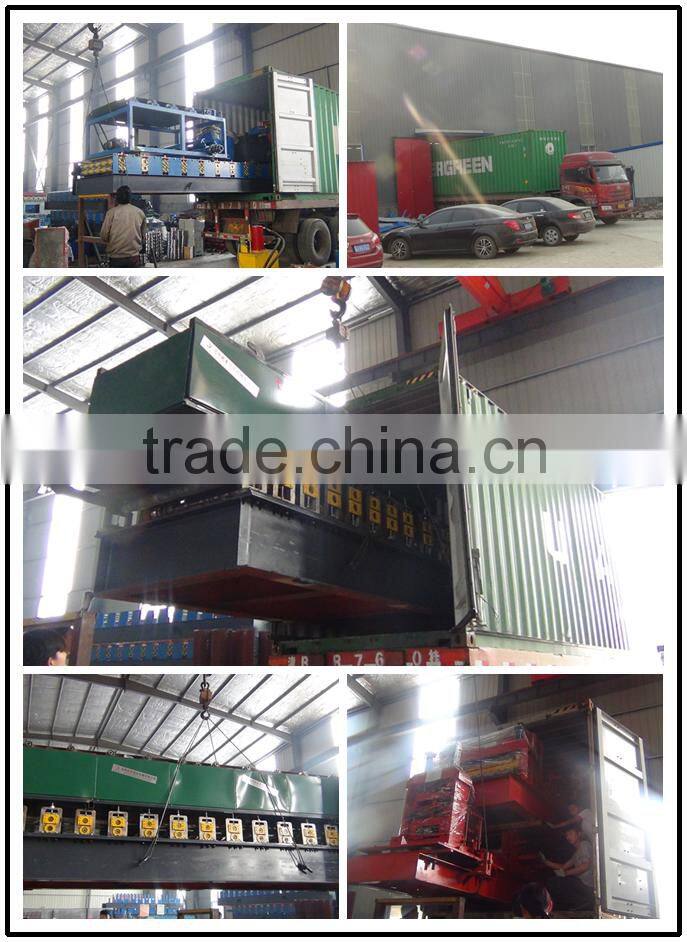

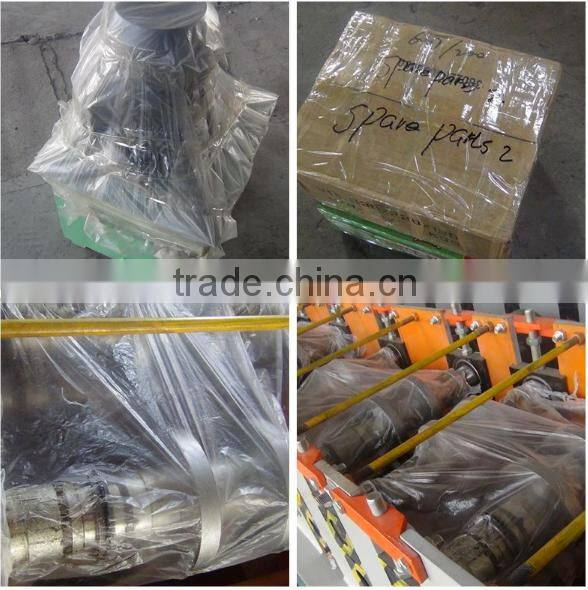

Packaging of hydraulic cutting Automatic color steel roll forming machine for  Philippines for roofing sheet

our roof panel roll forming machine is wrapped in a waterproof package

Factory show and CE certification, Iso certification

Customer show and we in Exhbition

Service

We provide a one year warranty and lifelong technical support will be provided.

we can send our technicians to you to give you onsite training. The training period would be for no more than

one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of USD100

Advantage

1 more than 20 years' professional engineer and designer

2 direct factory price

3 good quality and quality gurantee for one year,lifelong technical support

4 various kinds can be designed according to your requirements,including related equipment,bending,cutting,roll forming,

  sandwich panel prooduction line machine.

5 easy to ship and install.On-site training and guiding is available.

6 kind and smile service

Engineer on abroad for installing our machine for customer

Please feel free to contact. A better quotation will be offered for  comparision within 12 hours

hydraulic cutting Automatic color steel roll forming machine for  Philippines for roofing sheet, contact to me.

Contact: Bella           Whatsapp: 008618231723279
