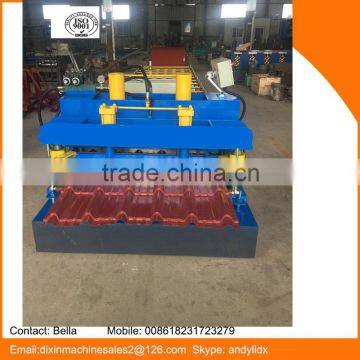

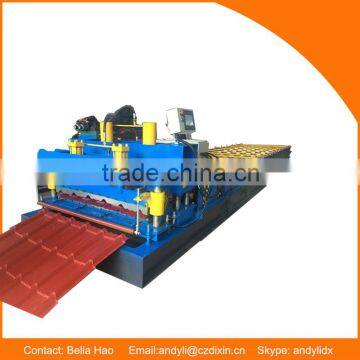

popular type Cangzhou Dixin steel profile 1035 glazed tile steel sheet making machine roll forming machine for roofing tile
Gazed tile roll forming machine is used for producing metal arc bias glazed roofing tiles.
This kind of tiles looks beautiful,old-timely and noble.
They are wodely used as the roof of garden like factory,hotel,exhibition center,villa,civil construction,ect.

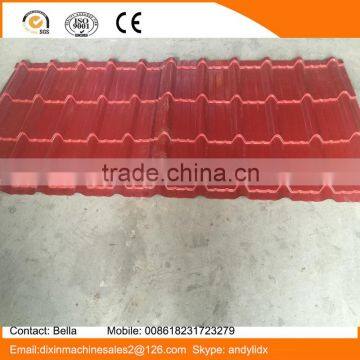

sample Panel of popular type Cangzhou Dixin steel profile 1035 glazed tile steel sheet making machine roll forming machine for roofing tile
consist of popular type Cangzhou Dixin steel profile 1035 glazed tile steel sheet making machine roll forming machine for roofing tile

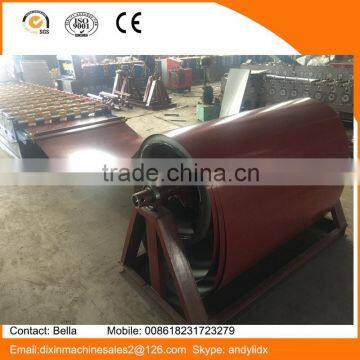

| 1 | uncoiler and its base |
| 2 | coil sheet guiding equipment, |
| 3 | roll forming system, |
| 4 | hydraulic pressing equipment, |
| 5 | post cutting equipment, |
| 6 | hydraulic station, |
| 7 | controlling system, |
| 8 | supporter table. |
Technical parameters of popular type Cangzhou Dixin steel profile 1035 glazed tile steel sheet making machine roll forming machine for roofing tile:
(1) material: color steel sheet, galvanized sheet, aluminium sheet
(2) Thickness of the plate : 0.3-0.8mm
(3) Input width of the plate: 1000mm
(4) Effective width of the plate :828mm
(5) Productivity :8-12m/min
(6) Roller steps :9 rows
(7) Roller material: 45# steel
(8) Diameter of active shaft: 70mm
(9) Wall thickness of the main forming machine: 12mm steel plate
(10)Main forming machine body : 250mmH steel
(11) Transmission chain is1’’; 828/1035-207-28
Reducer is 5.5kw Xingxing Cycloid which works stably and no noise.
(12) Cutting hydraulic systerm :the motor power is 3kw, no noise, work stably, long life expentancy.
(13) PLC control systerm, easy to operate, high precision and work stably.
(14) Dimensions of major structure:6200mm*1400mm*1500mm

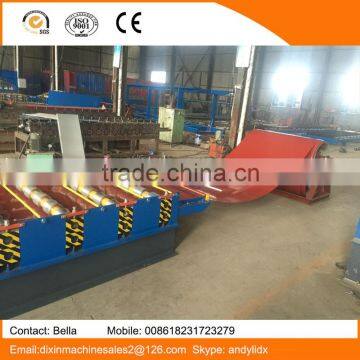

Working flow of popular type Cangzhou Dixin steel profile 1035 glazed tile steel sheet making machine roll forming machine for roofing tile
Processes: Uncoiler—Roll forming machine—PLC system—Hydraulic system—Mold pressing machine-Post cut
Equipment maintenance
Maintenance of roof panel roll forming machine is quite easy. We recommend that you regularly feed lubricant
to the machine gear, chain and moving parts to reduce friction and avoid rusting. Make sure the power lines
are properly connected before starting the machine, and at regular intervals, change the gear oil
and hydraulic oil.
Packaging of popular type Cangzhou Dixin steel profile 1035 glazed tile steel sheet making machine roll forming machine for roofing tile
our roof panel roll forming machine is wrapped in a waterproof package
Factory show and CE certification, Iso certification
Customer show and we in Exhbition
Service
We provide a one year warranty and lifelong technical support will be provided.
we can send our technicians to you to give you onsite training. The training period would be for no more than
one week with the customer paying for the visa, return ticket, food, accommodations and a daily wage of USD100
Advantage
1 more than 20 years' professional engineer and designer
2 direct factory price
3 good quality and quality gurantee for one year,lifelong technical support
4 various kinds can be designed according to your requirements,including related equipment,bending,cutting,roll forming,
sandwich panel prooduction line machine.
5 easy to ship and install.On-site training and guiding is available.
6 kind and smile service
Engineer on abroad for installing our machine for customer
Please feel free to contact. A better quotation will be offered for comparision within 12 hours
