China Roll Cutting Machinery Metal Roofing Double Layer Glazed Tile Forming Machine
- 20 Set / Sets per Month
- tianjin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Aluminum Roofing Sheet Roll Forming Machine Double Layer Metal Tile Making Machine In China
-
Wholesale profile roll forming machine roofing forming machine
-
Automatic new china color metal corrugated wave roof panel roll forming machine
-
Trade Assurance 840+900 Roof plate wall panel double layer roll forming machine
-
DX 1050/1064 double deck roll forming machine FOB TIANJIN
-
DX Galvanized steel/Aluminum plate 1050/1064 double deck sheet roll forming machine
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Steel | Use | Roof | |
| Production Capacity | 8-12m/min | Place of Origin | Hebei, China | |
| Brand Name | DIXIN | Model Number | roll forming machine | |
| Power(W) | 4+4KW | Voltage | 380V 50Hz 3phases | |
| Dimension(L*W*H) | 7000*1500*1500 | Weight | 5 Tons | |
| Certification | CE BV ISO | Warranty | 12 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Alibaba China Roll Cutting Machinery Metal Roofing Double Layer Glazed Tile Forming Machine
roll forming machine
Machine Description | Quantity | Delivery time | Container Type |
roof tile roll forming machine |
1 SET | 45 working days after receiving deposit |
One 40GP |
roof tile roll forming machine are widely used in building: the steel-structured large-scale warehouses, plants, supermarkets,
Technique parameters of roof tile roll forming machine
(1) Processing material: aluzinc/galvanized steel/colored steel coil
(2) Material thickness: 0.3-0.8mm
(3) Main motor power: 4 kw
(4) Pump power: 4kw
(5) Shaft diameter: 75mm
(6) Forming steps: 13 steps.
(7) Roller material: 45# forged steel, with hard chrome plating
(8) Main frame: 300H steel
(9) Medium plate thickness: 16mm
(10) Control systerm: PLC computer control with inverter
(11) Power supply: 380V, 3 Phase, 60Hz or as your requirement
(12) 0veral sized:about 7000mm*1500mm*1500mm

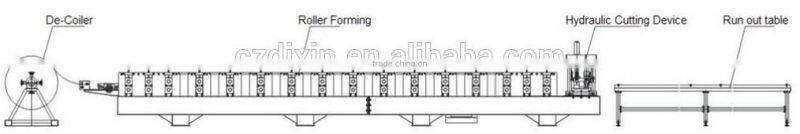

Work Flow:
Manual decoiler Roll forming machine PLC control Hydraulic system Post cut Stacking

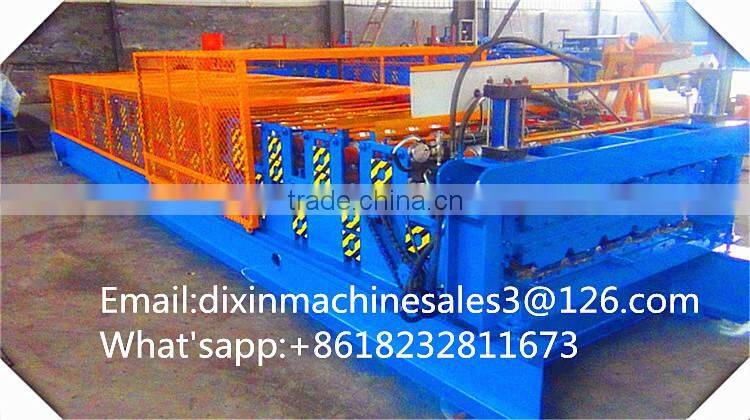

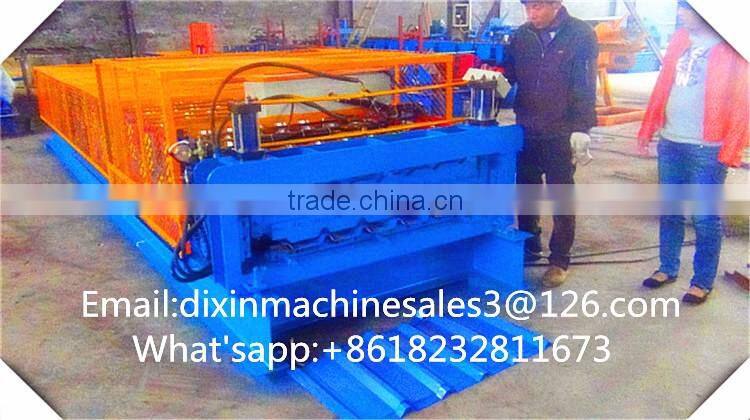

More Picture of roof tile roll forming machine
roof tile roll forming machine Production Process:
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Step formed→ Auto cutting→Products receiving
Other details of roof tile roll forming machine
Advantages of roof tile roll forming machine
workingshop of roof tile roll forming machine
Certificate of roof tile roll forming machine
A:- What service can you provide before order?
- About the pre-sale service. We provide you answers of all your questions on our machines, such as technical parameter, price, payment terms, ect. If you wanna visit our factory and check the machines, we also can send you invitation letter and give you our warmest welcome.
B:- Can you finish the machine during the delivery time?
- We will finish the machine in time according to determined lead time.
C:- Can you provide some spare parts?
- Yes, of course. The quick-wear parts are sent to you together with the machine.
Welcome to contact me directly
cellphone/What'sapp:+8618232811673
