CNC router parts Laser Marking Machine with CE Mark, laser printing machine,Could Mark on Most Metal and Some Non-metal are detailed as follow:
Introductions:
Laser marking machine is a kind of solid laser marking machine which has the most extensive application and mature technologies. It is popular for the High photoelectric conversion rate,Low power consumption and stable laser output.
Highlights:
1. imported UK ceramic condenser chamber, resistant to elevated temperature and corrosion, long life (8-10 years), high photoelectric conversion rate, no need to adjust the lifting plate form to focus when doing engraving within 3mm depth, The speed of making one-time 1mm engraving is 3 times than our Opponent
2. Large power,controled by eletric and software,tunable
3. Low cost,without ink and other print consumables
4. Scanned with high precision by galvo head
5. 24 hrs continuously working
6. Depth: aluminium plate 5mm, steel plate 3mm
7 .Speed:5mm x 5mm steel plate:0.6mm in 10 minutes

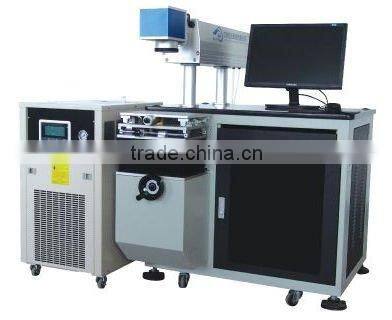

Machine Picture:
Applicable materials:
A):all kinds of ordinary metals and alloys(Iron, copper, aluminium, magnesium, zinc and all metals);
B):rare metals and alloys (gold, silver, titanium); metal oxides, ABS material (electrical appliancescase, daily necessities).
C): ink (translucent key-press, printing products),
D)epoxy resin(electronic components packaging, insulation layer)
Technical parameters:
Max.Outout Power |
50W |
Repetition Precision |
±0.03mm |
Laser Wavelength |
1064nm |
Machine power |
5KW |
Repetition Frequency |
≤50KHZ |
Electric Power Demand |
220V/Single Phase/50Hz/8A |
Standard Marking Scope |
100mmX100mm(optical) |
Optical-Path System Size |
1200mm*190mm*200mm |
Marking Depth |
≤1mm |
Controlling Size |
600mm*600mm*800mm |
Marking speed |
≤7000mm/s |
Min.Character |
0.3mm |
Min.Line Width |
0.015mm |
|
|

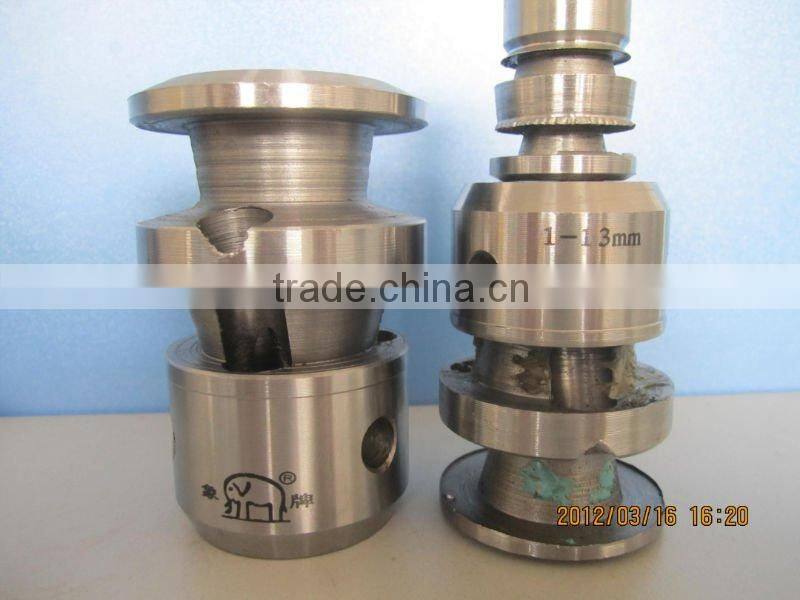

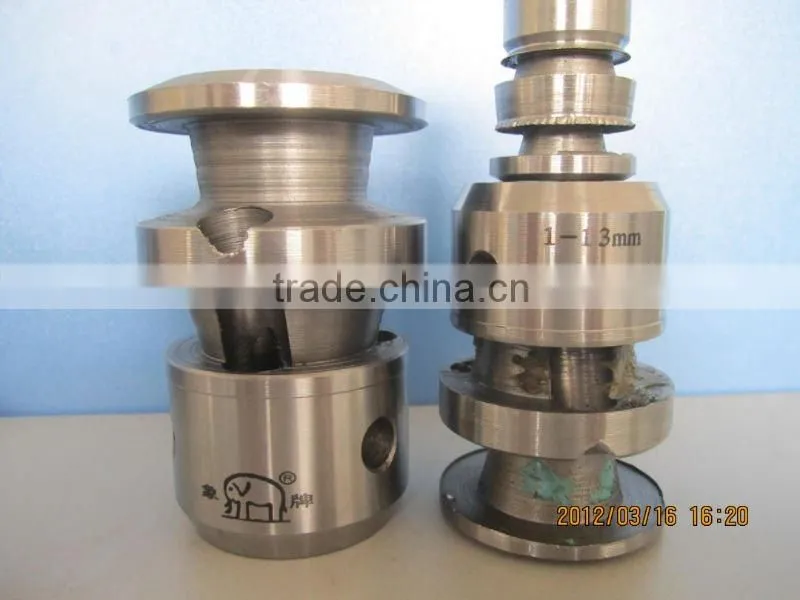

· Sample Picture:
P1:
P2:
P3:
