Home > Products > Power Relay > 12v/24v/220v 10A 8pins round base universal electromagnetism relay LMK-2P DC12V/DC24V/AC220V
12v/24v/220v 10A 8pins round base universal electromagnetism relay LMK-2P DC12V/DC24V/AC220V
- 500000 Piece / Pieces per Month
- Ningbo/Shanghai
- Credit Card
You May Like
-
12vdc/24vdc/220vac universal general purpose 10A 11pins electromagnetic 12v relay LMK-3P
-
5A 8pins dc12v dc24v ac220v general purpose relay/universal realy/ power relay/relay JQX-10F-2Z(JTX)
-
5A 11PINS 12VDC 24VDC 220VAC change-over general purpose Electromagnetic relay JTX-3Z/5A relay
-
5pins 40A general purpose PCB electromagnetic relay LJQX-15F/T90 dc12v/dc24v/ac220v
-
5pins 40A auto PCB relay/power relay/auto relay JQX-16F(T91 1Z)
-
Electromagnetic relay LR11P/INDIA relay LP11/PR41
Product Details
| Place of Origin | Zhejiang, China | Brand Name | LIRRD | |
| Model Number | LMK-2P | Theory | Electromagnetic Relay | |
| Usage | Other, CIRCUT CONTROL | Size | Other, 34.5 x 34.5 x 52.5mm | |
| Protect Feature | Sealed | Contact Load | Other, 10A |
Product Description

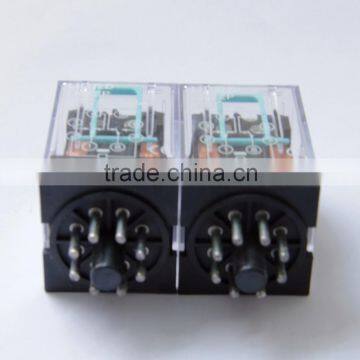

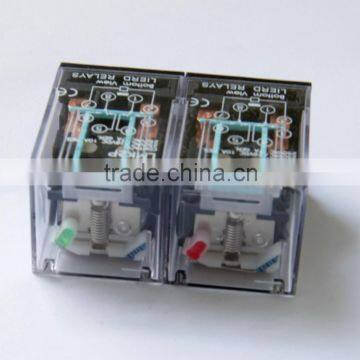

8 pins round base universal electromagnetism relay LMK-2P/JTX DC12V DC24V AC220V
Dimension | 34.5 x 34.5 x 52.5mm | |
Contact | Form | 2Z OR 2C |
Material | Silver alloy | |
Resistance Performance | 10A/28VDC 10A/240VAC | |
Resistance at 6VDC 1A | ≤100mΩ | |
Coil power at 23℃ | DC(W) | ≤1.5W |
AC(VA) | ≤2.5VA | |
Coil voltage | DC(V) | 6~220V |
AC(V) | 6~380V | |
Pick-up voltage at 23℃ | DC≤75% AC≤80% | |
Release voltage at 23℃ | DC≥10‰ AC≥30% | |
Max voltage at 23℃ | 110% | |
Dielectric Strength | Between Open Contacts | ≥1200VAC 50Hz/1min Leakage current 1mA |
Between Contacts | ≥1500VAC 50Hz/1min Leakage current 1mA | |
Between coil & Contacts | ≥1500VAC 50Hz/1min Leakage current 1mA | |
Insulation Resistance at 500VDC | ≥100MΩ | |
Life | Electrical | 105 Times (Frequency: ON 1time/1s OFF 1time/1s) |
Mechanical | 10 6Times (Frequency: 300times/1min) | |
Ambient Temperature | -25℃ ~ +55℃ | |
Terminal type | Insert type or welding type (Please mark you need) | |
Suitable sockets | LPF083A LPF083A-E LPL08 | |
Unit weight | ≈76G | |
Model reference | JTX | |
Socket for this relay:
10A power relay
200pcs/ctn, 18kg/ctn, 0.033cbm
1. Free samples are available. You only need pay for the freight.
2. We also have many other types relays, please check following:
Anything you concern, please be free to contact us. We will be more than happy to offer any help we can.
